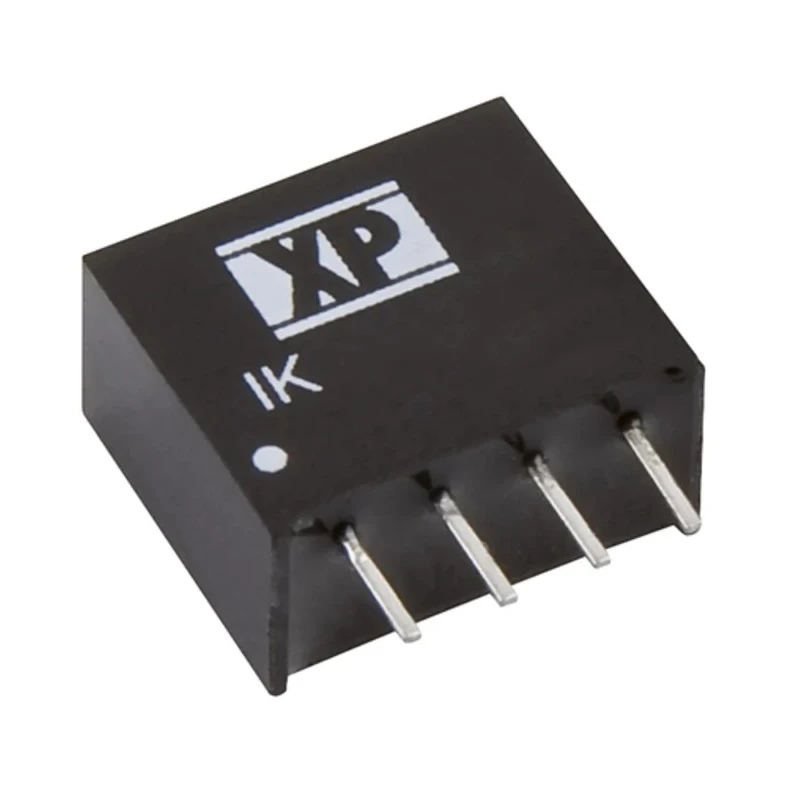

XP Power DC/DC Converter 5V DC Output 600 mA, 9V to 4.5V Input, 0.25W Through Hole IK0505SA
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power IK DC/DC Converter, 5V dc/ 600 mA, 9V Inp |
| Brand | XP Power |
| Efficiency | 66% |
| Length | 11.68mm |
| Model | IK0505SA |
| Depth | 10.15mm |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | IK |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1100000h |
| Number of outputs | 1 |
| Maximum Output Power | 0.25W |
| Maximum Input Voltage | 9V |
| Minimum Input Voltage | 4.5V dc |
| Number of Pins | 7 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 600mA |
| Isolation Voltage | 1kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Isolated DC-DC converter with 1000 VDC isolation for safety.
- Compact SIP package suitable for easy PCB mounting.
- Wide operating temperature range from -40°C to +85°C.
- High reliability with MTBF of 1,100,000 hours.
- 66% efficiency ensures energy-saving operation.
- Single output with 7 pins and SIP packaging.
- Ideal for industrial, control systems, and power supply applications.
- Manufactured in Taiwan, Province of China.
Product Description
XP Power IK0505SA is an isolated DC/DC Converter offering a regulated 5 V DC output at 600 mA current with a maximum power output of 0.25 W. It supports input voltage ranging from 4.5 V dc to 9 V, featuring a 2:1 input ratio. The device is housed in an industry-standard SIP through hole package with 7 pins, making it suitable for PCB mounting in compact spaces.
This converter provides 1000 VDC isolation voltage ensuring electrical safety in sensitive applications. Operating reliably in a wide ambient temperature range from -40 °C to +85 °C, the product is designed for tough industrial and electronic environments.
With an MTBF of 1,100,000 hours and 66% efficiency, it ensures long-term dependable function with energy savings. The compact dimensions of 11.68mm length, 10.15mm depth, and 6mm width contribute to its space-saving design.
This XP Power IK series model is typically used in power supply regulation, industrial controls, instrumentation, and embedded systems where stable isolated power conversion is required. Taiwan-manufactured reliability reflects quality assurance and adherence to standards despite no formal certifications.
Isolated output voltage of 5 V DC at 600 mA. Maximum input voltage of 9 V and minimum input voltage of 4.5 V DC. Through hole mount type with SIP package. 7 pins for secure electrical connections. Supports -40 °C to +85 °C operating temperature.
Efficiency of 66% for optimized power use. Compact size with 11.68mm length and 6mm width footprint. Isolation voltage rating at 1 kV DC. Designed for high reliability with MTBF of 1,100,000 hours. Explore our Electronics & Electricals category for a variety of power conversion and supply solutions from trusted brands including XP Power.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 5 V DC, and it provides a maximum output current of 600 mA.
This converter supports an input voltage range from 4.5 V DC to 9 V DC, with a 2:1 input ratio.
The dimensions of this unit are 11.68 mm in length, 10.15 mm in depth, and 6 mm in width.
It has an isolation voltage rating of 1000 V DC, ensuring electrical safety in sensitive applications.
The efficiency of this DC/DC converter is 66%, which helps optimize power usage.
It operates reliably within a temperature range of -40 °C to +85 °C.
This model features 7 pins for secure electrical connections.
The maximum power output of this unit is 0.25 W.
It uses a through hole mounting type with an industry-standard SIP package.
The MTBF for this converter is 1,100,000 hours, indicating high reliability.
This model is typically used in power supply regulation, industrial controls, instrumentation, and embedded systems.
This converter is manufactured in Taiwan, Province of China.
