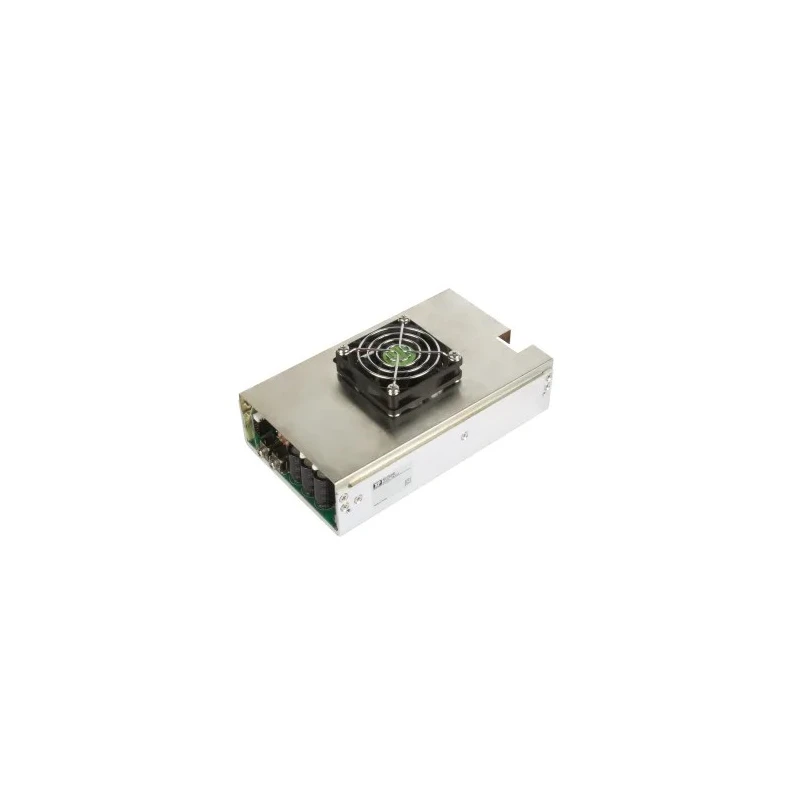

XP Power Switching Power Supply 2 Output 36V DC 500W 264V AC PBL500PS36C

XP Power PBL500PS36C is a high-performance switching power supply providing dual 36V DC outputs with a maximum power output of 500 watts from a 264V AC input source. Designed for critical medical applications, it incorporates BF rated insulation to meet rigorous safety standards. The compact U-channel design measures 4 x 7 x 1.56 inches (approximately 180mm x 107mm x 47mm), providing robust mechanical support and efficient heat dissipation.

This unit delivers 450-500 watts of continuous power when forced air cooled, or 250 watts when cooled by natural convection. It features integrated auxiliary supplies, including a 5V standby and a 12V fan supply, allowing versatile use in various applications. AC OK, inhibit, and remote sense functions provide enhanced control and status monitoring.

Operating efficiently at 90%, the PBL500PS36C accepts an input voltage up to 264V AC and supports a wide operating temperature range of -10°C to 70°C. It adheres to medical safety certifications such as CSA C22.2 No.60601-1, EN 60601-1, IEC 60601-1, and ES 60601-1, ensuring suitability for healthcare environments and related industrial applications.

The power supply’s rugged construction and compliance with medical safety standards make it ideal for use in medical devices, industrial equipment, and laboratory applications requiring reliable and efficient power conversion. The device is built to operate effectively up to altitudes of 5000 meters, suited for harsh and demanding environments.

XP Power backs this product with a comprehensive 3-year warranty, affirming its reliability and quality. Its screw mount design facilitates easy installation within electronic assemblies and systems.

Provides 450-500 watts continuous power with forced air cooling or 250 watts convection cooled. Dual 36V DC outputs accommodate diverse power requirements. Compact U-channel construction gives mechanical support and efficient heat sinking.

Includes 5V standby and 12V fan supply outputs for auxiliary power. Equipped with safety approvals for medical usage (BF rated insulation). High efficiency at 90% reduces operational energy losses. Wide operating temperature range from -10°C to 70°C.

Complies with international medical safety standards. Screw mount design allows easy system integration. Explore more in the Switching Power Supplies category at EnvMart for reliable industrial and medical-grade power solutions.
