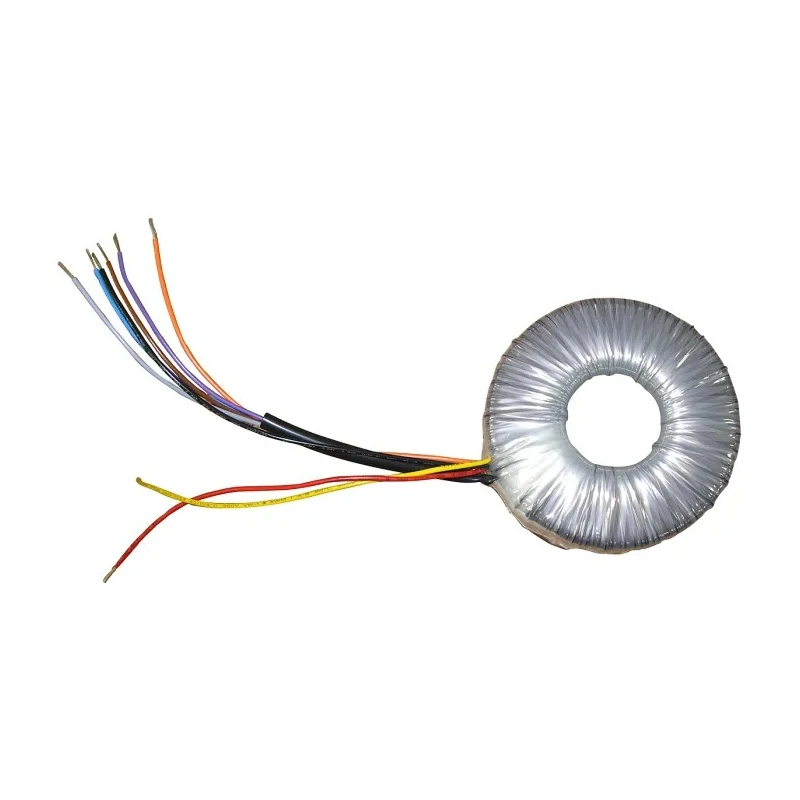

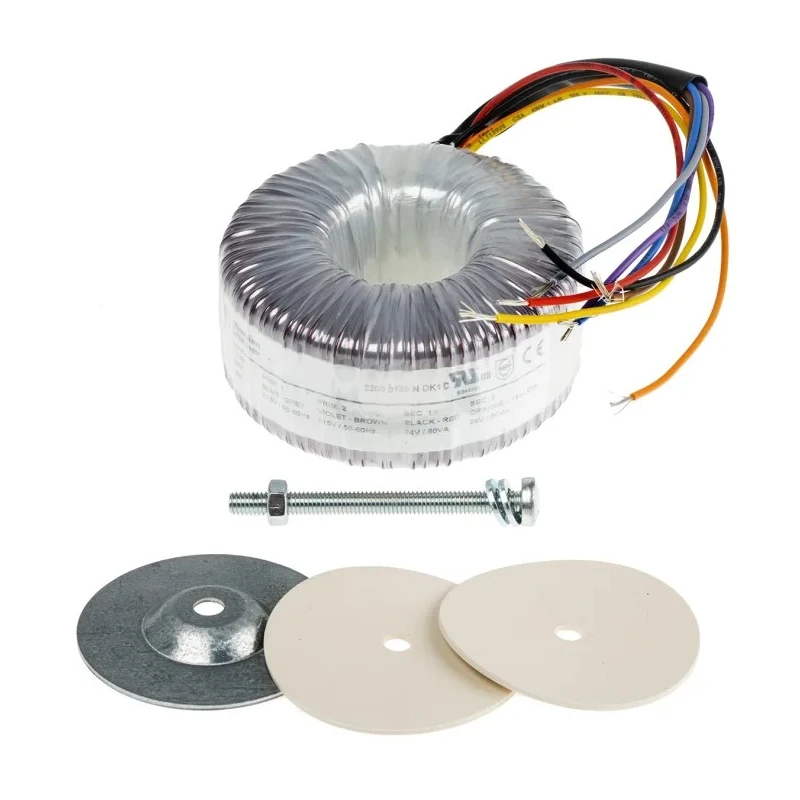

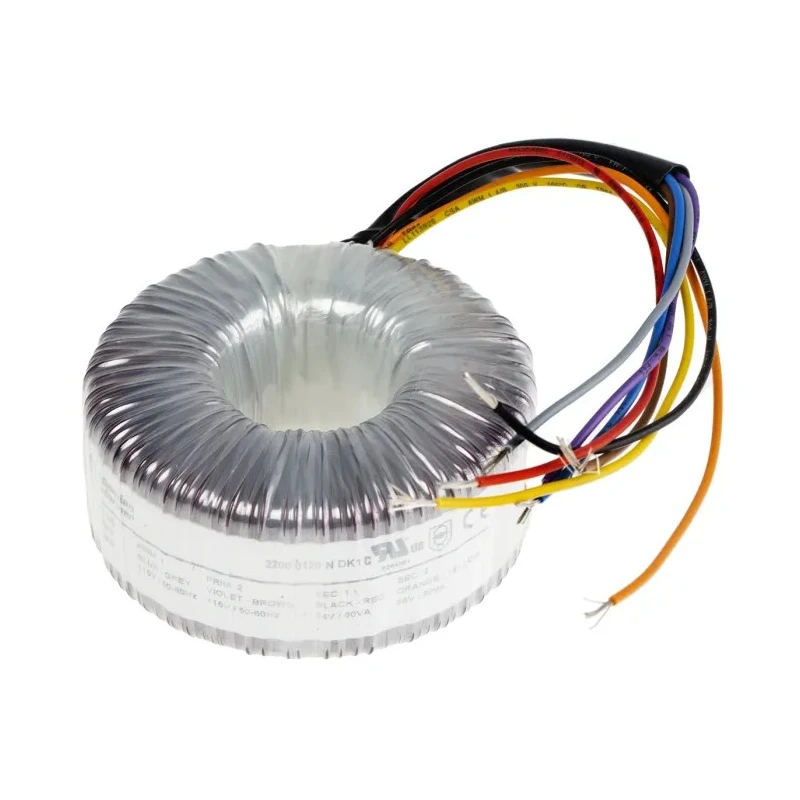

RS PRO Toroidal Transformer Dual Primary 2 x 115 V AC Dual Secondary 2 x 24 V AC 2 Output Surface Mount 120 VA 117-6056

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Toroidal Transformer Dual Primary 2 x 115 V AC Dual Secondary 2 x 24 V AC 2 Output Surface Mount 120 VA 117-6056

Name: RS PRO Toroidal Transformer Dual Primary 2 x 115 V AC Dual Secondary 2 x 24 V AC 2 Output Surface Mount 120 VA 117-6056
Brand: RS PRO
SKU: 390123
Price: 122.38 USD
Availability: InStock



Category Toroidal Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Diameter	172mm
Brand	RS PRO
Height	85mm
Model	117-6056
Gross Weight	8.4kg
Mount Type	Surface Mount
Termination Type	Termination Wire
Maximum Operating Temperature	105°C
Number of outputs	2
Winding Type	Dual Secondary, Dual Primary
Standards/Approvals	IEC 61558-2-6
Primary Voltage	2 x 115 V ac
Secondary Voltage	2 x 24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Constructed with a low loss, low noise toroidal core for efficient transformers performance.
Features dual primary and dual secondary winding configurations allowing series or parallel connection or independent use.
Rated power of 120 VA ideal for various electronic and industrial applications.
Complies with IEC 61558-2-6 safety standards ensuring high reliability and safety.
Designed to operate between 50 Hz and 60 Hz frequency with maximum temperature up to 105°C.
Termination via termination wire facilitates easy installation and wiring.
Compact dimensions with a diameter of 172 mm and height of 85 mm.
Surface mount type suitable for various industrial and laboratory equipment layouts.

Product Description

RS PRO 117-6056 Toroidal Transformer is a high-quality component designed for reliable and efficient power conversion in electronic circuits and industrial environments. Featuring dual primary windings rated at 2 x 115 V AC and dual secondary windings at 2 x 24 V AC, this transformer allows flexible wiring options including series, parallel, or independent outputs.

Crafted with an environmentally friendly toroidal core, it ensures low energy dissipation and reduced electromagnetic interference, making it suitable for sensitive equipment. The 120 VA power rating supports a range of control circuits and general applications requiring stable voltage transformation.

Equipped with termination wire connections and designed for surface mounting, installation is straightforward and adaptable to various device configurations. It operates efficiently within the 50 to 60 Hz frequency range and withstands maximum operating temperatures up to 105°C, ensuring performance stability under demanding conditions.

The transformer measures 172 mm in diameter and 85 mm in height and weighs 8.4 kg, providing a compact and robust solution. Compliance with IEC 61558-2-6 standards guarantees electrical safety and quality assurance, making it an excellent choice for industrial, laboratory, manufacturing, HVAC, and commercial applications.

Dual primary voltage: 2 x 115 V AC. Dual secondary voltage: 2 x 24 V AC output. Power rating: 120 VA. Surface mount type with termination wire. Standard compliance: IEC 61558-2-6. Dimensions: 172 mm diameter, 85 mm height.

Operating frequency: 50-60 Hz. Maximum temperature rating: 105°C. Weight: 8.4 kg. Manufactured in Poland.

This Toroidal Transformer is ideal for electrical engineering projects that demand low noise, high efficiency, and robust construction. It is suitable for use in control circuits, power supplies, and other transformer-based equipment where space-saving and electrical performance are critical.
