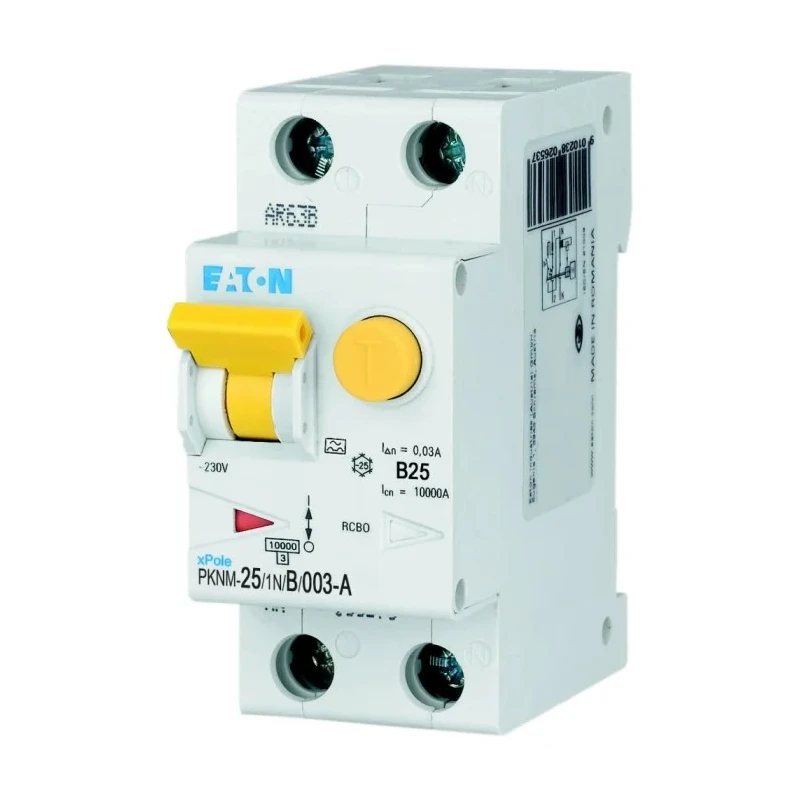

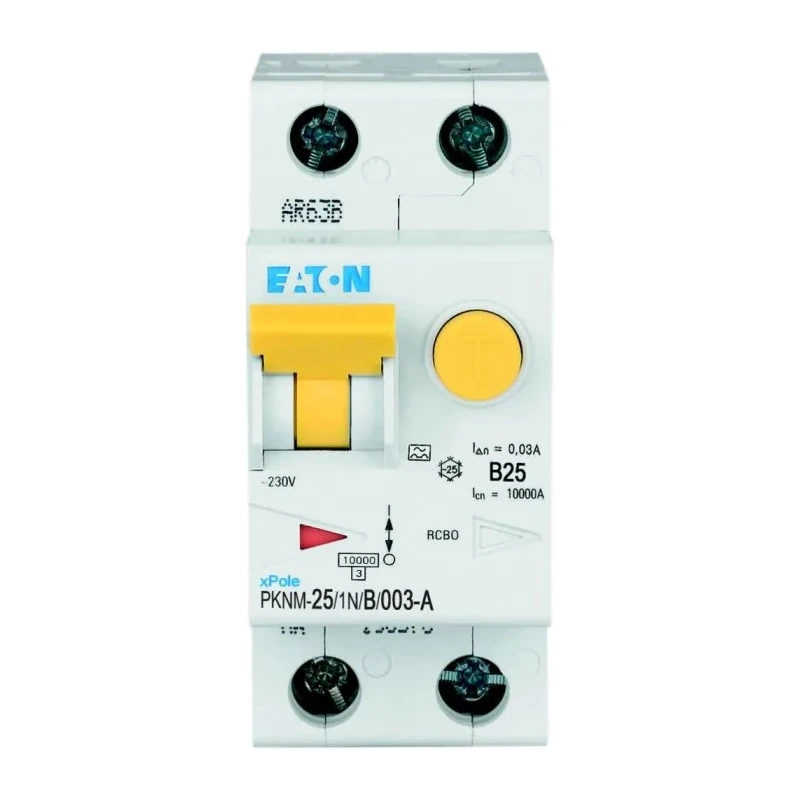

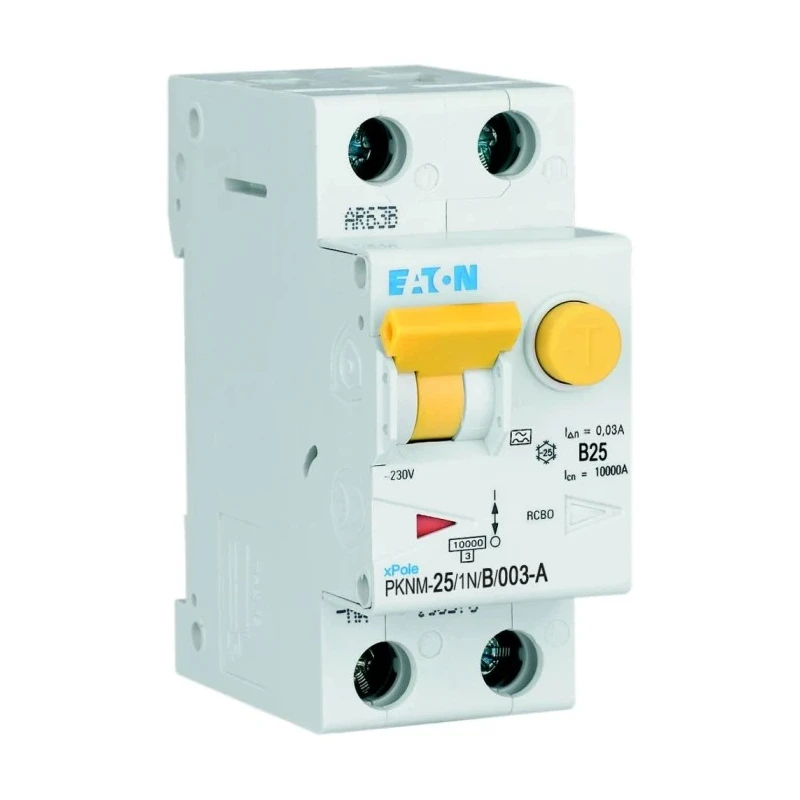

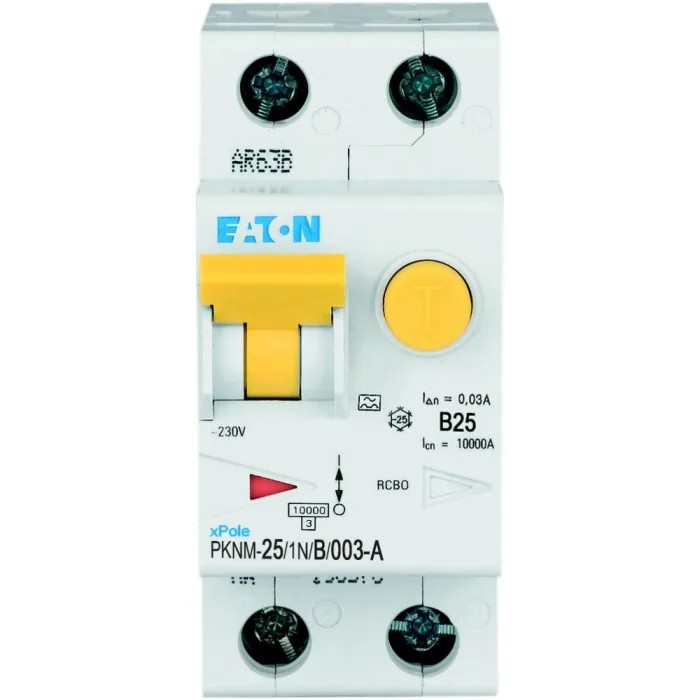

Eaton PKNM Series Residual Current Device, 25A, 2-Pole, Type B Tripping, 30mA Sensitivity, 10kA 236269 PKNM-25/1N/B/003-A-MW

The Eaton 236269 PKNM-25/1N/B/003-A-MW Residual Current Device (RCD) offers advanced protection for electrical installations with a rated current of 25A and a 2-pole configuration suitable for 230V AC systems.

Its Type B tripping characteristic enables detection of both AC and DC residual currents, making it ideal for a wide variety of applications including residential, commercial, electrical engineering, and automation environments. The device features a trip sensitivity of 30mA, which helps prevent electric shocks by disconnecting the circuit when leakage currents are detected.

Designed for quick and reliable operation, the RCD has an instantaneous breaking time and a high breaking capacity of 10kA to safely handle short-circuit conditions. The unit mounts easily on DIN rails using a three-position clip and employs screw terminals to securely fasten wiring, reducing the risk of accidental disconnection.

Featuring a toggle switch for manual reset, this residual current device includes clear green and red indicators to show the status of the contacts. It conforms to international IEC and EN standards (IEC/EN 61439, IEC 60947-2, IEC/EN 61009), ensuring high performance and safety.

With compact dimensions (80mm height, 70mm width, 70.5mm depth), this Eaton RCD fits conveniently into electrical distribution panels. It operates efficiently within a temperature range from -25°C to +40°C, suitable for diverse working conditions.

The device serves an important role in industrial, commercial, and residential power distribution systems by providing earth leakage protection that contributes to workplace safety and compliance with electrical safety regulations.

Rated current of 25A ensures reliable protection for circuits. 2-pole design supports single-phase applications. Type B tripping characteristic suits a broad range of earth leakage currents. Trip sensitivity set at 30mA enhances safety by quickly disconnecting faulty circuits.

Breaking capacity of 10kA handles fault currents effectively. Compact dimensions with 80mm height, 70mm width, and 70.5mm depth allow easy DIN rail mounting. Screw terminals provide secure wiring connections. Electromagnetic tripping mechanism for instantaneous break action.

Toggle switch for manual reset enhances operational ease. Complies with IEC/EN 61439, IEC 60947-2, IEC/EN 61009 standards ensuring high safety and quality. Explore more Residual Current Devices at EnvMart to ensure your electrical systems adhere to the highest safety standards.
