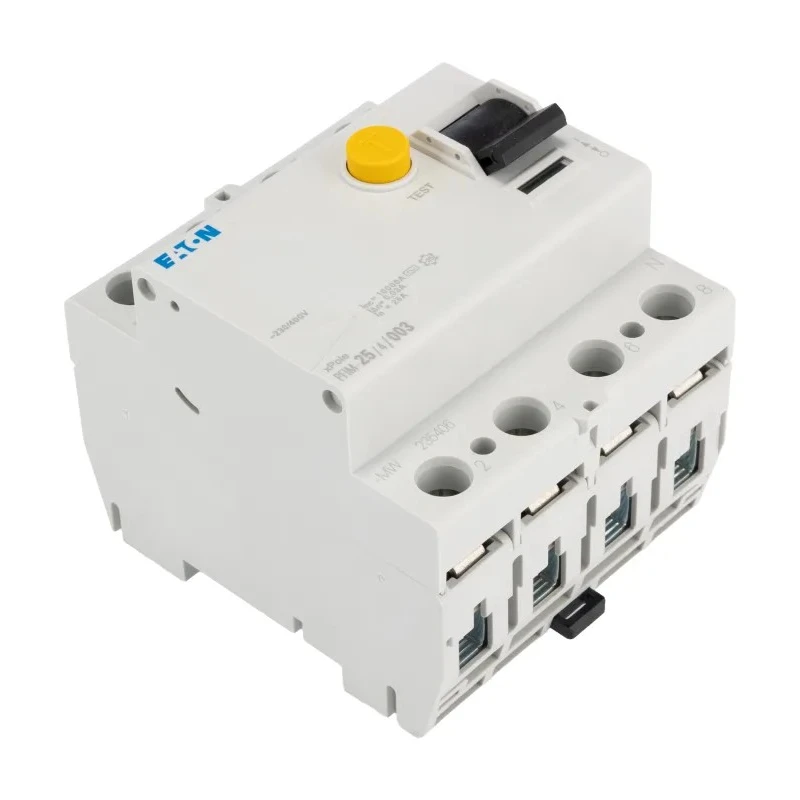

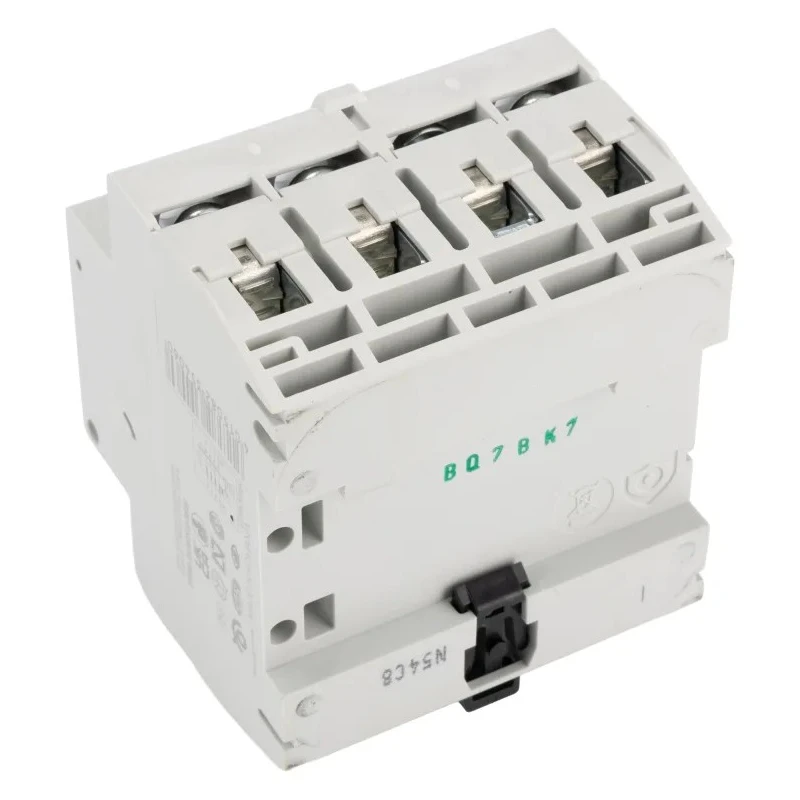

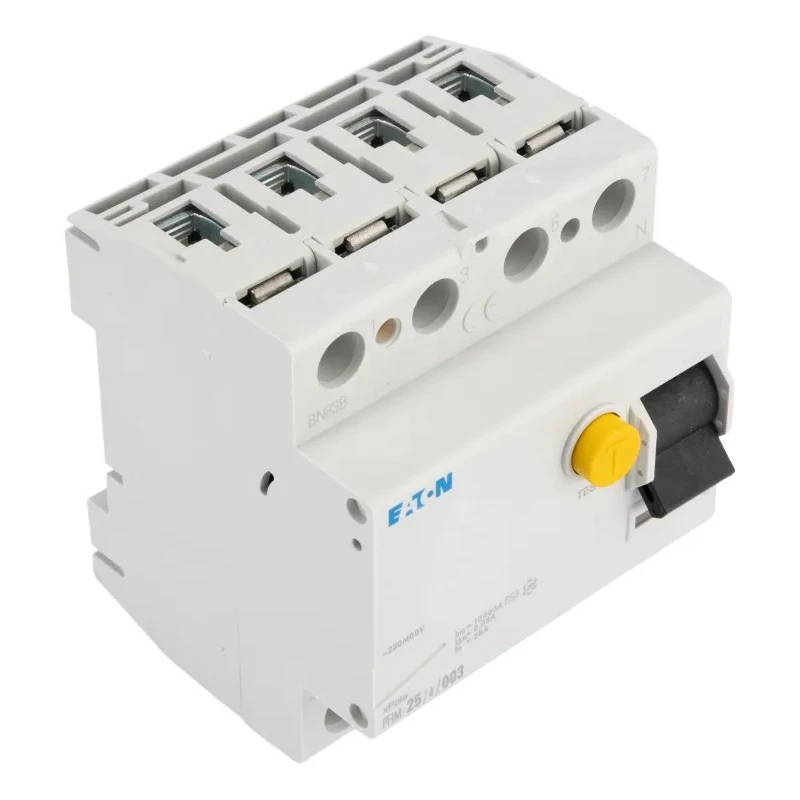

Eaton PFIM Series Residual Current Device, 25A Current Rating, 4 Poles, 30 mA Trip Sensitivity, Type 235406 PFIM-25/4/003-MW

Eaton 235406 PFIM-25/4/003-MW Residual Current Device is engineered for dependable electrical safety in commercial and residential applications. This device features a 25 amp current rating and 4-pole configuration to ensure comprehensive circuit protection.

Constructed to meet IEC/EN 61008 standards, the PFIM Series guarantees compliance with international safety regulations. The RCD incorporates a 30 mA trip sensitivity and instantaneous break time, enabling rapid disconnection during electrical faults and significantly reducing the risk of electric shock or fire.

The compact form factor with dimensions of 70 mm width, 70.5 mm depth, and 80 mm height facilitates easy installation on standard DIN rails with screw terminal contacts providing reliable wiring connections. Its rated breaking capacity of 10 kiloamperes equips it for use in various settings including modern homes, commercial buildings, and industrial automation systems.

The device utilizes an electromagnetic tripping mechanism and features a toggle switch reset actuator for convenient manual control post-trip events. It provides Type AC earth leakage protection ideal for detecting alternating current leakage currents.

Typical applications include modern residential electrical systems, commercial infrastructure requiring safety compliance, circuit protection in automated machinery, and retrofitting in existing electrical panels.

Operating temperature ranges between -25°C to 55°C, with current ratings decreasing progressively beyond 40°C to maintain safety and performance. The device is optimized for DIN rail mounting ensuring straightforward integration into electrical enclosures.

Designed to IEC/EN 61008 safety standards ensuring reliable operation. Features a 30 mA trip sensitivity for sensitive earth leakage detection. Type AC tripping characteristic with instantaneous break time for fast fault response.

Compact dimensions (70 mm width, 70.5 mm depth, 80 mm height) suitable for DIN rail mounting. Includes screw terminal contacts for secure electrical connections. Rated breaking capacity of 10 kA suitable for commercial and residential environments.

Toggle switch reset actuator for easy manual reset. Electromagnetic tripping mechanism enhances device responsiveness. Provides earth leakage protection type AC to prevent electrical hazards.

This product is categorized under Residual Current Devices and is ideal for ensuring electrical safety in various industrial, commercial, residential and automation scenarios. Explore Eaton RCDs and other safety devices at EnvMart for quality and compliance.
