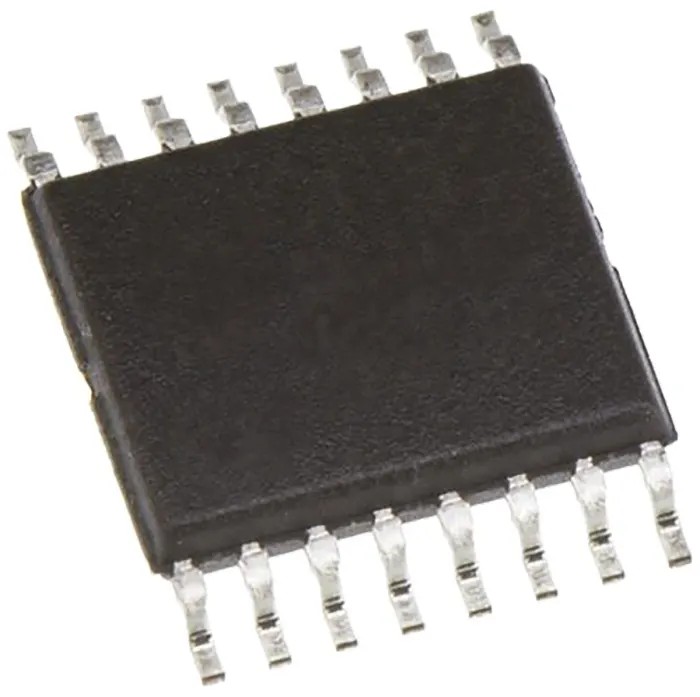

Renesas Electronics Line Transceiver CMOS/TTL Non-Inverting 16-Pin TSSOP ICL3232CVZ-T

Renesas Electronics ICL3232CVZ-T is a high-performance Line Transceiver IC designed with CMOS/TTL technology. It operates in a non-inverting mode and comes in a compact 16-pin TSSOP surface mount package optimized for modern electronic designs requiring efficient RS-232 communication.

This device supports supply voltages from 3 V to 5.5 V, making it suitable for a variety of power environments. The maximum propagation delay time of 0.3 microseconds at a given load capacitance ensures swift data transmission suitable for interfaces requiring up to 1 Mbps data rates.

The single-ended input type and CMOS/TTL compatible output provide versatile interface options in digital communication systems. Operating temperature range from 0°C to 70°C makes it applicable for commercial-grade electronics.

The package measures 5 mm in length, 6.4 mm in width, and 1.2 mm in height, balancing compactness and performance for integration in dense circuit boards. Its supply current of 1 mA makes it power efficient and appropriate for low-power designs.

This line transceiver is ideal for industrial, electronics, communication, and control system applications where reliable RS-232 level shifting and data transmission is needed. Operates at minimum supply voltage of 3 V and maximum supply voltage of 5.5 V.

Provides non-inverting logic function with CMOS/TTL input and output. Features low propagation delay of 0.3 microseconds for effective high-speed communication. Uses a 16-pin surface mount TSSOP package for compact PCB integration.

Suitable for commercial temperature ranges from 0°C to 70°C. Consumes a low supply current of 1 mA which optimizes power consumption. Supports RS-232 line driver and receiver functions for serial communication. Explore the full range of line interface ICs in the Renesas Electronics product catalog on EnvMart for comprehensive industrial and electronics engineering solutions.
