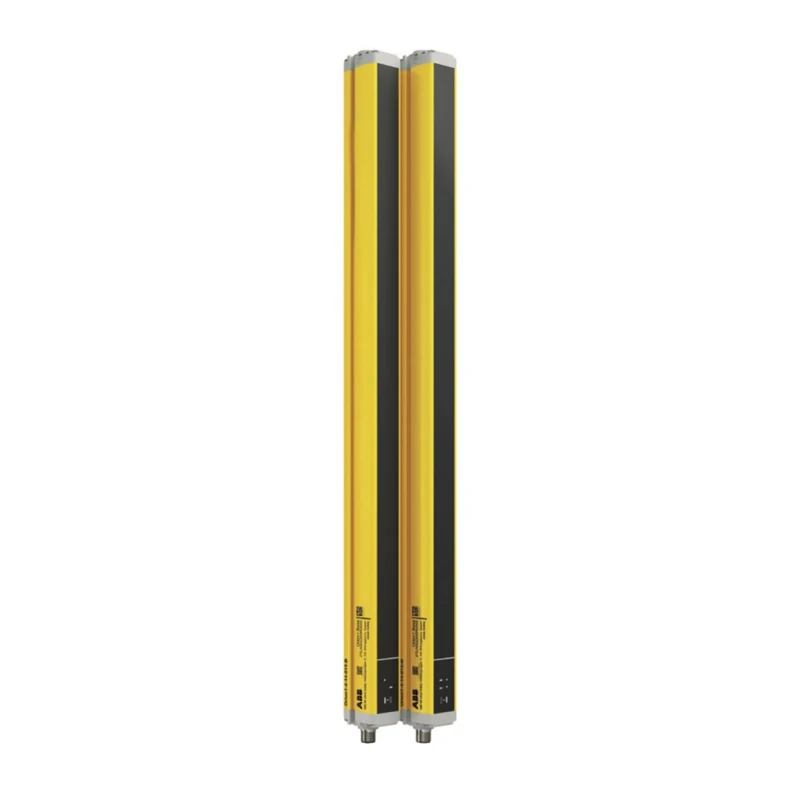

ABB Light Curtain Receiver and Sender 32 Beams 30 mm Resolution Type 4 Safety 24V DC 2TLA022302R0300 Orion1-4-30-060-B

ABB 2TLA022302R0300 Orion1-4-30-060-B is a high-performance light curtain receiver and sender system designed for industrial safety and automation applications. The set features 32 beams with a 30 mm resolution, making it suitable for precise detection of fingers and hands near hazardous machinery. It complies with the stringent Type 4 safety classification, ensuring reliable protection for operators.

The light curtain operates on a 24V DC supply and includes M12 connectors for simplified and secure cabling. Its compact form factor - 37 mm height, 683 mm length, and 32.3 mm width - allows installation close to machinery where space is limited.

The system supports a maximum protective height of 600 mm and can cover widths up to 19 meters, with a scanning distance ranging from 0.2 meters to 19 meters. The fast 14 ms response time ensures timely interruption of machine operation upon detection of an obstruction.

Additional features include a local reset button that can be connected directly to the light curtain, negating the need for additional control modules or cables to the electrical cabinet. Each light curtain monitors actuators internally with external device monitoring (EDM) functionality, simplifying installation and maintenance.

Alignment assistance via rotation brackets and visual indicators helps maintain optimal sensor alignment, reducing downtime and troubleshooting effort. Protective tubes and lens shields enhance durability in challenging industrial environments.

This ABB light curtain set is ideally suited for finger and hand detection tasks near dangerous machinery, repeated access scenarios in manual service operations, and for horizontal area protection in work zones. The inclusion of the receiver and sender ensures comprehensive safety coverage as per the highest standards.

Equipped with 32 beams for precise detection coverage. Provides 30 mm beam resolution for accurate finger and hand detection. Type 4 safety standard compliant ensuring high protection level. Compact dimensions enable easy installation near hazardous machinery.

M12 connector terminals facilitate quick and secure wiring. Maximum protective height of 600 mm and width up to 19 meters. Features quick response time of 14 milliseconds for safety applications. Includes local reset button capability without extra control module wiring.

Suitable for finger and hand detection in industrial automation environments. Robust design with protective tubes and lens shields for harsh conditions.

Engineering professionals in industrial automation, manufacturing, and safety system design will find this ABB Orion1 light curtain solution integral to maintaining productive and compliant operations. Explore more safety equipment and automation products at EnvMart.
