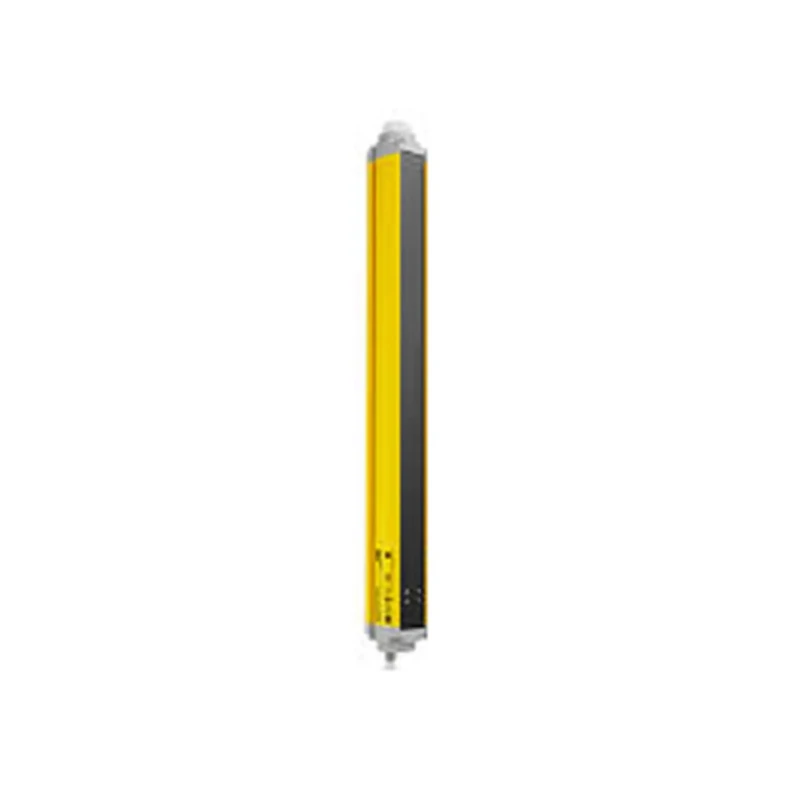

ABB Light Curtain 2 Beams Safety Type 4 Protective Height 500mm Model 2TLA022306R0000 Orion3-4-K1C-050-B

ABB 2TLA022306R0000 Orion3-4-K1C-050-B Light Curtain is a high-quality safety device designed for industrial automation and control applications requiring reliable body detection and perimeter guarding. It features 2 light beams arranged within a protective height of 500mm and a maximum protective width of 65mm. The device offers a minimum scanning distance of 0.5 meters and can operate effectively up to 8 meters.

The Orion3 series integrates both transmitter and receiver into a single active unit, simplifying installation by reducing cabling needs. A passive mirror unit reflects the beams, further minimizing complexity since it requires no electrical connection. The device supports a local reset button connection directly to the light grid without requiring additional cables or control modules.

Alignment is facilitated through visual aids on the unit and rotation brackets, ensuring precise and quick setup to reduce downtime. The light curtain also features external device monitoring (EDM) and muting sensor capabilities in extended models, allowing flexible integration with safety systems.

Engineered with a robust profile, the light curtain withstands harsh industrial environments. It incorporates an 8-Pin M12 terminal for secure and efficient wiring. With a rapid maximum response time of 11 milliseconds, it ensures quick safety interventions during operation.

The ABB Orion3 light curtain meets stringent safety standards including EN ISO 13849-1:2008 PL e Category 4, EN 61508 SIL3, and EN 62061 SIL CL 3, guaranteeing compliance with international safety requirements for industrial machinery and personnel protection.

Combines transmitter and receiver into one active unit for reduced cabling. Local reset button connection without extra wiring or modules. Includes alignment assistance and rotation brackets for ease of installation. Supports muting sensors on extended models for advanced safety operations.

Sturdy design suitable for demanding industrial applications. Response time of 11 milliseconds for rapid safety detection. Certified to multiple international safety standards ensuring reliable protection.

This light curtain is ideal for body detection applications where power is only available on one side and where a robust protective profile is necessary. The device is manufactured in Italy and available with full technical support and documentation.
