SMC Pneumatic Piston Rod Cylinder Aluminium Alloy Body 80 mm Stroke Length Double Acting Basic Mount CP96 Series

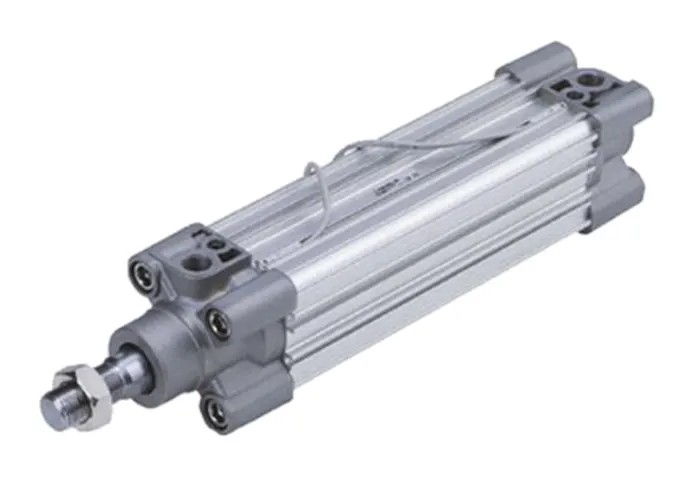

SMC CP96SDB63-80C Pneumatic Piston Rod Cylinder from the CP96 Series features an 80 mm stroke length and aluminium alloy body designed to deliver reliable, controlled linear motion in industrial automation and process equipment. Configured as a double-acting cylinder, it enables bidirectional actuation suitable for push and pull operations.

The cylinder is built to ISO 15552 standards ensuring dimensional compatibility with common pneumatic accessories and port layouts. Its basic mount type allows for straightforward integration through direct chassis attachment, facilitating alignment and stability in machinery assemblies.

Constructed from corrosion-resistant aluminium alloy, the unit benefits from reduced mass and enhanced durability. Integrated air and bumper cushioning systems mitigate end-of-stroke impacts, preserving both cylinder and load integrity during rapid cycles. The single piston rod is a male type featuring an M16 x 1.5 metric thread, simplifying attachment of fittings, sensors, or tooling components.

With a maximum piston speed of 1000 mm/s and rated for operations up to +70°C, this cylinder suits high-speed, warm-environment applications such as automated pick-and-place systems, packaging line stroke controls, press feeding, transfer systems, and fixture positioning in machining cells.

Its double-acting design ensures versatile control for a variety of industrial automation tasks requiring precise linear motion. The product's compliance with recognized ISO standards assures interchangeability and ease of maintenance.

Constructed with lightweight aluminium alloy for corrosion resistance. Double-acting operation supports bidirectional actuation. Basic mount for direct chassis attachment and alignment. Air cushion plus bumper cushioning reduces impact forces.

Male piston rod with M16 x 1.5 metric thread for tooling attachment. ISO 15552 standard compliance enables compatibility with pneumatic components. Supports piston speeds up to 1000 mm/s for fast cycling. Operates effectively at temperatures up to +70°C.

Suitable for pick-and-place automation and packaging stroke control. Explore EnvMart’s extensive range of pneumatic cylinders and actuators to find components precisely matched to your industrial automation and fluid power needs.
