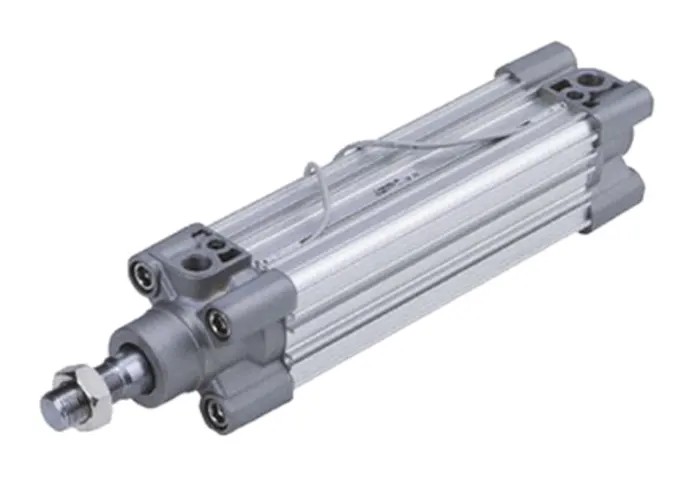

SMC Pneumatic Piston Rod Cylinder CP96 Series Double Acting 200 mm Stroke Basic Mount
Specifications
| Country of Origin | France |
|---|---|
| Brand | SMC |
| Body Material | Die Cast Aluminium, Nitrile Rubber (NBR), Steel, Resin, Carbon Steel, Bearing Alloy, Aluminium Alloy, Urethane |
| Length | 394mm |
| Model | CP96 |
| Mount Type | Basic |
| Series | CP96 |
| Maximum Operating Temperature | +70°C |
| Stroke Length | 200mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | 4414 |
| Cushioning Type | Air Cushion |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M16 x 1.5 |
Key Features
- Constructed with die-cast aluminium and high-quality sealing materials for durability.
- 200 mm stroke length provides precise positioning and repeatability.
- Double acting cylinder supports force transmission in both extension and retraction.
- Basic mount type simplifies installation with standard bracket compatibility.
- Air cushioning and bumper reduce end-impact shock, enhancing service life.
- Rated for maximum piston speed up to 1000 mm/s for fast cycle operations.
- M16 x 1.5 male piston rod thread enables secure mechanical attachments.
- Operating temperature up to +70°C suitable for warm environments.
Product Description
SMC CP96SDB63-200C Pneumatic Piston Rod Cylinder from the CP96 series is a high-quality, double acting actuator designed for precise and repeatable linear motion in industrial automation and fluid power applications.
This pneumatic cylinder features a 200 mm stroke and an overall length of 394 mm, constructed with a robust die-cast aluminium body complemented by materials such as nitrile rubber (NBR) seals, steel, resin, carbon steel, bearing alloy, aluminium alloy, and urethane to ensure durability and reliable operation.
The single male piston rod with metric M16 x 1.5 thread allows secure attachment to tooling or mechanisms. The basic mount type facilitates easy integration using common bracketry, simplifying alignment during installation.
End-of-stroke cushioning is achieved through a combination of air cushioning and bumpers to absorb shock and reduce wear, supporting long service life even under rapid cycle conditions with piston speeds up to 1000 mm/s. The cylinder is rated for operation up to +70°C, making it suitable for a range of industrial environments.
Conformance to ISO 15552 standards ensures dimensional accuracy and interchangeability across pneumatic equipment, providing consistent performance in various manufacturing, assembly line, and material handling applications.
Constructed of die-cast aluminium with durable seals and components. Double acting design for bi-directional motion control. Basic mount type compatible with standard pneumatic brackets. 200 mm stroke length delivers accurate linear travel.
Air and bumper cushioning mitigate shock at travel limits. M16 x 1.5 threaded male piston rod for secure connections. Max piston speed of 1000 mm/s supports rapid cycling. Operating temperature range up to +70°C. ISO 15552 compliant for standardization and interchangeability.
Suitable for machine tool gates, pick-and-place systems, gripper actuation, and press feeding.
SMC pneumatic cylinders are engineered for applications requiring precision, reliability, and durability in industrial automation, manufacturing, and mechanical systems. Browse more pneumatic actuators and complementary equipment at EnvMart to enhance your automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 200 mm, allowing for precise positioning and repeatability in applications.
It is constructed from die-cast aluminium, nitrile rubber (NBR), steel, resin, carbon steel, bearing alloy, aluminium alloy, and urethane for durability.
The maximum operating temperature for this unit is +70°C, making it suitable for warm environments.
This model features air cushioning and bumpers to absorb shock at the ends of the stroke, enhancing service life.
The maximum piston speed is rated up to 1000 mm/s, supporting fast cycle operations.
The piston rod has a metric thread size of M16 x 1.5, allowing for secure mechanical attachments.
The overall length of this cylinder is 394 mm, which is important for installation space considerations.
It uses a basic mount type, which simplifies installation with compatibility for standard brackets.
This pneumatic cylinder conforms to ISO 15552 standards, ensuring dimensional accuracy and interchangeability with other pneumatic equipment.
It is suitable for applications such as machine tool gates, pick-and-place systems, gripper actuation, and press feeding.
This model is a double acting cylinder, allowing for force transmission in both extension and retraction.
The piston rod is of male gender, which is standard for many pneumatic applications.
