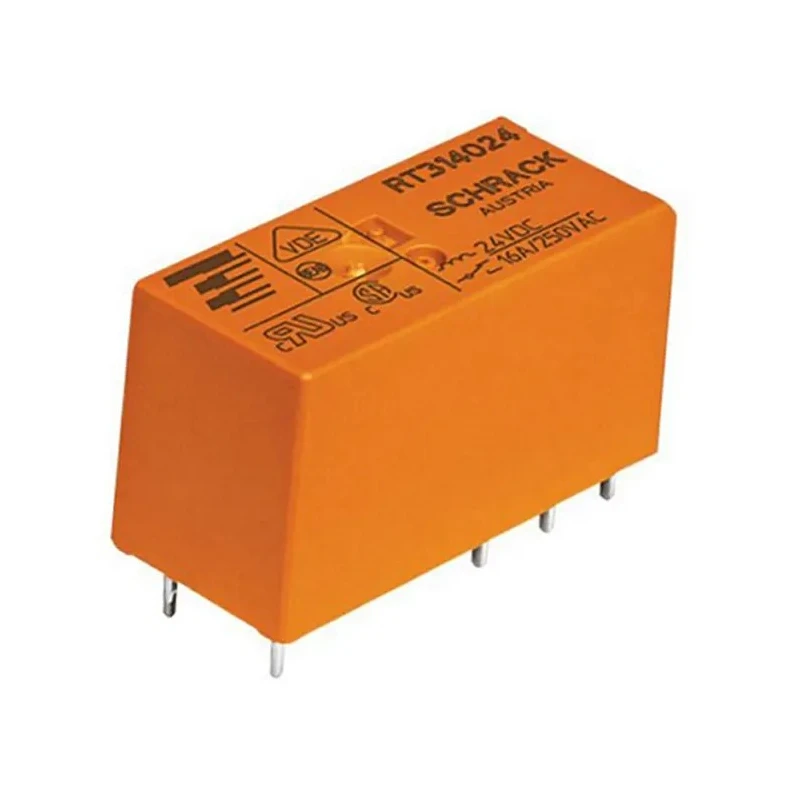

TE Connectivity Power Relay PCB Mount SPST 16A Switching Current 24V DC Coil RT1 Series 2-1393240-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | PCB Pin |
| Standards/Approvals | cULus, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Operates on a coil voltage of 24V DC.
- Configured with Single Pole Single Throw (SPST) contacts.
- Designed for PCB mounting using PCB pins.
- Switching current rated at 16 Amps with switching power up to 4 kVA.
- Utilizes silver alloy contacts for durability and conductivity.
- Coil resistance of 1.4 kilo-ohms with coil power consumption at 400 mW.
- Wide operating temperature range from -40°C to 85°C suitable for harsh environments.
- Certified by standards including cULus and VDE for assured safety and quality.
Product Description
TE Connectivity 2-1393240-4 Power Relay is a high-quality PCB mount relay from the RT1 series designed for industrial and automation applications. Featuring a coil voltage of 24V DC and capable of switching up to 16A current, this SPST contact relay ensures reliable operation within a switching power rating of 4 kVA. Its compact size with dimensions 29mm (L) x 15.7mm (H) x 12.7mm (W) allows efficient PCB integration.
Constructed with silver alloy contacts, the relay offers excellent conductivity and long service life. The coil resistance of 1.4 kΩ ensures efficient energy consumption with coil power rated at 400mW. Designed to operate in temperatures ranging from -40°C up to 85°C, it withstands harsh environmental conditions making it suitable for industrial, automation, HVAC, manufacturing, and battery-powered equipment usage.
The RT1 series relays are bistable/latching types providing a memory function which is critical in applications needing power retention during mains failure. Additional features include reinforced insulation, flux-proof design, and shock resistance up to 100g destructive force ensuring operational robustness.
This relay meets key safety and quality approvals such as cULus and VDE certifications. The mounting style is PCB pin type, facilitating straightforward installation on printed circuit boards in power control and signal conditioning systems.
Reliable 24V DC coil operation with 16A switching current capacity. Compact PCB mount design with robust silver alloy contacts. Wide operating temperature range from -40°C to 85°C. Bistable/latching relay suitable for memory function applications.
Reinforced insulation and flux-proof shock-resistant construction. Certified by cULus and VDE standards for safety and compliance.
This TE Connectivity PCB power relay is ideal for use in industrial automation, electrical equipment, HVAC systems, manufacturing control panels, and battery-powered devices requiring stable and efficient switching. Browse EnvMart's extensive range of Power Relays and TE Connectivity products for reliable electrical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16 Amps, allowing it to handle significant electrical loads effectively.
It operates on a coil voltage of 24V DC, making it suitable for various control applications.
The relay measures 29mm in length, 15.7mm in height, and 12.7mm in width, allowing for efficient PCB integration.
It is configured with Single Pole Single Throw (SPST) contacts, which are common in many switching applications.
The maximum operating temperature is 85°C, which allows it to function in harsh environments.
This relay is certified by cULus and VDE, ensuring compliance with safety and quality standards.
The coil resistance is 1.4 kilo-ohms, which contributes to its efficient energy consumption.
It has a coil power consumption of 400mW, which is relatively low for its operational capacity.
The relay has a switching power rating of up to 4 kVA, making it suitable for various applications.
This unit uses a PCB pin type mounting style, which facilitates straightforward installation on printed circuit boards.
The contacts are made of silver alloy, which provides excellent conductivity and durability.
The relay is manufactured in India, which is relevant for sourcing considerations.
