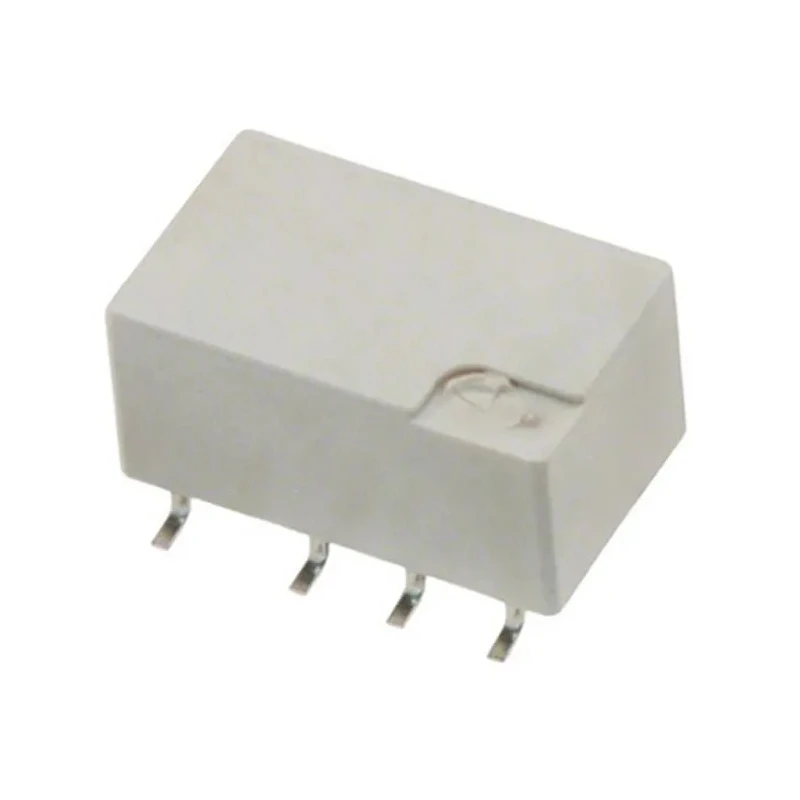

TE Connectivity Surface Mount Signal Relay 3V DC Coil 2A Switching Current DPDT Contacts IM Series 2-1462039-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 180Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 50mW |
| Switching Power | 100mW |
Key Features
- Compact slimline design with dimensions 10mm length, 6mm width, and 5.65mm height.
- Double-pole double-throw (DPDT) contact configuration for versatile switching.
- Gold plated bifurcated contacts ensure reliable conductivity and durability.
- Surface mount type relay suitable for PCB mounting with solder terminals.
- Operating temperature range from -40°C to 85°C supports industrial environments.
- Low coil power consumption of 50mW provides energy efficiency.
- High insulation resistance above 10⁹Ω enhances performance and safety.
- Meets RoHS standards and has high mechanical shock resistance up to 300G functional.
Product Description
TE Connectivity 2-1462039-6 surface mount Signal Relay is a low-profile, high-performance component designed for efficient and reliable switching in demanding industrial and electronic applications. Featuring a 3V DC coil and 2A switching current with a DPDT contact configuration, this relay is part of the IM Series known for its compact size and durability.
With dimensions of 10mm length, 6mm width, and a height of only 5.65mm, it is suitable for tight PCB layouts while maintaining robust mechanical shock resistance up to 300G. The relay employs gold plated bifurcated contacts, ensuring excellent electrical conductivity and long service life.
This surface mount relay supports a wide operating temperature range from -40°C to +85°C, making it ideal for use in telecommunications equipment, optical network terminals, office and test equipment, medical devices, and automotive systems. Its high insulation resistance (>10⁹Ω) and compliance with RoHS standards ensure safety and environmental compliance.
The low coil power consumption of only 50mW contributes to energy efficiency, while the high dielectric surge capability meets Telcordia GR 1089, FCC Part 68, and ITU-T K20,21,45 standards. Terminals are designed for solder mounting, facilitating secure PCB integration.
Compact slimline design with small PCB footprint of 60mm². Excellent mechanical shock and surge resistance for industrial reliability. Wide range of industrial and commercial applications. Hermetically sealed to IP67 standards for environmental protection.
Gold plated contact materials for enhanced durability and electrical performance.
This relay is essential for engineers and technicians requiring reliable, efficient, and compact electromechanical switching solutions. Explore TE Connectivity relays on EnvMart for detailed specifications and to find compatible signal conditioning products for industrial automation and electronics system integrations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 2A.
The relay has dimensions of 10mm in length, 6mm in width, and 5.65mm in height.
It operates with a coil voltage of 3V DC.
The operating temperature range is from -40°C to +85°C.
This relay features a double-pole double-throw (DPDT) contact configuration.
The coil power consumption is 50mW, contributing to its energy efficiency.
It is designed for surface mounting with solder terminals.
The contacts are made from gold plated materials, ensuring reliable conductivity.
This relay meets RoHS standards for environmental compliance.
It has a high insulation resistance greater than 10⁹Ω, enhancing performance and safety.
The maximum switching voltage is 220V DC and 250V AC.
This relay is suitable for telecommunications equipment, optical network terminals, office and test equipment, medical devices, and automotive systems.
