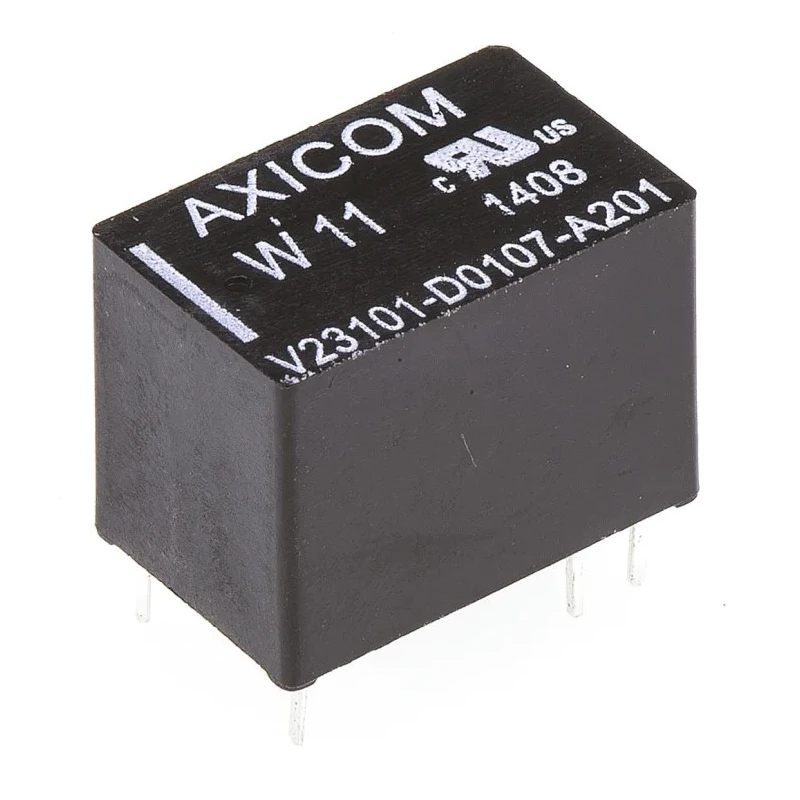

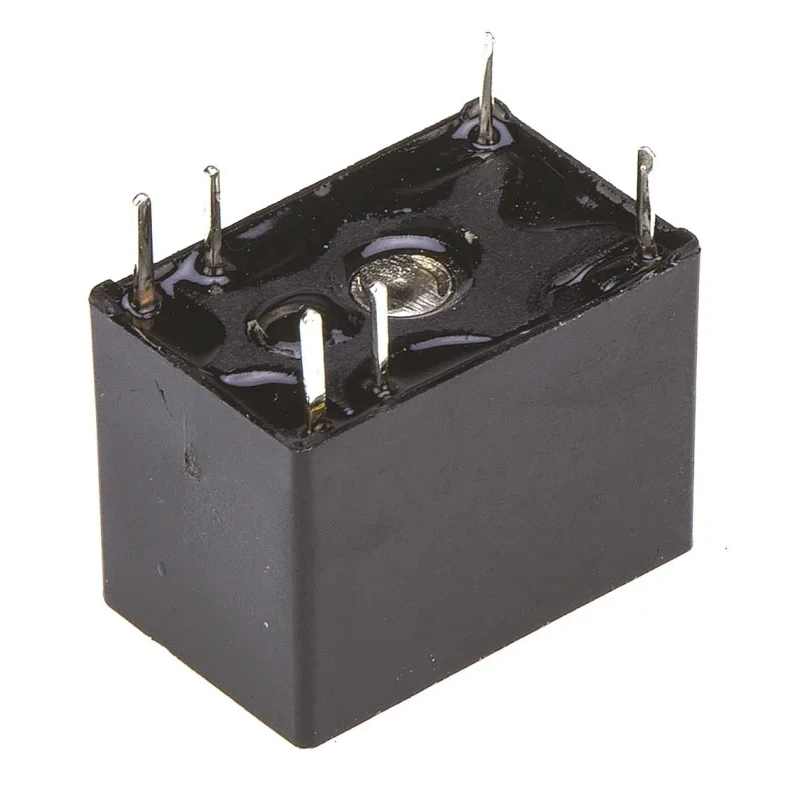

TE Connectivity PCB Signal Relay 24V DC Coil, 1.25A SPST, W11 Series V23101D 107A201
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Dimensions | 11.5mm x 10.5mm x 15.5mm |
| Height | 11.5mm |
| Length | 15.5mm |
| Model | V23101D 107A201 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | W11 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1.25A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 718-1923PBrand: TE ConnectivityManufacturers Part No.: V23101D 107A201 |
| Coil Resistance | 2800Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 120V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 206mW |
| Pin Length | 3.5mm |
Key Features
- Compact relay with 11.5mm x 10.5mm x 15.5mm dimensions suitable for PCB mounting.
- Operates reliably within a temperature range of -40°C to +85°C.
- Energy-efficient coil with 2800Ω resistance and 206mW power consumption.
- Gold-plated contacts provide enhanced conductivity and durability.
- Supports 24V DC coil voltage and switching current of 1.25A with SPST configuration.
- Fully sealed design offers high resistance to shock and vibration.
- Solder terminals ensure secure PCB integration with 3.5mm pin length.
- Manufactured under W11 series, RoHS compliant for safe electronic use.
Product Description
TE Connectivity V23101D 107A201 PCB Signal Relay is a high-quality compact relay designed for signal switching in industrial and electronic applications. Featuring a coil voltage of 24V DC and a switching current rating of 1.25A with SPST contact configuration, it ensures precise and efficient relay operation on printed circuit boards.
The relay’s compact dimensions of 11.5mm height, 10.5mm width, and 15.5mm length along with a pin length of 3.5mm enable seamless PCB mounting and integration. Its coil resistance of 2800Ω and low coil power consumption of 206mW reduce energy consumption while maintaining operational reliability.
Gold-plated contacts provide excellent conductivity and durability, enhancing signal integrity. This relay supports switching voltages up to 24V DC and 125V AC, conforming to the W11 series standards and RoHS compliance, suitable for environmentally conscious designs.
The fully sealed design with high resistance to shock and vibration suits demanding industrial environments such as automation systems, control panels, and machinery signaling. Its operational temperature range from -40°C to +85°C ensures stable performance under extreme temperature conditions.
TE Connectivity’s relay caters to manufacturing, electronics, automation, and industrial equipment applications, offering reliable switching for signal conditioning and control circuits in diverse systems. The solder-type terminals facilitate easy assembly and durable connections.
This PCB Signal Relay enhances control system efficiency with precise switching. Its compact size saves PCB space and supports miniaturization. Robust build quality ensures long service life and reliability. Applicable across industrial automation, electronics, and control panel domains.
Compliance with RoHS standards supports environmental and safety regulations. Browse more TE Connectivity Signal Relays and electronic components on EnvMart for quality and performance in your projects and industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
It supports a maximum switching current of 1.25A.
The dimensions are 11.5mm in height, 10.5mm in width, and 15.5mm in length.
It operates reliably within a temperature range of -40°C to +85°C.
This model features a Single Pole Single Throw (SPST) contact configuration.
The coil resistance is 2800Ω.
It has solder-type terminals with a pin length of 3.5mm for secure PCB integration.
The contacts are made of gold-plated material, enhancing conductivity and durability.
It supports switching voltages up to 120V DC and 125V AC.
Yes, it is RoHS compliant, ensuring it meets environmental and safety regulations.
This relay is part of the W11 series by TE Connectivity.
It is suitable for signal switching in industrial and electronic applications, including automation systems and control panels.
