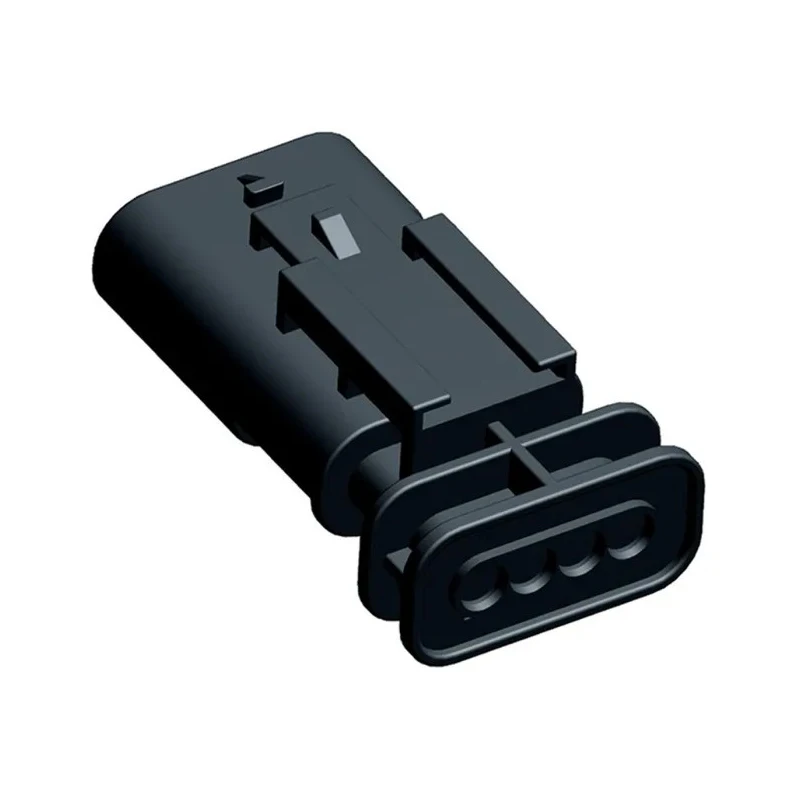

TE Connectivity MCON 1.2 Automotive Connector Male Black Plug-in 4 Way Crimp Termination 1-1564559-1
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 14.8mm |
| Depth | 26.5mm |
| Width | 15mm |
| Gender | Male |
| Mount Type | Plug-in |
| Housing Material | Polyamide |
| Series | MCON 1.2 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 130°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Number of Contacts | 4 |
Key Features
- Designed for automotive wire-to-wire connections exposed to mechanical stress and vibration.
- Features a polyamide housing with a high operating temperature up to 130°C.
- Includes Terminal Position Assurance for secure terminal locking inside the connector.
- Compact dimensions with 26.5mm depth, 15mm width, and 14.8mm height.
- Black plug-in type housing with one row and four male contacts for reliable connection.
- Operating temperature range from -40°C to 130°C supports harsh environmental conditions.
- Provides accurate and secure mating with external latch and keying features.
- Suitable for use with 1.2mm wide locking lance tab contacts (sold separately).
Product Description
TE Connectivity 1-1564559-1 MCON 1.2 Automotive Connector Male is a specialized 4-way crimp termination plug-in connector designed for automotive wire-to-wire applications where vibration and mechanical stress are prevalent.
The housing material is durable polyamide, offering excellent thermal stability with an operating range from -40°C to a maximum of 130°C, making it ideal for demanding automotive environments.
This MCON 1.2mm sealed tab housing is part of the MCON interconnection system tailored for the automotive industry, featuring Terminal Position Assurance mechanisms that ensure terminals remain securely locked within the connector assembly.
The connector dimensions of 26.5mm depth, 15mm width, and 14.8mm height provide a compact form factor suitable for tight spaces. An external latch and keying provide accurate, secure mating with compatible counterparts to prevent misconnection during assembly or operation.
The connector supports a single row of four male contacts and requires the use of 1.2mm wide locking lance tab contacts, which must be purchased separately. This product is manufactured in Hungary, ensuring quality standards are met for automotive electrical connectors.
TE Connectivity’s MCON automotive connectors are widely used in industrial, automotive manufacturing, electrical, and electronic component applications requiring rugged and reliable connections.
Designed for automotive wire-to-wire connections exposed to mechanical stress and vibration. Polyamide housing with high temperature resistance up to 130°C. Terminal Position Assurance ensures secure terminal locking. Compact dimensions: 26.5mm (depth) x 15mm (width) x 14.8mm (height).
Black plug-in housing with four male contacts in one row. Operating temperature range from -40°C to 130°C. Accurate secure mating with external latch and keying. Compatible with 1.2mm locking lance tab contacts (sold separately).
Discover more in the Automotive Connector category at EnvMart for reliable, industry-grade electrical components.
Explore more products in our Automotive Connector Housing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of this connector is from -40°C to 130°C, making it suitable for harsh automotive environments.
This model has compact dimensions of 26.5mm in depth, 15mm in width, and 14.8mm in height.
The connector features four male contacts arranged in a single row.
The housing is made of durable polyamide, which provides excellent thermal stability.
It uses a crimp termination type for secure connections.
Yes, it includes Terminal Position Assurance mechanisms to ensure that terminals remain securely locked within the connector assembly.
It is compatible with 1.2mm wide locking lance tab contacts, which must be purchased separately.
The connector housing is black in color.
This product is manufactured in Hungary, ensuring adherence to quality standards for automotive electrical connectors.
This model utilizes a plug-in mounting type for easy installation.
Yes, it is specifically designed for automotive wire-to-wire connections exposed to mechanical stress and vibration.
This connector is part of the MCON 1.2 series, tailored for automotive interconnections.
