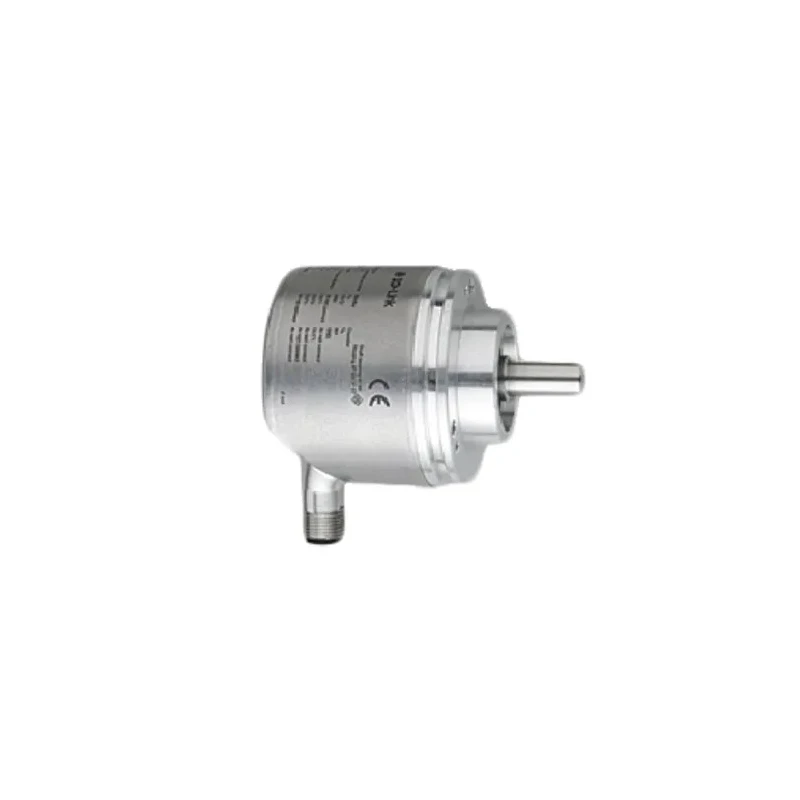

ifm electronic Incremental Encoder RVP510 Series 10 mm Solid Shaft, 10000 PPR, TTL HTL Signal, 30V DC, IP64 RVP510
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | ifm electronic |
| Model | RVP510 |
| IP Rating | IP64 |
| Mount Type | Clamping Flange Mount |
| Series | RVP510 |
| Overall Width | 58.6mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 10mm |
| Overall height | 64mm |
| Switching Frequency | 1MHz |
| Shaft Type | Solid |
| Interface Type | IO-Link |
| Pulses per Revolution | 10000ppr |
| Standards/Approvals | CE |
| Maximum Supply Voltage | 30V dc |
| Overall Depth | 80.2mm |
| Encoder Technology | Incremental |
| Maximum Revolutions | 12000rpm |
| Output Signal Type | TTL, HTL |
| Wide range of accessories also available | software, cable, memory plug, sockets, spring discs, couplings, measuring wheels and brackets |
Key Features
- Supports maximum rotational speed up to 12000 rpm.
- Equipped with IO-Link interface for flexible communication.
- Robust IP64 rated housing ensures protection against dust and water ingress.
- Operates reliably within a temperature range of -40°C to 85°C.
- The clamping flange mount facilitates secure and precise installation.
- Switching frequency of up to 1 MHz enables high-speed signal detection.
- Constructed with a magnetic detection system offering programmable resolution from 1 to 9999 pulses.
- Comes with a wide range of compatible accessories, including software, cables, memory plugs, sockets, spring discs, couplings, measuring wheels, and brackets.
Product Description
ifm electronic RVP510 Incremental Encoder is a robust sensor designed for precise motion control applications in industrial automation. This encoder features a solid 10 mm shaft and delivers high-resolution feedback with 10000 pulses per revolution, suitable for machinery requiring detailed position and speed monitoring.
Powered by a maximum supply voltage of 30V DC, it supports an IO-Link interface that enhances communication capabilities within automated systems. The device operates reliably across a wide temperature range from -40°C up to 85°C and is protected by an IP64 rated enclosure that shields electronics from dust and splashing water, making it suitable for challenging industrial environments.
The encoder’s clamping flange mount type allows for secure installation, minimizing mechanical play. With a switching frequency of 1 MHz and maximum rotational speed rating of 12000 rpm, it is suitable for high-speed rotational measurement tasks.
Utilizing a magnetic detection system, the RVP510 series encoders offer programmable resolutions from 1 up to 9999 pulses per revolution, allowing customization based on specific application requirements. The solid shaft and sturdy build quality ensure durability and long-term stability in demanding conditions.
A comprehensive selection of accessories is available to complement the encoder system, including software for configuration, various cables, memory plugs, sockets, spring discs, couplings, measuring wheels, and mounting brackets, enabling flexible integration options.
This product is manufactured in Poland and conforms to CE standards, ensuring compliance with European safety and quality guidelines. It is ideal for use in industries such as manufacturing, automation, robotics, and motion control where accurate position feedback is critical.
Explore ifm electronic products in the Motion Control Sensors category on EnvMart to find the ideal components for your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum rotational speed of this model is 12000 rpm.
It provides TTL and HTL output signals.
This encoder has an IP64 rating, ensuring protection against dust and splashing water.
It operates with a maximum supply voltage of 30V DC.
The operating temperature range is from -40°C to 85°C.
It features a clamping flange mount for secure installation.
This encoder delivers 10000 pulses per revolution.
A wide range of accessories is available, including software, cables, memory plugs, sockets, spring discs, couplings, measuring wheels, and brackets.
The switching frequency is up to 1 MHz, allowing for high-speed signal detection.
It utilizes incremental encoder technology with a magnetic detection system.
This product is manufactured in Poland.
It conforms to CE standards, ensuring compliance with European safety and quality guidelines.
