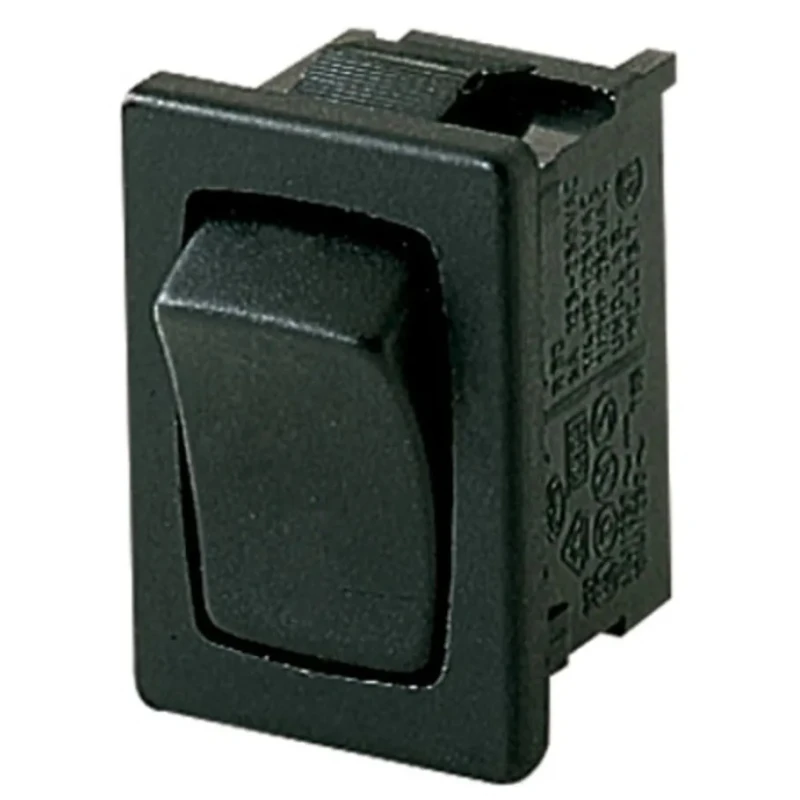

Marquardt SPDT On-On On-(On) Rocker Switch Panel Polyamide Housing 19.8x12.9mm 10A 28V DC 250V AC 1803.6222

Free Delivery in India | Lowest Global Shipping Charges

Marquardt SPDT On-On On-(On) Rocker Switch Panel Polyamide Housing 19.8x12.9mm 10A 28V DC 250V AC 1803.6222

Name: Marquardt SPDT On-On On-(On) Rocker Switch Panel Polyamide Housing 19.8x12.9mm 10A 28V DC 250V AC 1803.6222
Brand: Marquardt
SKU: 387145
Price: 280.37 INR
Availability: InStock



Category Rocker Switch Brand Marquardt Condition New

Specifications

Country of Origin	Tunisia
Brand	Marquardt
IP Rating	IP40
Mount Type	Panel
Housing Material	Polyamide
Series	1800
Maximum Operating Temperature	100°C
Contact Configuration	SPDT
Switch Configuration	On-(On)
Minimum Operating Temperature	-20°C
Panel Cutout Size	19.8 x 12.9 mm
Terminal type	Solder
Standards/Approvals	UL, VDE, RoHS, CSA, CE, BS
Switch Operation	On-On
Actuator Colour	Black
Contact DC Voltage	28V dc
Actuator Style	Rectangular
Switch Contact Current	10A
Mechanical Life	100000Operations
Contact AC Voltage	250V ac

Key Features

The switch supports a contact current rating of 10 amperes.
Designed for 28V DC and 250V AC contact voltages.
Black rectangular actuator with panel mount and solder terminals.
Rated IP40 for protection against solid objects.
Operates reliably between -20°C and 100°C.
Complies with UL, VDE, RoHS, CSA, CE, and BS standards.
Mechanical life exceeds 100,000 operations.
Non-illuminated actuator suitable for various industrial uses.

Product Description

Marquardt 1803.6222 is a single pole double throw (SPDT) rocker switch panel designed for robust industrial and electrical applications. Featuring an On-On On-(On) switch configuration, it facilitates flexible control options for devices requiring multiple circuit operations.

Constructed with a polyamide housing, the switch offers physical durability and a panel cutout size of 19.8 by 12.9 millimeters. The black rectangular actuator enables ergonomic operation while solder-type terminals ensure secure electrical connections.

This rocker switch supports a contact current rating of 10 amperes suitable for AC and DC voltages up to 250 volts AC and 28 volts DC respectively. An IP40 ingress protection rating provides basic protection against solid objects, making it ideal for indoor industrial environments.

Operating temperature ranges from -20°C to 100°C, guaranteeing performance across various climatic conditions. Compliance with international standards including UL, VDE, RoHS, CSA, CE, and BS underlines its quality and safety credentials.

The mechanical life of 100,000 operations ensures long-lasting reliability in demanding factory automation, electrical panels, and machinery control applications. Manufactured in Tunisia, the Marquardt 1800 series is known for its versatility, including options of illuminated and non-illuminated versions, various actuator colors, and multiple switching formats.

The switch current rating supports high inrush currents, making it suitable for capacitive loads. Panel mounting with fixing ribs provides a tight and secure fit in panels with thickness from 0.75 to 3 mm. Its non-illuminated actuator reduces complexity and is ideal for industrial control systems that require simple manual switching without indication lights.

The rocker switch is especially suited for electrical, automation, and control system integration in commercial and industrial settings. Its compact form factor allows for versatile installation in varied equipment housings and control panels.
