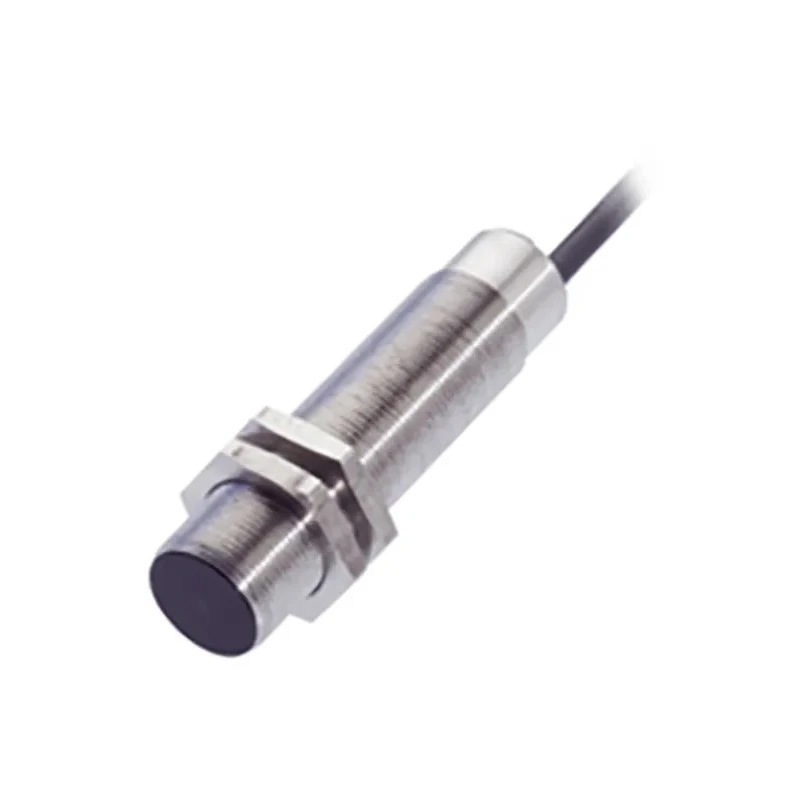

BALLUFF Threaded Barrel Capacitive Proximity Sensor M18 8 mm, Stainless Steel 30V 100mA PNP Output BCS M18B4N1-PSC80D-EP02
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | BALLUFF |
| Length | 75.5mm |
| Model | BCS M18B4N1-PSC80D-EP02 |
| IP Rating | IP67 |
| Mount Type | Flush |
| Housing Material | Stainless Steel |
| Output type | PNP |
| Series | M18 |
| Maximum Operating Temperature | 85°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 100Hz |
| Standards/Approvals | CE, cULus Listed |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 8mm |
Key Features
- Constructed with stainless steel housing for durability and harsh environments.
- Flush mount type allows easy and secure installation.
- Pre-cabled terminal type ensures convenient wiring.
- Operates accurately between -25°C and 85°C temperature range.
- Protected to IP67 standard for dust and water resistance.
- PNP output with a switching current of 100mA and maximum switching frequency of 100Hz.
- CE and cULus approved for international compliance and safety standards.
- Shielded design reduces interference from external sources.
Product Description
BALLUFF BCS M18B4N1-PSC80D-EP02 is a Threaded Barrel Capacitive Proximity Sensor designed for high precision object detection and level monitoring in industrial automation applications.
Featuring an M18 x 1 threaded stainless steel housing, this sensor provides an 8 mm sensing distance with a flush mounting style to ensure secure and flexible installation options. Its durable stainless steel body offers excellent resistance against mechanical wear and harsh environmental conditions.
The sensor operates reliably across a temperature range from -25°C to 85°C and is rated IP67 for protection from dust and water ingress, making it suitable for use in demanding manufacturing, laboratory, and commercial environments.
Equipped with a PNP output type, a switching current capacity of 100mA, and a maximum switching frequency of 100Hz, the sensor supports fast and robust signal switching. Its shielded design minimizes the effects of external electrical interference, ensuring consistent performance.
The BCS Capacitive Proximity Sensors effectively detect stack heights, object presence, and content levels in diverse materials such as glass, plastic, and paper packages. They are unaffected by dust, surface reflections, or material texture, enabling reliable level detection even through non-metallic barriers.
Stainless steel housing for enhanced durability in industrial settings. Flush mount configuration suitable for compact and secure fittings. Pre-cabled terminal simplifies installation and maintenance. IP67 rating ensures robust protection against water and dust exposure.
Wide operating temperature range supports diverse industrial conditions. Compliant with CE and cULus safety and quality standards. Suitable for precise object and level detection in automation systems. Outputs PNP signals with fast switching capability up to 100Hz.
Shielded sensor design for reduced electrical noise sensitivity.
This sensor originates from Hungary and is manufactured under strict quality standards, making it a dependable choice for automation, manufacturing, HVAC, and laboratory instrumentation.
Explore our comprehensive range of sensors at EnvMart for industrial and automation solutions designed to meet diverse technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 8 mm.
It operates reliably between -25°C and 85°C.
This sensor features a PNP output type.
It has an IP67 rating, providing protection against dust and water ingress.
The maximum switching frequency is 100 Hz.
It can detect materials such as glass, plastic, and paper packages.
The housing is constructed from stainless steel, enhancing its durability in industrial settings.
This model features a flush mount configuration for secure installation.
The switching current capacity is 100 mA.
It utilizes a pre-cabled terminal type for convenient wiring.
It is CE and cULus approved for international compliance and safety standards.
The length of this model is 75.5 mm.
