Schneider Electric Harmony XVR Series Blue Beacon-Buzzer Combination 24V DC 90 dB @ 1m IP23 XVR3B06S

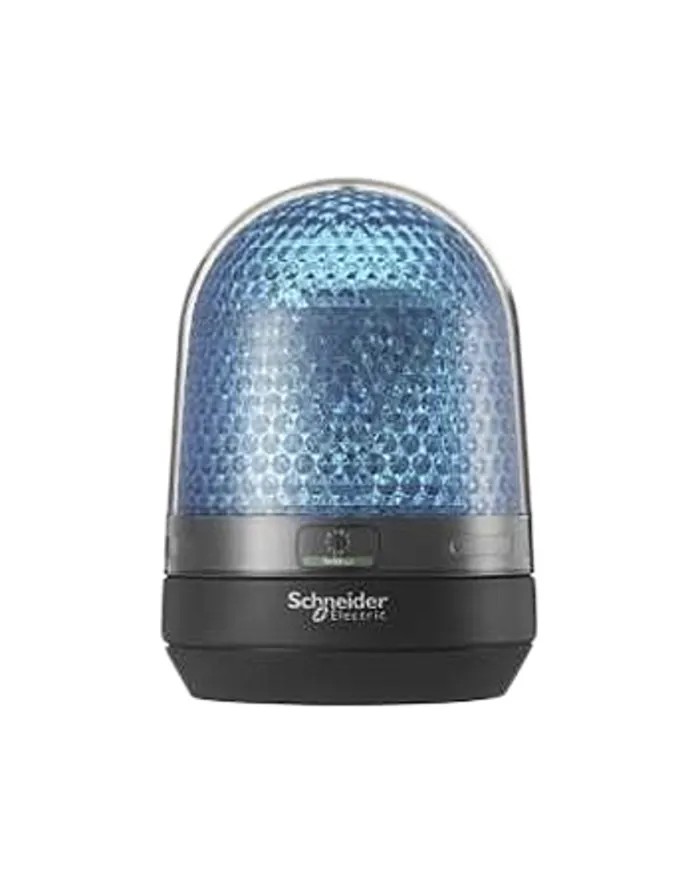

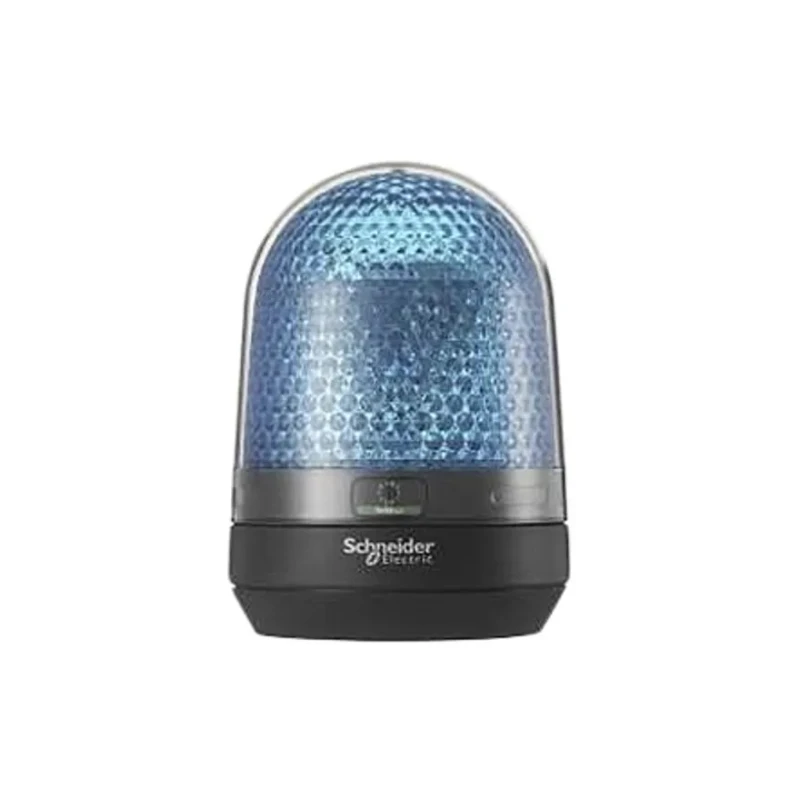

Schneider Electric XVR3B06S Harmony XVR Series beacon-buzzer combination integrates visual and audible signaling into one compact device suitable for industrial, construction, and public environments. Operating at 24V DC with IP23 protection, it ensures reliable signaling through a motor-less LED beacon and adjustable buzzer system producing up to 90 dB sound at 1 meter.

The device features a faceted blue lens designed to maximize light projection and attract attention efficiently. Its motor-less LED technology reduces maintenance and extends service life compared to traditional motorized beacons.

The beacon supports 10 distinct lighting modes including flashing, rotating, and blinking customizable effects, controlled via a light mode selector for versatile signaling. Installation is simplified with an upright mount panel design and flexible wiring options allowing both straight and side wiring without the need for additional tools.

The buzzer’s sound level is adjustable from 70 dB to 90 dB, providing audible alerts that complement the visual signals. Constructed with a durable polycarbonate housing, the unit offers high vibration resistance rated at 7.1G, ensuring performance stability in harsh industrial conditions.

Operating temperature ranges from -20°C to 70°C enable deployment in diverse environments. Standards compliance includes CE certification and RoHS environmental compliance, underlining its quality and safety adherence.

Connection is made via 400 mm flying leads using 0.57 mm² wire terminals for secure and effective electrical contacts.

This combination is ideal for industrial automation systems, factory signaling, construction site alerts, and other commercial areas requiring clear visual and audible notifications.

Features multi-functional LED beacon with buzzer for factory and public area signaling. Motor-less LED technology ensures longer life and maintenance-free operation. Offers 10 lighting modes including rotating, blinking, and flashing LED effects.

Adjustable buzzer volume from 70 dB to 90 dB ensures effective audible alert. Compact upright panel mount design facilitates easy installation and wiring. Faceted blue lens enhances lighting area with unique aesthetic design.

Polycarbonate housing delivers high vibration resistance and durability. Wide operating temperature range from -20°C to 70°C suits diverse environments. Certified RoHS compliant with CE certification for safety and environmental standards.

Connection via 400 mm flying leads with 0.57 mm² cross-section wire terminals. Discover our broad range of industrial automation products and beacons at EnvMart for reliable signalling solutions.
