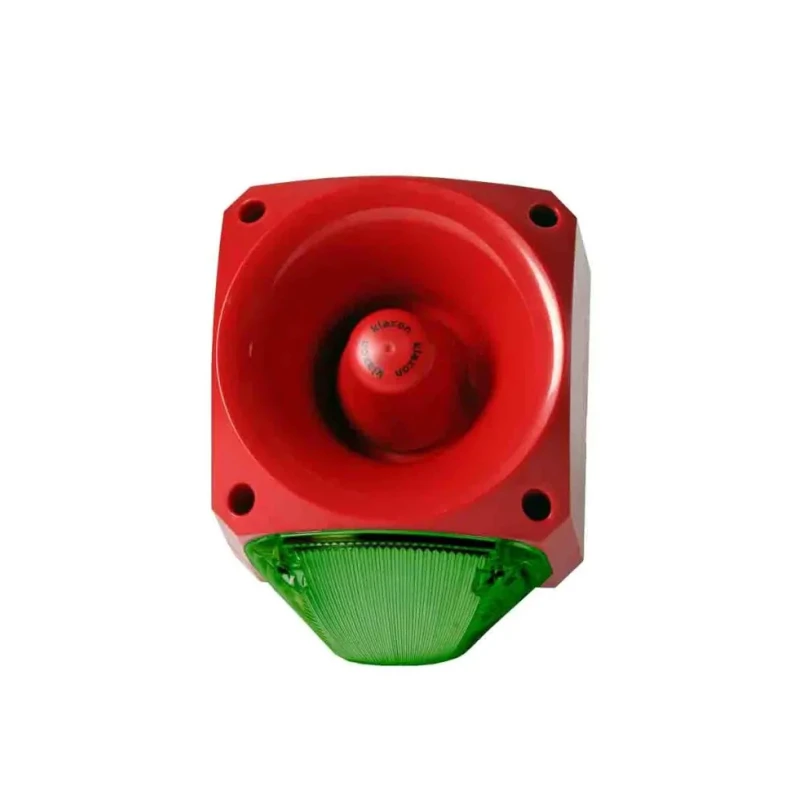

Klaxon Nexus 105 Series Green Sounder-Beacon Combination, IP66 60V Surface Mount 113 dB @ 1m High Output
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Klaxon |
| Model | IP66 |
| IP Rating | IP66 |
| Mount Type | Surface |
| Bulb Type | LED Beacon |
| Series | Nexus 105 |
| Maximum Operating Temperature | 70°C |
| Current Type | DC |
| Current consumption | 40mA |
| Minimum Operating Temperature | -25°C |
| Lens Colour | Green |
| Standards/Approvals | EN54-3 Type |
| Maximum Supply Voltage | 60V |
| Housing Colour | Red |
| Light Effect | Static/Flashing Mode (LED Only) |
| Minimum Sound Level | -20dB |
| Sounder Type | High Output |
| Sound Level at 1m | 113dB |
| Maximum Sound Level | 113dB |
| Number of Tones | 64 |
| High sound output | 113dB (max), 105dB (typical) |
Key Features
- Features a high sound output of 113 dB (maximum) and 105 dB typical for clear alert signals.
- Includes a green LED beacon with static and flashing modes to enhance visual signalling.
- Designed for surface mounting with quarter-turn fasteners for easy installation.
- Operates within a temperature range of -25°C to 70°C for versatile environments.
- Supports 64 selectable tones and volume control from -20 dB for flexible signalling.
- Provides separate connections for sounder and beacon for customizable operation.
- Utilizes low in-rush current technology for efficient power consumption.
- Complies with EN54-3 Type standards, ensuring quality and reliability.
Product Description
Klaxon PNC-0046 Nexus 105 Series Green Sounder-Beacon Combination delivers reliable high output acoustic and visual alarm signalling suited for demanding industrial environments.
This sounder-beacon operates at 60V DC and features an IP66 rating, providing dust-tight and water-resistant protection, ideal for surface mounting applications. The combination includes a green LED beacon with selectable static or flashing modes, enabling clear visual alerts alongside the powerful sound output rated up to 113 dB at 1 meter.
The device supports 64 distinct tones selectable through simple adjustments and offers volume control to tailor sound levels down to -20 dB, maximizing flexibility in signalling for fire alarms, conveyors, process controls, cranes, machinery, marine, and other industrial settings.
Robust construction with a red housing and green lens ensures high visibility and durability within a wide operating temperature range from -25°C to 70°C. Installation is facilitated by quarter turn fasteners and a first-fix wire-to-base technology promoting ease of setup and maintenance.
The PNC-0046 complies with EN54-3 Type standards and is designed to maintain low in-rush currents especially with LED beacon technology, enhancing energy efficiency and longevity. High sound output: 113 dB max at 1 meter for effective audible alerts.
Green LED beacon with static and flashing modes for versatile visual alerting. 64 tone options and adjustable volume control for tailored signalling. IP66 rated enclosure suitable for harsh industrial environments. Wide temperature operation range from -25°C to 70°C.
Surface mount design with quarter turn fasteners for quick installation and maintenance. Separate sounder and beacon connections for customizable alarm configurations. Compliance with EN54-3 Type standards ensures trusted safety performance.
This Klaxon sounder beacon is perfect for use in industrial, manufacturing, HVAC, process control, construction, and marine environments requiring high reliability and clear alarm signalling.
