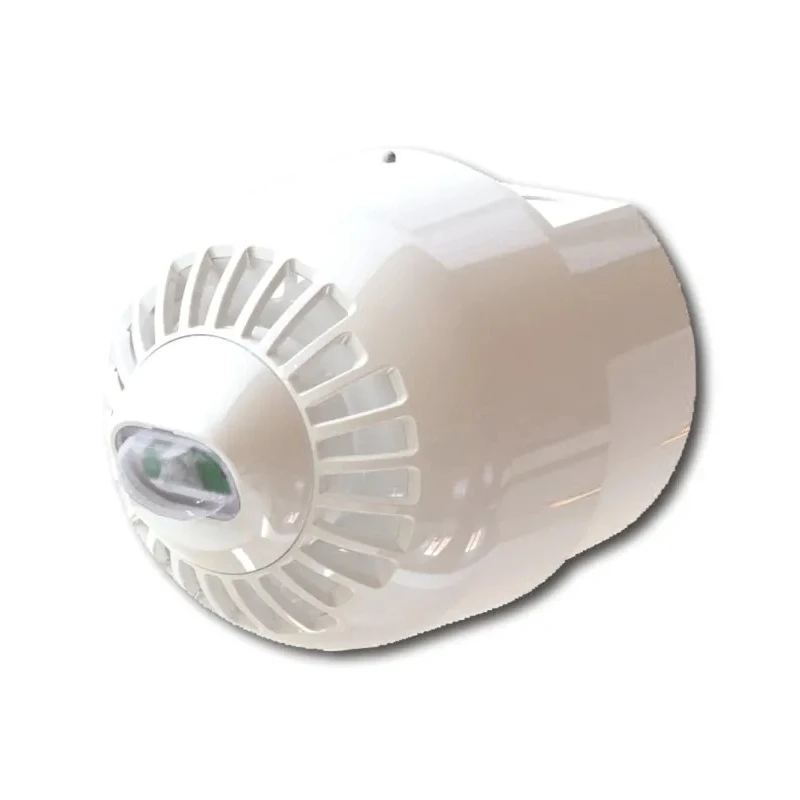

Klaxon Sonos Pulse Series White Sounder-Beacon Combination IP21 IP65 60V DC Ceiling Wall Mount 97 dB Electronic ESC-5002
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Klaxon |
| Model | ESC-5002 |
| IP Rating | IP21, IP65 |
| Gross Weight | 0.24kg (shallow base) 0.29kg (deep base) |
| Mount Type | Ceiling, Wall |
| Housing Material | Polycarbonate |
| Bulb Type | LED |
| Series | Sonos Pulse |
| Maximum Operating Temperature | 70°C |
| Current Type | DC |
| Current consumption | 25mA |
| Minimum Operating Temperature | -10°C |
| Cable Entries | Deep Base: 2 x 20mm cable glands |
| Lens Colour | White |
| Standards/Approvals | EN 54-23, EN 54-3 |
| Sound Output | 97dB(A) at 1 metre |
| Maximum Supply Voltage | 60V dc |
| Housing Colour | White |
| Light Effect | Flashing |
| Minimum Sound Level | 94dB |
| Sounder Type | Electronic |
| Sound Level at 1m | 97dB |
| Maximum Sound Level | 97dB |
| White flash | EN54-23 coverage W-3.1-11.3 |
| Red flash | EN54-23 coverage W-2.4-7.5 |
| Shallow base | Ø100 x 100 mm high |
| Deep base | Ø122 x 97.5 mm high |
Key Features
- Equipped with patented Pulse Alert Technology to optimize power consumption.
- White polycarbonate housing with LED flashing white lens for visual signaling.
- Operates on 60V DC with a current consumption of 25 mA.
- Suitable for harsh environments with IP21 shallow base and IP65 deep base protection.
- Provides synchronized flash to protect people sensitive to photosensitive epilepsy.
- Conforms to EN 54-23 and EN 54-3 standards for alarm signaling.
- Simple wire-to-base installation with no surge current on startup.
- Temperature range from -10°C to 70°C for versatile industrial use.
Product Description
Klaxon ESC-5002 Sounder-Beacon Combination is a high-performance Visual Alarm Device (VADS) designed for industrial and commercial safety signaling applications. It delivers a sound output of 97 dB(A) at 1 metre and incorporates Pulse Alert Technology to enhance system efficiency by minimizing power consumption. The device features a white polycarbonate housing with a flashing white LED lens providing effective visual alarm signals.
This sounder-beacon is compatible with both ceiling and wall mounting, offering IP21 ingress protection for the shallow base and IP65 for the deep base, making it suitable for indoor and semi-exposed environments. The 60V DC operation and low current consumption of 25 mA enable energy-efficient use across various safety systems.
The synchronized flash functionality is designed to be safe for individuals prone to photosensitive epilepsy. Installation is straightforward with a wire-to-base system, eliminating surge currents during startup and protecting sensitive electronics. The device complies with EN 54-23 and EN 54-3 standards, ensuring quality and reliability in industrial alarm signaling.
The product operates reliably across a temperature range of -10°C to 70°C, making it applicable for diverse environments including commercial buildings, factories, hotels, and machine shops. Its compact size and polycarbonate construction ensure durability and flame retardance.
Patented Pulse Alert Technology for reduced power consumption. 97 dB sound output at 1 metre for effective audible signaling. White LED flashing lens within a flame retardant polycarbonate housing. IP21 and IP65 protection ratings providing weatherproofing options.
Synchronized flash avoids adverse effects on photosensitive individuals. Compliance with EN 54-23 and EN 54-3 standards for fire alarm systems. Mountable on ceilings or walls to suit installation constraints. Operating temperature range ensures wide application suitability.
Klaxon’s Sonos Pulse Series ESC-5002 is ideal for installation in industrial, commercial, and institutional safety alarm systems requiring robust and energy-efficient visual and audible alerts. Browse EnvMart for more advanced alarm signaling solutions from Klaxon and related brands.
