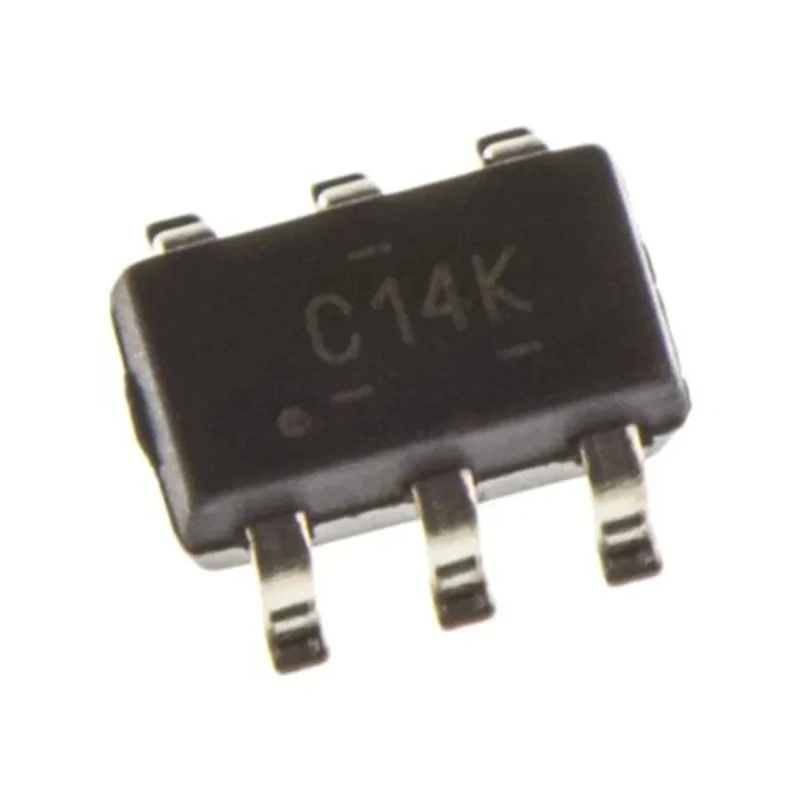

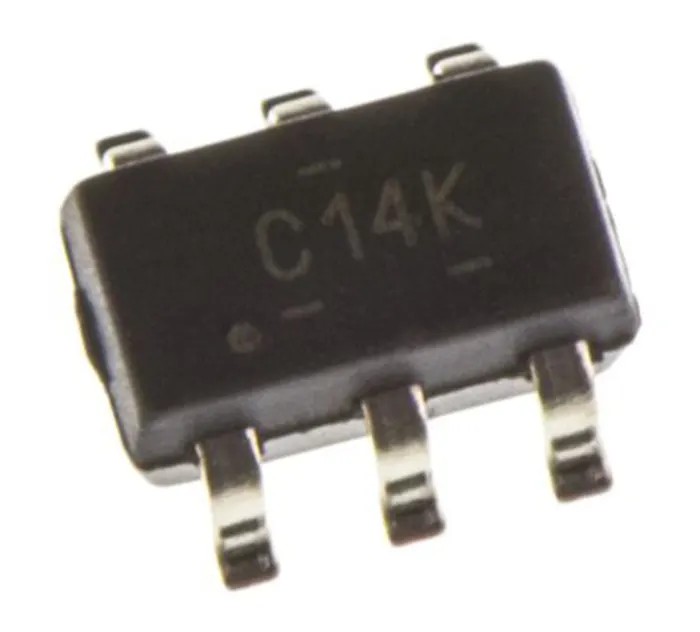

Texas Instruments 6-Pin Surface Mount Watchdog Timer SOT-23 TPL5110DDCT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1mm |
| Length | 3.05mm |
| Model | TPL5110DDCT |
| Mount Type | Surface |
| Series | TPL5110 |
| Maximum Operating Temperature | 105°C |
| Package Type | SOT-23 |
| Sub Type | Watchdog |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| Number of Internal Timers | 1 |
Key Features
- Operates within a voltage range of 1.8V to 5.5V for versatile DC supply applications.
- Includes one internal timer for precise timing control.
- Supports operating temperatures from -40°C to 105°C for robust performance.
- Packaged in a compact SOT-23 form factor measuring 3.05mm in length and 1mm in height.
- Provides enhanced system reliability by monitoring and resetting systems on malfunction.
- Surface mount type ensures easy PCB integration for automated assembly.
- Suitable for embedded systems, industrial electronics, and battery-powered applications.
- Complies with RoHS standards indicating lead-free materials.
Product Description
Texas Instruments TPL5110DDCT is a 6-pin watchdog timer designed for surface mount applications in the SOT-23 package. With a supply voltage operating range from 1.8V to 5.5V, this device offers a compact and efficient solution for system monitoring and power management.
It contains one internal timer that provides precise timing control ensuring systems reset during fault conditions, thereby preventing system lockups and enhancing reliability. The compact dimensions of 3.05mm length and 1mm height in a SOT-23 package allow for space-efficient PCB layouts, making it ideal for embedded and portable applications.
Operating temperature range from -40°C up to 105°C makes the TPL5110DDCT suitable for demanding industrial and automotive environments. This watchdog timer is surface mount type, allowing automated soldering on printed circuit boards for high-volume manufacturing.
Operates from 1.8V to 5.5V supply voltage. Single internal timer for watchdog functionality. Compact SOT-23 package dimensions: 3.05mm x 1mm. Wide operating temperature range of -40°C to 105°C. Surface mount package suitable for automated PCB assembly.
Improves reliability of embedded and industrial electronic systems. Lead-free and RoHS compliant for environmental safety.
This product is widely used in electronic and industrial markets for timing and monitoring functions that require robust and compact solutions. It caters particularly to applications involving power management and protection in embedded devices, automotive electronics, and consumer electronics.
Browse the Electronics Components category in EnvMart for more Texas Instruments ICs and Watchdog Timer solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TPL5110DDCT operates within a supply voltage range of 1.8V to 5.5V.
This model has a maximum operating temperature of 105°C.
The SOT-23 package measures 3.05mm in length and 1mm in height.
It includes one internal timer for precise timing control.
The minimum operating temperature for the TPL5110DDCT is -40°C.
Yes, it is a surface mount type, making it suitable for automated soldering on printed circuit boards.
This watchdog timer is suitable for embedded systems, industrial electronics, and battery-powered applications.
It complies with RoHS standards, indicating that it is made from lead-free materials.
The TPL5110DDCT has a pin count of 6.
This model uses a surface mount type for easy integration into PCBs.
It belongs to the TPL5110 series of watchdog timers.
The country of origin for the TPL5110DDCT is India.
