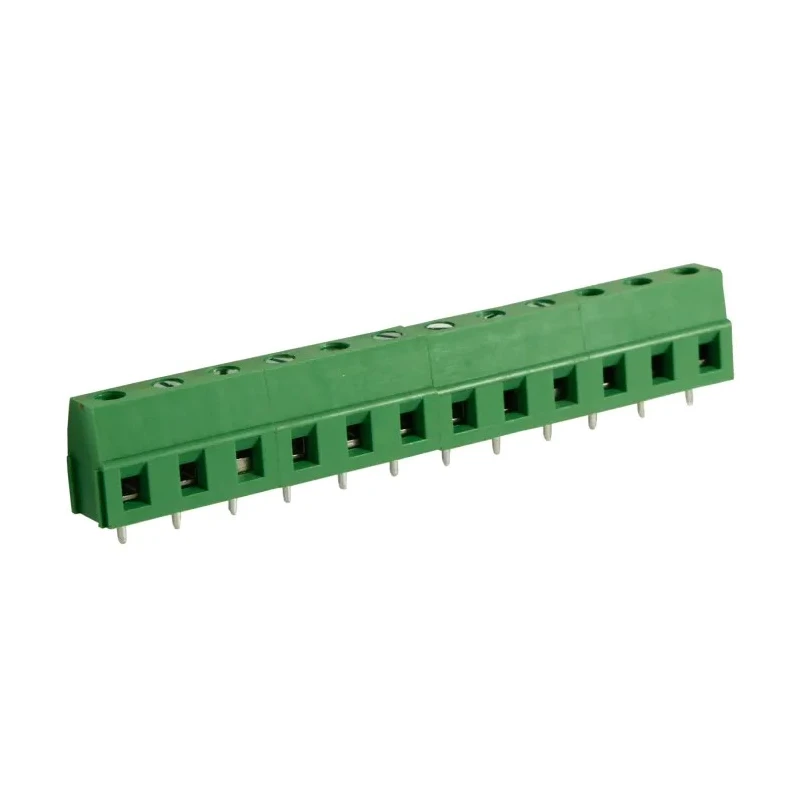

RS PRO PCB Terminal Block, 12-Contact, 7.5 mm Pitch, 1 Row, Polyamide Housing, 10A, 300V 897-0954
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Colour | Green |
| Orientation | Straight |
| Current | 10A |
| Length | 90mm |
| Model | 897-0954 |
| Depth | 14.3mm |
| Width | 10.3mm |
| Housing Material | Polyamide |
| Series | RS PRO |
| Number of Rows | 1 |
| Pitch | 7.5mm |
| Number of Contacts | 12 |
| Minimum Wire Size mm² | 0.33mm² |
| Maximum Wire Size mm² | 3.3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 22AWG |
| Wire Connection Method | Screw |
Key Features
- Features a polyamide housing for excellent durability and flame retardance.
- Supports current rating up to 10 amps and voltage up to 300 volts.
- Wire connection is secured by screw clamps compatible with wire sizes 0.33 mm² to 3.3 mm² (22 to 12 AWG).
- Compact dimensions with a length of 90 mm, width of 10.3 mm, and depth of 14.3 mm.
- Designed with a straight orientation and double interlocking mechanism for enhanced mechanical stability.
- Includes M2.5 nickel-plated stainless steel captive screws for reliable fastening.
- Green color coded housing conforms to UL94-V0 flame retardant standards.
- Suitable for mounting on PCBs in industrial, automation, electronic, and power distribution applications.
Product Description
RS PRO 897-0954 PCB Terminal Block is a high-quality, 12-contact connector with a 7.5 mm pitch in a single row configuration. It features a durable polyamide housing that is flame retardant to UL94-V0 standards. The terminal block is engineered for efficient wire clamping using screw terminals, supporting wire gauges from 22 AWG to 12 AWG (0.33 mm² to 3.3 mm²).
This PCB terminal block supports a nominal current of 10 amps and voltage rating of 300 volts, making it suitable for a wide range of electronic applications including power connectors and signal distribution. Its compact footprint of 90 mm length, 10.3 mm width, and 14.3 mm depth allows integration into tight PCB layouts. The straight orientation and end stackable design feature a double interlocking mechanism, providing enhanced mechanical robustness and alignment.
The product includes nickel-plated stainless steel captive screws (M2.5) which ensure secure electrical and mechanical connections. The green polyamide housing is resistant to heat and mechanical stress, suitable for industrial electronics, automation systems, and power devices.
This terminal block is manufactured under the RS PRO series and is made in China. It does not carry specific standards or approvals but maintains high-quality manufacturing practices consistent with RS PRO brand components.
Polyamide housing ensures durability and flame resistance. Supports wire gauge from 22 AWG to 12 AWG with screw clamp connection. 10A current rating and 300V voltage rating for reliable performance. Compact size suitable for PCB mounting and industrial applications.
Includes nickel-plated stainless steel captive screws for secure connection. Green housing color for easy identification and UL94-V0 flame retardant compliance. Double interlocking mechanism for increased mechanical stability.
Designed for use in electronics, automation systems, and power connectors. Explore the full range of Pluggable Terminal Blocks and RS PRO components on EnvMart for your electronic assembly and industrial connectivity needs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a nominal current of 10 amps and a voltage rating of 300 volts.
It accommodates wire sizes from 0.33 mm² to 3.3 mm², or 22 AWG to 12 AWG, using screw clamps for secure connections.
The terminal block has a length of 90 mm, width of 10.3 mm, and depth of 14.3 mm.
The housing is made of polyamide, which provides durability and flame retardance.
It features 12 contacts in a single row configuration.
The pitch of this model is 7.5 mm, allowing for compact PCB layouts.
It uses a screw connection method for securing wire connections, enhancing reliability.
The terminal block is designed with a straight orientation, which aids in alignment during installation.
It includes M2.5 nickel-plated stainless steel captive screws for secure fastening.
The green housing conforms to UL94-V0 flame retardant standards, ensuring safety in applications.
This model is manufactured in China, adhering to high-quality manufacturing practices.
