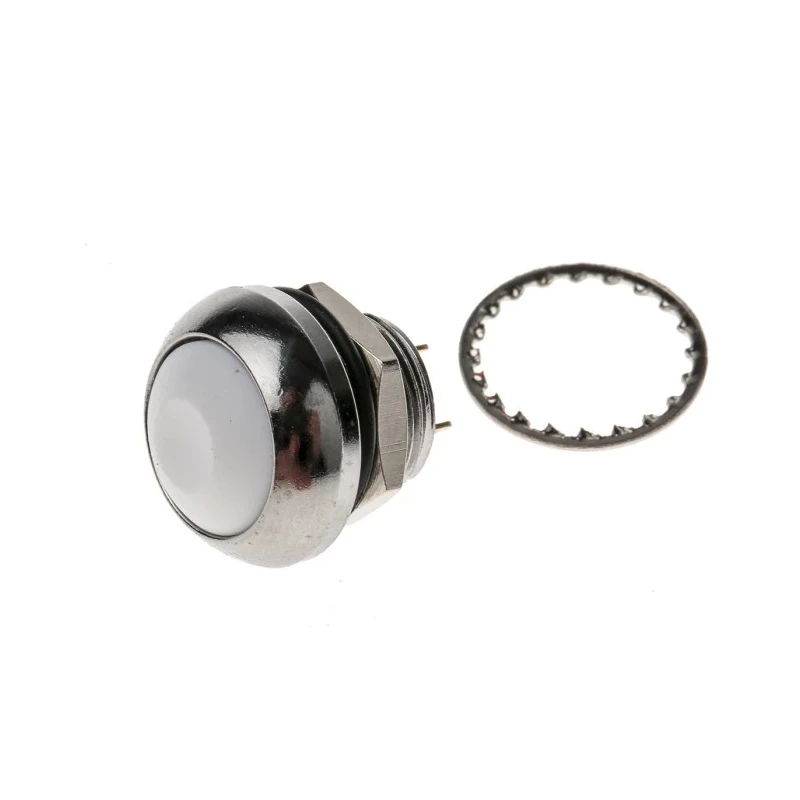

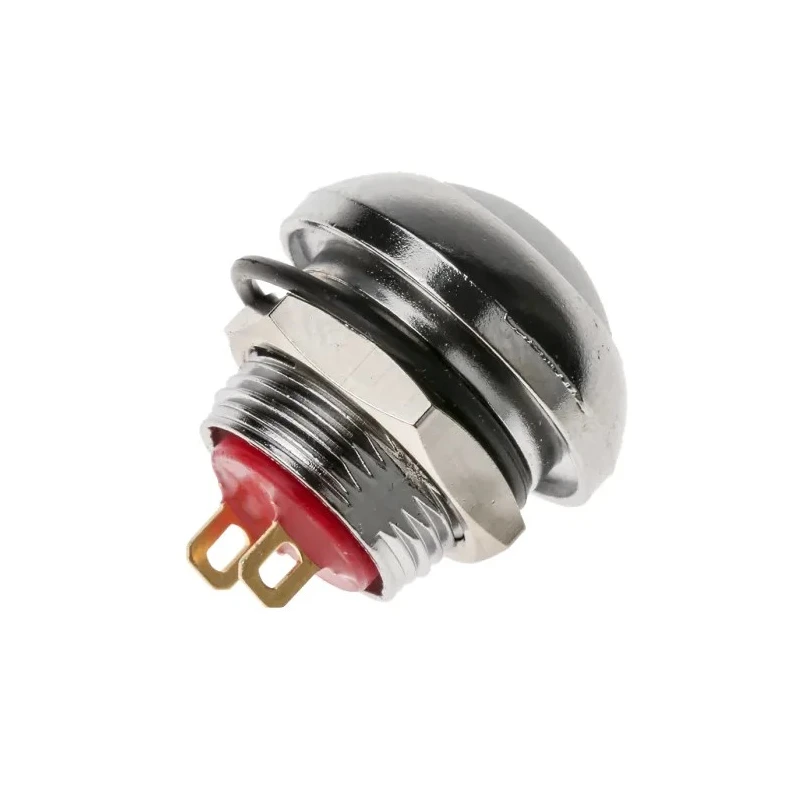

RS PRO Miniature Push Button Switch Momentary Panel Mount 13.6 mm Cutout SPST White LED IP67 250V 891-9845

RS PRO 891-9845 Miniature Push Button Switch Momentary is a compact and reliable electrical switch designed for panel mount applications requiring a 13.6 mm cutout. It features a white LED indicator for clear status feedback and a round cap actuator for ease of operation. Rated for 250 volts AC and DC operation, this switch is suitable for industrial, automation, and electrical control systems.

The switch is configured as Single Pole Single Throw (SPST) with momentary operation, making it ideal for control circuits requiring an off-momentary action. The sealed IP67 rating on the upper side offers superior protection against dust and water ingress, ensuring durability in demanding environments.

It operates efficiently within a temperature range from -30°C to 85°C, featuring gold over silver plated contact terminals for enhanced conductivity and corrosion resistance. Electrical life expectancy is rated at 500,000 make-and-break cycles at full load, while mechanical life without load reaches a minimum of 1,000,000 cycles.

Installation is simplified using the included M12 nut, locking washer, and splash-proof O-ring, which secure the panel mount firmly. The solder lug terminal type allows for reliable electrical connections in automated and manufacturing applications.

White LED illuminated round cap actuator for clear visibility and tactile response. Panel mount design with 13.6 mm cutout size for easy installation. Single Pole Single Throw momentary switching for control and signal functions.

Gold over silver plated contacts improve electrical reliability and lifespan. IP67 rated sealing ensures resistance to dust and water for rugged applications. Wide operating temperature range from -30°C to 85°C allows use in varied environments.

Electrical life of 500,000 cycles at full load and mechanical life of 1,000,000 cycles without load provides longevity. Meets IEC 60629 2001 standards, is PB lead-free and RoHS compliant for safety and environmental compliance.

This miniature push button switch is suited for industrial automation, control panels, manufacturing equipment, and electrical distribution systems requiring compact and reliable momentary switches. Explore more RS PRO products and high-quality Push Button Switches at EnvMart to fulfill your electrical component needs.
