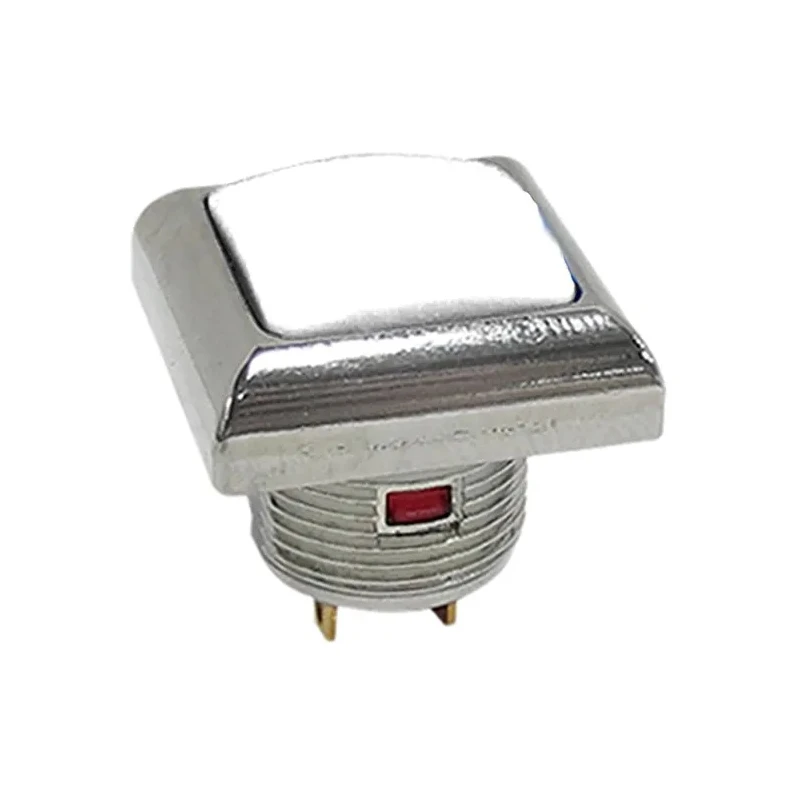

RS PRO Miniature Momentary Push Button Switch Panel Mount 13.6 mm Cutout SPST White LED IP67 250 V 891-9826

RS PRO 891-9826 is a miniature momentary push button switch designed for panel mounting applications requiring a compact and reliable control interface. It features a 13.6 mm square cutout size compatible with a wide range of equipment and control panels. The single pole single throw (SPST) configuration offers simple on/off functionality with momentary switching action for applications requiring temporary activation.

This push button switch includes a white LED actuator cap providing illuminated feedback when operational, enhancing visibility in low light environments. Its durable IP67 rating ensures protection against dust and water ingress, making it well suited for demanding industrial, automation, and electrical applications.

Operating at a contact voltage of 250 V AC or DC, it supports a maximum contact current of 200mA, with gold over silver plated contact terminals improving corrosion resistance and electrical performance. The operating temperature range of -30°C to 85°C enables use in extreme ambient environments.

The mechanical robustness includes a minimum of 1,000,000 cycles without load and an electrical life of 500,000 make-and-break cycles at full load, ensuring long-term operational reliability. Each unit is supplied with an M12 nut, locking washer, and a splash proof O-ring for secure panel attachment.

Ideal for use in industrial control panels, automation equipment, manufacturing machinery, and other commercial electrical systems, this RS PRO miniature push button switch combines compact design with precision switching and environmental resistance.

Designed for panel mounting with a 13.6 mm cutout size. Single Pole Single Throw (SPST) contact configuration for simple on/off control. Momentary switch operation providing immediate return action. Durably rated at IP67 for protection against dust and water ingress.

Operates at 250 V AC and DC voltages with a maximum contact current of 200mA. Features a white LED actuator for clear indication. Gold over silver plated contact terminals for reliable conductivity. Suitable for harsh environments with operating temperatures from -30°C to 85°C.

Mechanical life rated to 1,000,000 cycles and electrical life to 500,000 make-and-break cycles at full load. Explore more precise and rugged Push Button Switches within the RS PRO range on EnvMart for your industrial and automation needs.
