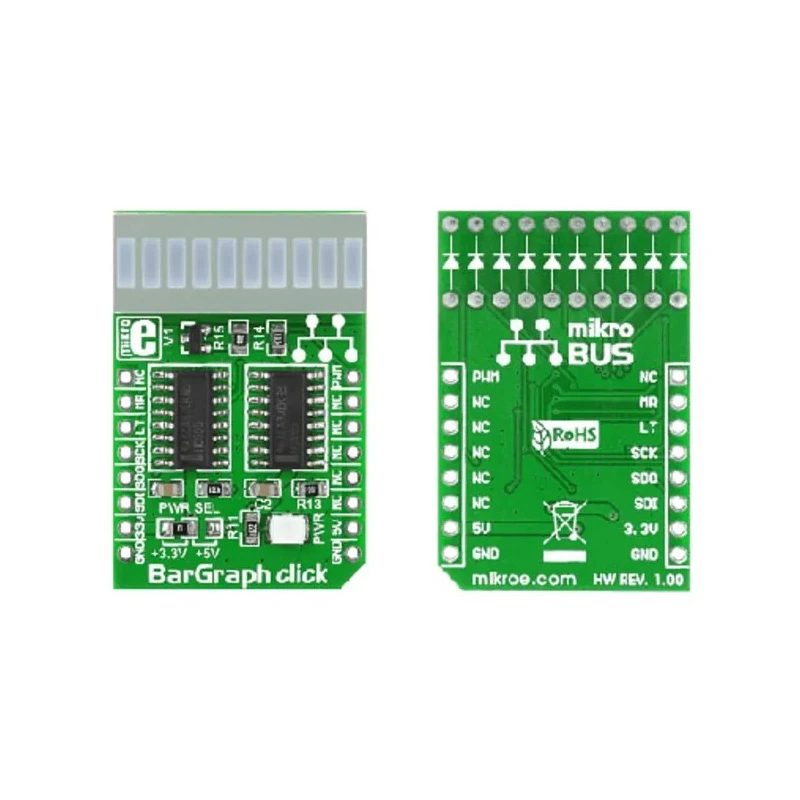

MikroElektronika BarGraph Click 10 Segment Display Add On Board With 74HC595 for mikroBUS Socket MIKROE-1423
Specifications
| Country of Origin | India |
|---|---|
| Brand | MikroElektronika |
| Model | MIKROE-1423 |
| Display Technology | 10 Segment Display |
| Interface Type | SPI, GPIO, PWM |
| For Use With | mikroBUS Socket |
| Standards/Approvals | RoHS |
| Kit Classification | Add On Board |
| Featured Device | 74HC595 |
| Kit Name | BarGraph Click |
Key Features
- The module incorporates a ten-segment light bar display ideal for VU meter applications.
- Designed to operate with 3.3 V or 5 V power supply for compatibility with diverse systems.
- Standard mikroBUS pinout ensures easy and reliable connectivity.
- Features two 74HC595 shift registers for efficient control.
- Supports multiple interface types including SPI, GPIO, and PWM for versatile usage.
- The board comes with header strips soldered, facilitating straightforward installation.
- Complies with RoHS standards for environmental and safety considerations.
- Compatible with microcontroller and development boards using mikroBUS sockets.
Product Description
MikroElektronika MIKROE-1423 BarGraph Click is a specialized 10 segment display add on board equipped with two 74HC595 shift registers designed for mikroBUS socket use. This compact display module enables easy incorporation of a visual bar graph display into embedded and development systems, suitable for industrial and educational applications where visual meter or level indication is needed.
The board supports operation at 3.3 V or 5 V power levels, making it compatible with a wide variety of microcontroller platforms. Its versatile interface options, including SPI, GPIO, and PWM, permit flexible integration for different control protocols and hardware setups.
Featuring the JSB-R102510Z light bar display, the product excels as a visual feedback device for applications like audio VU meters, signal level indicators, and status displays in measurement and monitoring equipment.
Engineered to meet RoHS compliance, the BarGraph Click ensures adherence to environmental safety standards. The module is delivered with header strips pre-soldered for hassle-free installation, ideal for rapid prototyping and product development cycles.
This display add on is suited for use in electronics development tools, educational STEM kits, and embedded system demonstration setups, enhancing the graphical user interface of projects by providing clear segment visualization.
The module incorporates a ten-segment light bar display ideal for VU meter applications. Designed to operate with 3.3 V or 5 V power supply for compatibility with diverse systems. Standard mikroBUS pinout ensures easy and reliable connectivity.
Features two 74HC595 shift registers for efficient control. Supports multiple interface types including SPI, GPIO, and PWM for versatile usage. The board comes with header strips soldered, facilitating straightforward installation.
Complies with RoHS standards for environmental and safety considerations. Compatible with microcontroller and development boards using mikroBUS Sockets. Explore more in the Display Development Tools category for compatible modules and development accessories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BarGraph Click operates with a power supply of 3.3 V or 5 V, making it compatible with a variety of systems.
It features a 10 Segment Display, which is ideal for applications like VU meters and visual indicators.
This model supports multiple interface types including SPI, GPIO, and PWM, allowing for versatile integration into different hardware setups.
The BarGraph Click is manufactured in India.
Yes, it complies with RoHS standards, ensuring adherence to environmental and safety considerations.
The model number for this add-on board is MIKROE-1423.
The module incorporates two 74HC595 shift registers for efficient control of the display.
It comes with header strips pre-soldered, which facilitates straightforward installation and rapid prototyping.
This model is suitable for applications such as audio VU meters, signal level indicators, and status displays in measurement and monitoring equipment.
The BarGraph Click is classified as an Add On Board, designed for use with mikroBUS sockets.
Yes, it is compatible with microcontroller and development boards that utilize mikroBUS sockets.
The specific dimensions and weight of the BarGraph Click are not provided in the available data.
