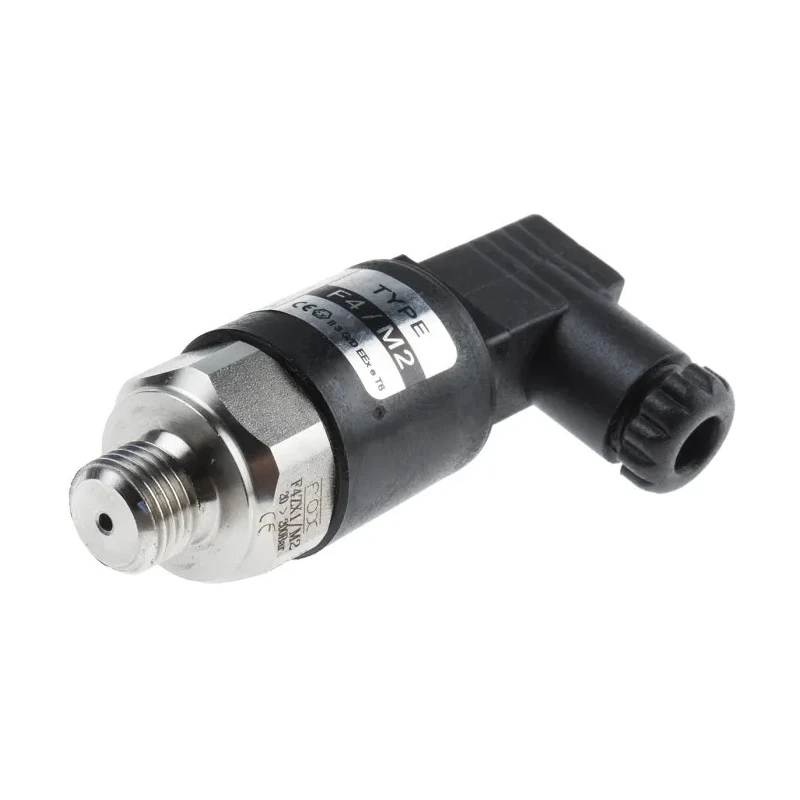

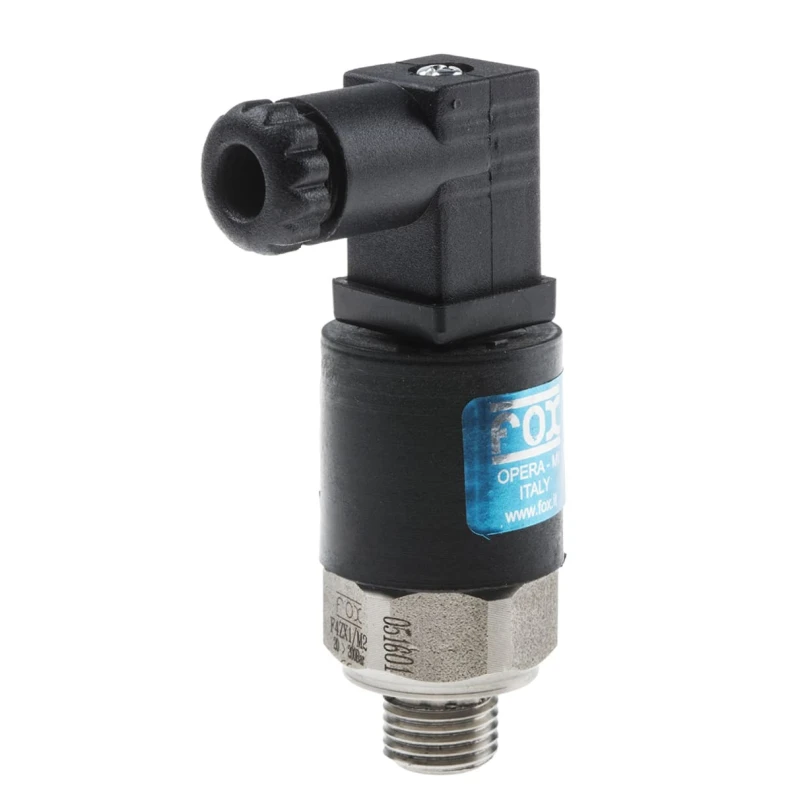

RS PRO Hydraulic Pressure Sensor BSP 1/4, M2 DIN Plug, 20 bar to 200 bar, Steel Housing, IP65 Rated 880-2295
Specifications
| Country of Origin | Italy |
|---|---|
| Accuracy | 4 %FS |
| Brand | RS PRO |
| Model | 880-2295 |
| IP Rating | IP65 |
| Mount Type | Any Position |
| Housing Material | Steel |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Electrical Connection |
| Maximum Pressure Measurement | 200bar |
| Minimum Pressure Measurement | 20bar |
| Maximum Supply Voltage | 25V |
Key Features
- The sensor has a steel housing with IP65 rating, ensuring durability and protection in harsh environments.
- Operates in temperatures ranging from -25°C to +85°C, suitable for diverse industrial conditions.
- Features a 1/4 inch BSP input connection thread compatible with standard fittings.
- Equipped with an M2 DIN plug for electrical connection and an adjustable pressure setting screw.
- Includes a microswitch with normally open or normally closed options for versatile control functionality.
- The mechanical stop ensures quick shut-off to prevent system damage due to overpressure.
- Maximum supply voltage of 25 V and can be mounted in any position.
Product Description
RS PRO 880-2295 Hydraulic Pressure Sensor is a robust and precise pressure measuring device designed for hydraulic and pneumatic industrial apparatus. It supports pressures from 20 bar minimum to 200 bar maximum with an accuracy of 4% Full Scale (FS), meeting the demands of heavy-duty operations.
The sensor features a durable steel housing with IP65 ingress protection, allowing it to perform reliably in challenging environments. It is rated for operation within a temperature range from -25°C to +85°C, making it adaptable across a variety of industrial settings.
Fitted with a 1/4 inch British Standard Pipe (BSP) threading, the sensor can be easily integrated into existing systems. The output connection uses an M2 DIN plug, enhancing compatibility and ease of installation.
The adjustable pressure set point is configurable via a screw on the device, and the internal microswitch can be set for normally open or normally closed contacts, providing flexible control capabilities critical for safety and automation.
A built-in mechanical stop ensures rapid shut-off before pressure exceeds safe limits, protecting equipment and improving operational safety. The sensor supports a maximum supply voltage of 25 volts and can be mounted in any position, increasing installation versatility.
Steel housing and IP65 rating ensure environmental protection. Pressure range from 20 bar to 200 bar with 4% accuracy. Adjustable pressure trigger point with microswitch control. BSP 1/4 inch input thread for compatibility with standard fittings.
M2 DIN plug output connection. Operating temperature range from -25°C to 85°C. Mechanical stop for fast overpressure shut-off. Can be mounted in any position for flexible installation.
This RS PRO Pressure Sensor is suitable for industrial use in hydraulic and pneumatic systems, offering reliable and precise pressure control essential in construction, manufacturing, automation, and water treatment processes.
Explore more high-quality Pressure Sensors and related industrial automation products in the EnvMart catalog to find the perfect solution for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor measures pressures from a minimum of 20 bar to a maximum of 200 bar.
It has an accuracy of 4% Full Scale (FS).
It features a durable steel housing, ensuring protection in harsh environments.
The sensor has an IP65 rating, providing ingress protection against dust and water.
It operates within a temperature range of -25°C to +85°C.
The sensor is equipped with an M2 DIN plug for electrical connection.
Yes, it can be mounted in any position, offering flexibility during installation.
It features a 1/4 inch British Standard Pipe (BSP) input connection thread.
The maximum supply voltage for this model is 25 volts.
Yes, it includes an adjustable pressure setting screw for configuration.
It has a built-in mechanical stop that ensures rapid shut-off before pressure exceeds safe limits.
It is suitable for use in hydraulic and pneumatic systems, including construction, manufacturing, automation, and water treatment processes.
