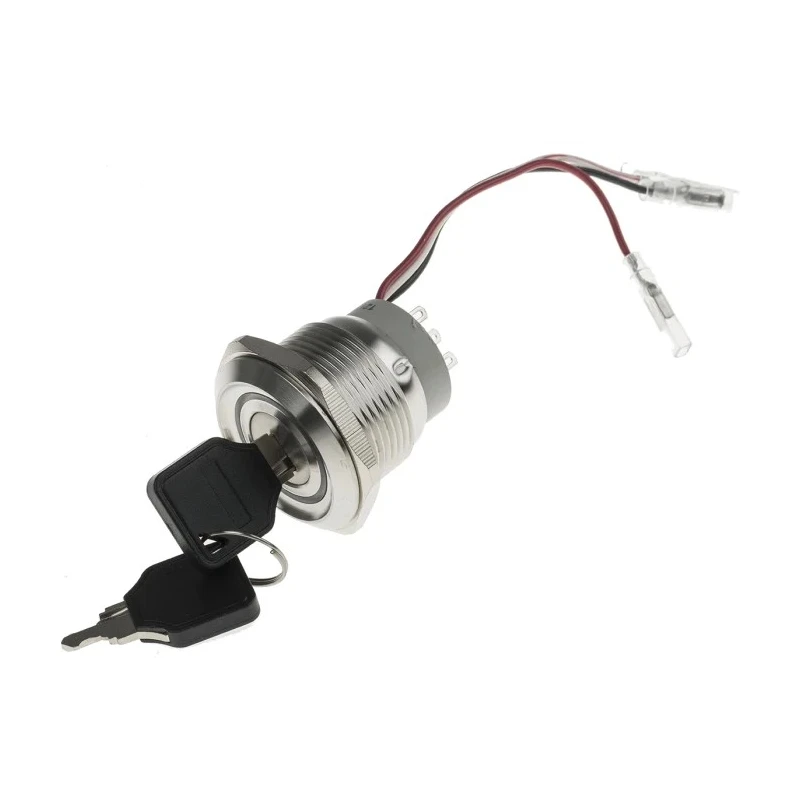

RS PRO IP40 Stainless Steel Latching DPDT Key Switch, 5A Current, 3 Positions, Round Bezel IP40, 30V DC, 250V AC IP40

Name: RS PRO IP40 Stainless Steel Latching DPDT Key Switch, 5A Current, 3 Positions, Round Bezel IP40, 30V DC, 250V AC IP40
Brand: RS PRO
SKU: 384050
Price: 4286.67 INR
Availability: InStock



Category Key Switch Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Model	IP40
IP Rating	IP40
Housing Material	Stainless Steel
Contact Material	Silver
Series	RS PRO
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Number of Positions	3
Minimum Operating Temperature	-20°C
Terminal type	Solder
Standards/Approvals	UL, CE, cUL
Switch Operation	Latching
Contact DC Voltage	30V dc
Switch Contact Current	5A
Mechanical Life	50000Operations
Contact AC Voltage	250V ac
Electrical Life	50000 make and break operations at full load
Bezel Shape	Round
Key Index Angle	90°
Panel cut-out diameter	30.2 mm
RS PRO IP40 Key Switch, DPDT, 5A 3-Way Flat-KeyBrand	RS PRO

Key Features

The switch has an IP40 front panel protection rating suitable for industrial environments.
It features a round bezel design with panel cut-out diameter of 30.2 mm for easy mounting.
The switch operates with 30V DC and 250V AC contact voltages.
It offers a mechanical life of 50,000 operations ensuring durability.
Keys can be removed in all positions with a 90° key index angle for security.
Constructed from stainless steel with a varnish finish for corrosion resistance.
Switch contacts are silver material, providing good conductivity and reliability.
It has cUL, UL, and CE approvals meeting international standards.

Product Description

The RS PRO IP40 key switch model IP40 is a robust latching key switch designed for industrial and electrical applications, offering secure and reliable control in automation systems. Featuring a durable stainless steel housing with a varnish finish, this key switch supports a double-pole double-throw (DPDT) contact configuration rated at 5 amps suitable for both AC and DC voltages.

Designed with a round bezel shape and a panel cut-out diameter of 30.2 mm, it provides an IP40 ingress protection rating, safeguarding against solid foreign objects. The switch operates with key positions numbering three and allows keys to be removed at any position with a 90° key index angle, enhancing user security and access control.

The switch offers a mechanical life expectancy of 50,000 make and break operations at full load, ensuring long-term reliability in demanding environments. Its silver contact material guarantees efficient electrical conductivity while meeting UL, CE, and cUL standards for safety and compliance. The operating temperature range spans from -20°C to 55°C, making it suitable for varied industrial climates.

This stainless steel anti-vandal key lock switch includes ring illumination with color indications: red for off and green for on states with LEDs available for 12V, 24V, and 220V voltages (LED resistor supplied). Its impact resistance rating is IK03, further enhancing durability against physical impacts. Terminal connections are solder type for secure and stable wiring.

The switch ensures 50,000 electrical life cycles under full load conditions. Keys are designed for removal in all switch positions providing security flexibility. The stainless steel construction with varnish finish offers corrosion and wear resistance.

The IP40 rating provides front panel protection against solid particles. Suitable for industrial electrical control, automation panels, and machinery control applications. Includes LED illumination options for operational state indication.

Complies with UL, CE, and cUL standards for industrial safety.

This RS PRO IP40 key switch is ideal for integration into electrical systems requiring secure key-operated switching mechanisms. Browse more from RS PRO and related Key Switches in the Electronics & Electricals category on EnvMart.
