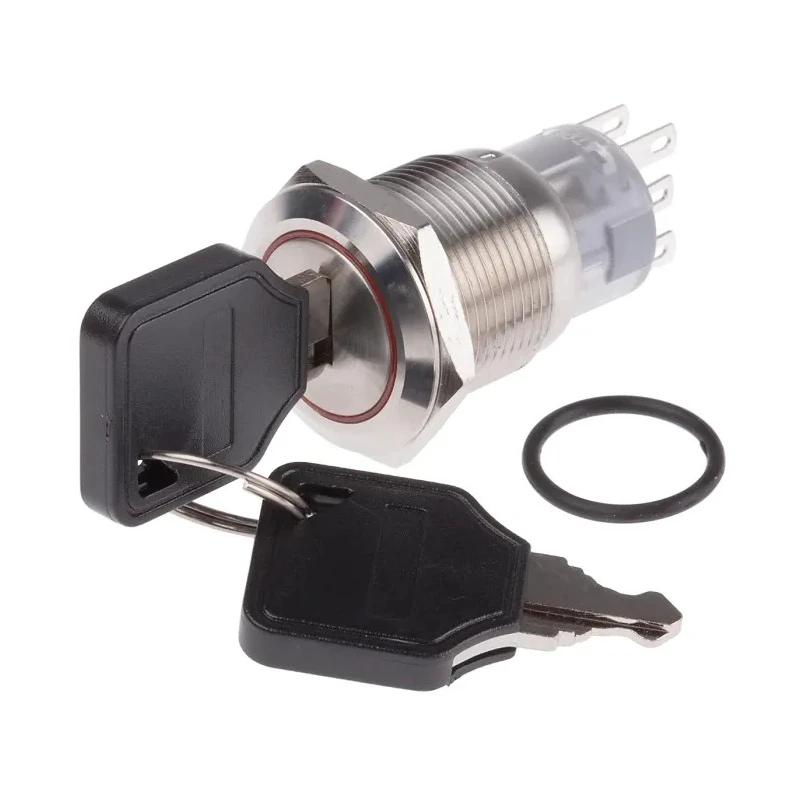

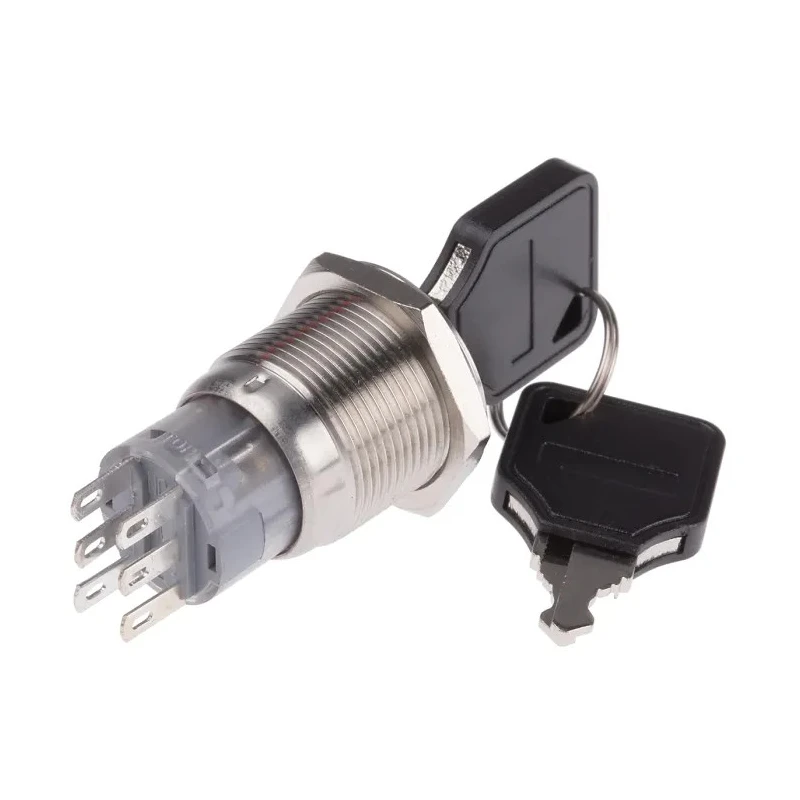

RS PRO IP40 Stainless Steel 5A 3-Position Latching DPDT Key Switch with Flat Key IP40 IP Rating IP40

RS PRO IP40 key switch model IP40 is engineered for robust electrical control applications requiring secure access through keyed activation. This latching key switch features three operational positions and a Double Pole Double Throw (DPDT) contact configuration, rated for 5 amperes current capacity. It is constructed with a durable stainless steel housing, which offers excellent resistance to corrosion and vandalism, suitable for industrial, manufacturing, and automation control systems.

The switch terminals are designed for soldering, ensuring reliable and long-lasting electrical connections. Its IP40 ingress protection rating protects the internal components from solid objects larger than 1mm, making it suitable for general industrial environments.

Functionally, the switch complies with RoHS standards and is certified by UL and cUL for safety and quality assurance. It operates effectively in temperature extremes from -20°C to +55°C and comes with silver contact material for optimal electrical conductivity and reduced wear.

The ergonomic design includes a flat key type with a key index angle of 45 degrees and a round bezel to facilitate easy and secure key operation. Its mechanical life expectancy of 50,000 operations provides excellent durability for repeated use in equipment such as industrial machinery and electrical installations.

This product is sourced from Taiwan, underscoring high manufacturing quality. The switch is supplied with two keys, allowing for spare or authorized multi-user access control. Current rating of 5 amperes ensures reliable electrical performance.

Latching operation secures equipment activation with three key positions. Stainless steel housing provides resistance to corrosion and physical damage. Solder terminal type ensures firm, long-lasting electrical connections.

IP40 rating protects against ingress of solid objects larger than 1 mm. Wide operating temperature range from -20°C to +55°C. Silver contact material enhances conductivity and durability. Mechanical life of 50,000 operations supports long-term reliability.

Includes two flat keys for secure and flexible access control. Meets RoHS and UL/cUL certifications for safety and compliance.

This RS PRO IP40 Key Switch is ideal for industrial, electrical, automation, manufacturing, and construction environments where secure and reliable control via keyed switch operation is necessary. Browse the Electronics & Electricals category for more switches and component options on EnvMart.
