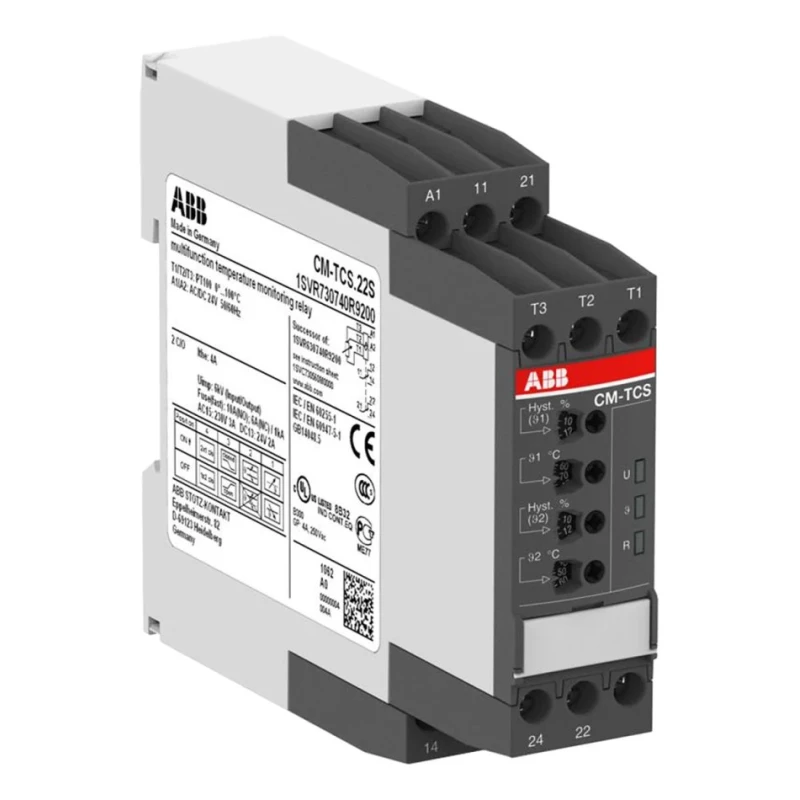

ABB 3 Phase SPDT Temperature Monitoring Relay, DIN Rail Mount, 24 V DC/24 V AC, Model 1SVR730740R9200 CM-TCS.22S

ABB 1SVR730740R9200 CM-TCS.22S is a high-quality 3 phase temperature monitoring relay engineered for industrial and automation applications. It accurately monitors temperature using a PT100 sensor, capable of detecting over-temperature, under-temperature, or dual thresholds with instant relay switching.

This device features a single-pole double-throw (SPDT) contact configuration and mounts securely on DIN rails, making it ideal for electrical panels and control systems. It accepts supply voltages of 24 V DC, 24 V AC, and 240 V AC, providing versatile integration options.

The relay is rated to operate within temperatures from +60°C minimum to 60°C maximum, suitable for various industrial environments. It is equipped with screw-type terminals ensuring reliable wiring connections and provides IP20 and IP50 ingress protection to safeguard internal components.

Compact with a length of 103.7 mm and height of 85.6 mm, it fits in constrained panel spaces. Key safety features include short circuit monitoring and detection of interrupted wires, enhancing system reliability and fault diagnostics. The frontal LEDs provide immediate visual status feedback for easier maintenance and operation.

Manufactured with housing material complying with UL 94 V-0 fire protection standards, this ABB monitoring relay offers durability and safety compliance. It is especially suited for HVAC, automation, manufacturing, and temperature-critical industrial processes.

Provides SPDT contact configuration for reliable switching. Mounts easily on DIN rail for secure installation. Supports supply voltage of 24 V DC as well as 24 V AC and 240 V AC. Operates within a temperature range of +60°C to 60°C.

Features screw type terminals for secure wiring connections. Offers IP20 and IP50 protection ratings for varying environmental conditions. Has a contact current rating of 4A to handle meets operational loads. Compact design with length 103.7 mm and height 85.6 mm for space-efficient use.

Includes front-face LEDs indicating operational status clearly. Incorporates short circuit monitoring and wire break detection for safety.

This relay is an excellent choice for industrial monitoring, HVAC systems, and critical temperature-control applications demanding high accuracy and reliability. Explore more ABB Monitoring Relays and electrical automation components at EnvMart for your industrial needs.
