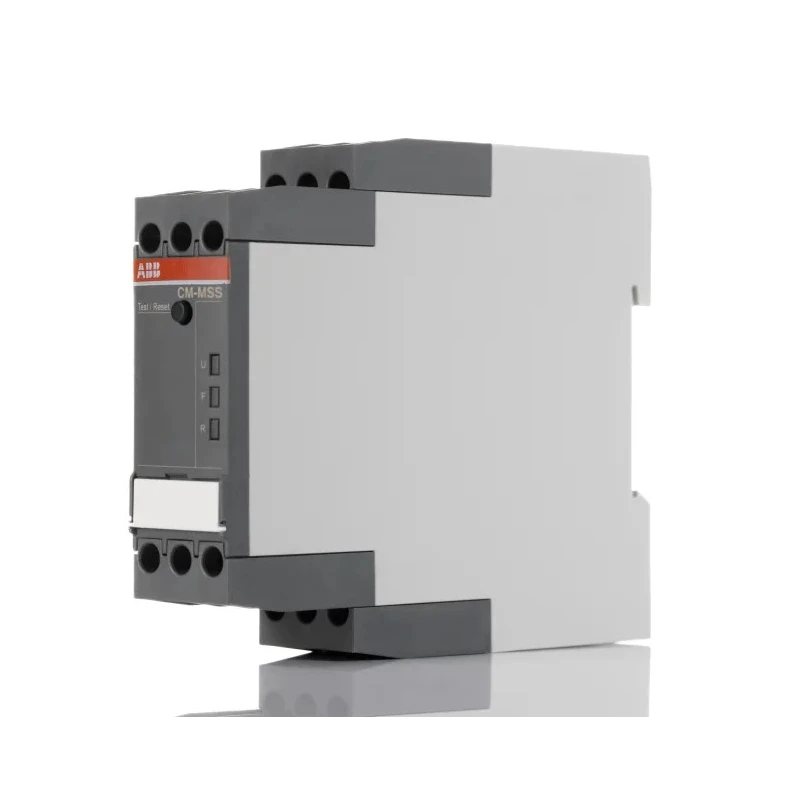

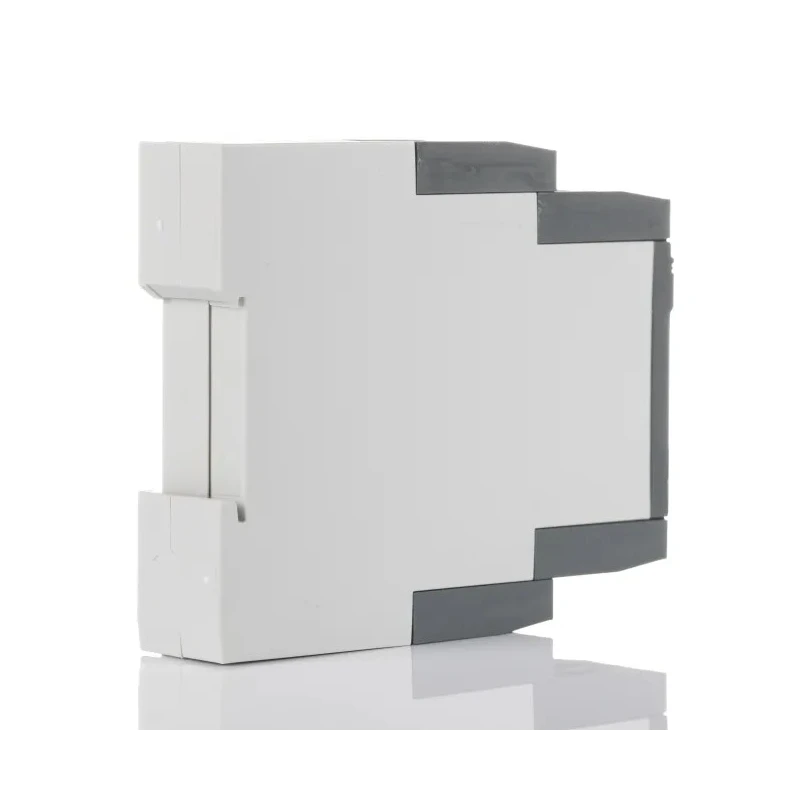

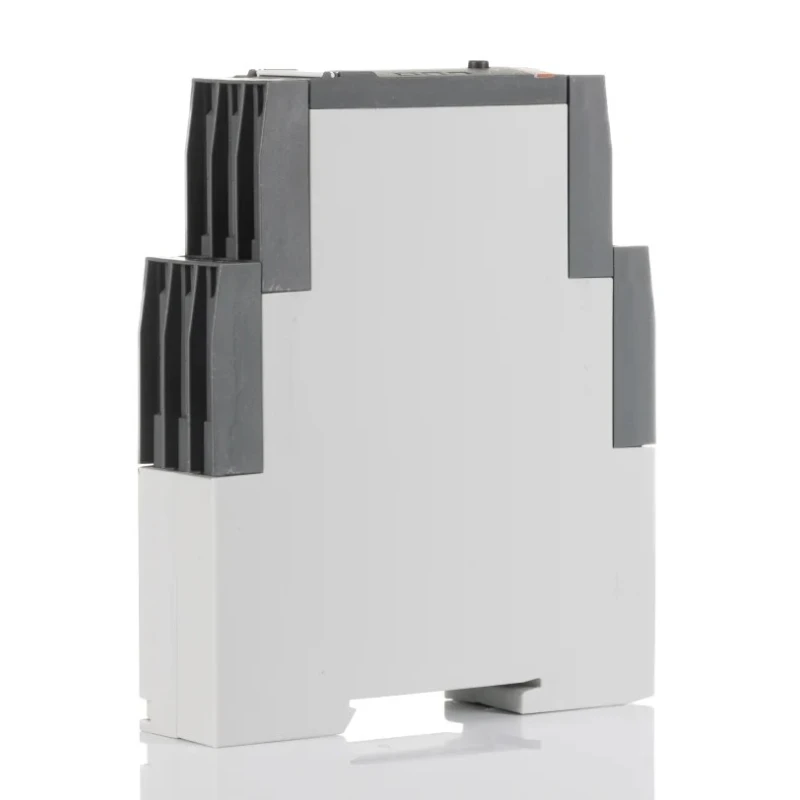

ABB Temperature Monitoring Relay DPDT DIN Rail Mount 24 V DC 24 V AC 240 V AC CM-MSS Series 1SVR730712R1300 CM-MSS.51S
Specifications
| Country of Origin | India |
|---|---|
| Brand | ABB |
| Height | 85.6mm |
| Length | 103.7mm |
| Model | 1SVR730712R1300 CM-MSS.51S |
| IP Rating | IP50, IP20 |
| Mount Type | DIN Rail |
| Series | CM-MSS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Sub Type | PTC |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Standards/Approvals | UL |
| Contact Current | 3.7A |
| Supply DC Voltage | 24 V dc |
| ABB Temperature Monitoring Relay, DPDTBrand | ABB |
| ABB Monitoring Relay, DPDT, DIN Rail, 24 V dc 24V ac, 240 V acBrand | ABB |
Key Features
- Equipped with a PTC sensor to detect temperature rises and prevent motor overheating.
- DPDT contact configuration provides reliable dual circuit switching.
- Compatible with 24 V DC, 24 V AC, and 240 V AC supply voltages.
- Operating temperature range from -25°C up to 60°C for harsh environments.
- Screw terminal connections enable secure and easy wiring.
- Compact size optimizes installation space with dimensions 103.7mm length and 85.6mm height.
- IP50 and IP20 ratings ensure protection against solid objects and touch safety at terminals.
- Automatic, remote, and manual reset options add operational versatility.
Product Description
ABB 1SVR730712R1300 CM-MSS.51S temperature monitoring relay is designed for industrial applications requiring reliable motor protection by continuously monitoring temperature with an integrated PTC sensor. This DPDT relay mounts easily on DIN rails, providing flexible installation in control panels.
The relay supports both AC and DC supply voltages (24 V DC, 24 V AC, and 240 V AC), making it adaptable for various control circuits. Its screw terminal design ensures secure wiring connections while maintaining safety with IP20 touch-protected terminals and an IP50 rated case for solid object ingress protection.
Operating efficiently between -25°C to 60°C, this relay suits diverse industrial environments, from harsh factory floors to automation lines. The compact dimensions of 103.7 mm length and 85.6 mm height allow for space-saving panel designs. It also features automatic, remote, and manual reset capabilities for versatile control.
Innovative protection features include detection of short circuits and dynamic interrupted wiring, enhancing motor safety. With two measuring circuits, it can monitor two motors simultaneously, providing effective motor condition oversight in production machinery or engineering workshops.
Equipped with PTC sensor for temperature-based motor protection. Dual Pole Double Throw (DPDT) contact configuration. Compatible with 24 V DC, 24 V AC, and 240 V AC power supply. Screw terminal type for secure wiring. Compact dimensions of 103.7×22.5×85.6 mm for easy panel mounting.
IP50 and IP20 ingress protection for terminals and enclosure. Operating temperature range from -25°C to 60°C. Automatic, remote, and manual reset options for operational flexibility. Designed for industrial automation, production machinery, and engineering workshops.
Can monitor up to two motors simultaneously using two measuring circuits.
Choose the ABB CM-MSS series monitoring relay for dependable motor thermal protection and enhanced operational safety in demanding industrial environments. Explore EnvMart’s full range of Monitoring Relays for industrial and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range is from -25°C to 60°C, making it suitable for harsh industrial environments.
It features a Dual Pole Double Throw (DPDT) contact configuration, allowing for reliable dual circuit switching.
This relay is compatible with 24 V DC, 24 V AC, and 240 V AC supply voltages, providing versatility for various control circuits.
The dimensions of this relay are 103.7 mm in length and 85.6 mm in height, allowing for compact installation.
It is designed for DIN rail mounting, which facilitates easy installation in control panels.
It utilizes screw terminal connections, which provide secure and easy wiring for reliable operation.
This model has an IP50 rating for the enclosure and an IP20 rating for touch protection at terminals, ensuring safety against solid objects and contact.
Yes, it can monitor up to two motors simultaneously using two measuring circuits, enhancing motor condition oversight.
It features automatic, remote, and manual reset options, providing flexibility in operational control.
The maximum contact current is 3.7A, suitable for various industrial applications.
It complies with UL standards, ensuring adherence to safety and performance regulations.
The country of origin for this relay is India.
