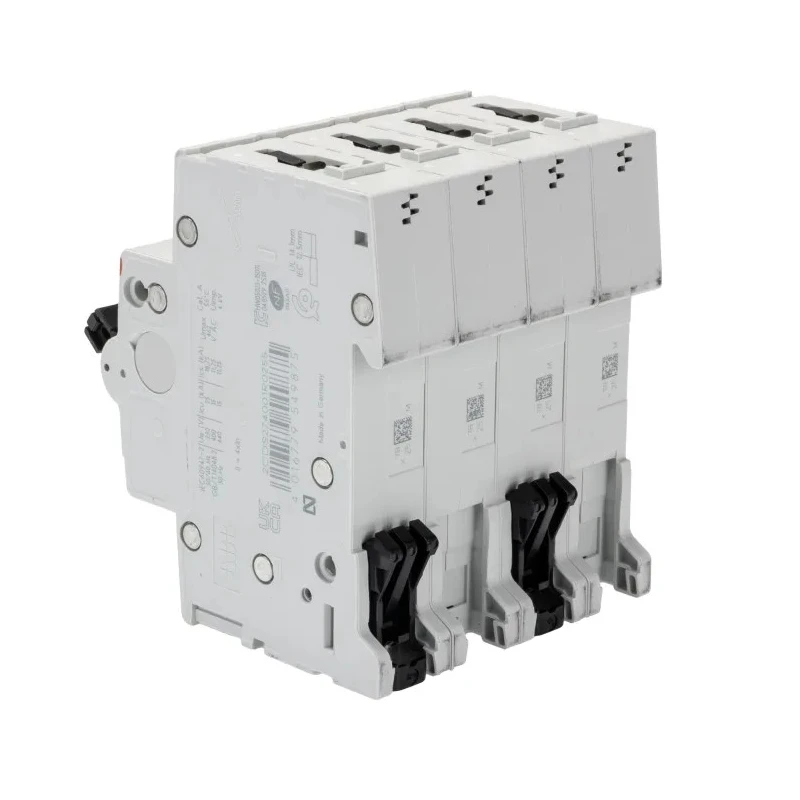

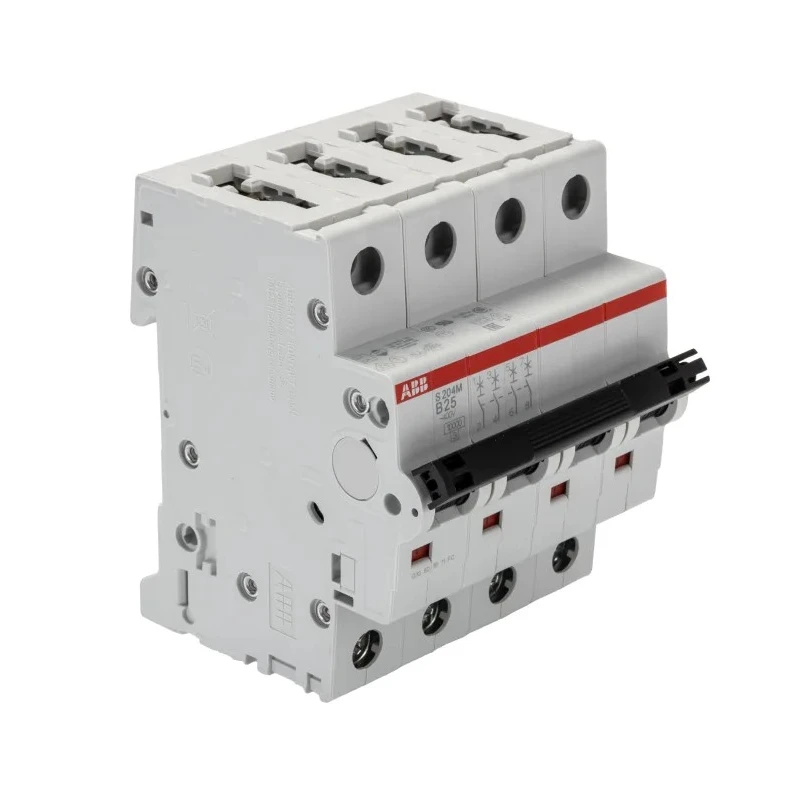

ABB System Pro M Compact S200M Miniature Circuit Breaker, 4-Pole, 25A, Type B, 400V AC, 12V DC, 15 2CDS274001R0255 S204M-B25

ABB 2CDS274001R0255 S204M-B25 System Pro M Compact S200M Miniature Circuit Breaker is a 4-pole device engineered for high-demand commercial and industrial electrical applications. It offers a 25A current rating with Type B tripping characteristics, suitable for sensitive protection against overload and short-circuit conditions. The device operates at rated voltages of 400V AC and 12V DC, ensuring versatile compatibility with various electrical systems.

This miniature circuit breaker features a high breaking capacity of 15 kA, enhancing system safety by effectively interrupting fault currents. The product is designed for easy installation on DIN rails, incorporating screw terminals to assure reliable connections. The reset actuator is a lever type, allowing for straightforward manual resetting after trip conditions are addressed.

Conforming to IEC/EN 60947-2 and IEC/EN 60898-1 standards, the breaker meets stringent international quality and safety requirements. Its electromechanical tripping mechanism, supported by anaerobic adhesive technology, ensures dependable interruption performance over its operational life. The device carries an IP20 rating, indicating protection against solid objects but not liquids, making it suitable primarily for indoor electrical panels.

Suitable for use in commercial electrical panels, industrial setups, and automation systems, this miniature circuit breaker safeguards electrical circuits against damage from excess current. Its robust German engineering ensures durability and performance reliability in demanding industrial environments.

The compact dimensions (88mm height, 70mm width, and 69mm depth) facilitate space-saving installations in standard electrical enclosures. The product is also classified as a Better World product, designed for efficient disassembly and recycling at the end of its service life, supporting sustainable practices.

4-pole design for complete circuit protection. 25A current rating optimized for medium-load applications. Type B tripping ensures sensitive response to overloads. 400V AC and 12V DC rated voltage compatibility. Breaking capacity of 15 kA for high fault current interruption.

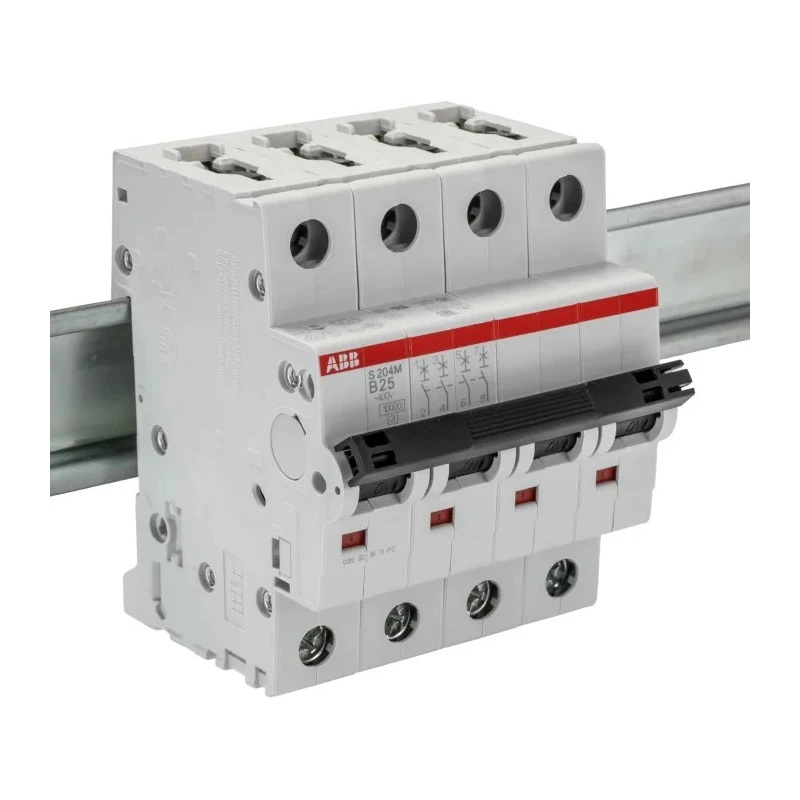

DIN rail mounting for secure and straightforward installation. Screw terminal contacts provide robust electrical connections. IEC/EN 60947-2 and IEC/EN 60898-1 certified for international safety standards. Lever reset actuator allows easy manual reset after trips.

Manufactured in Germany with durable, quality engineering.
