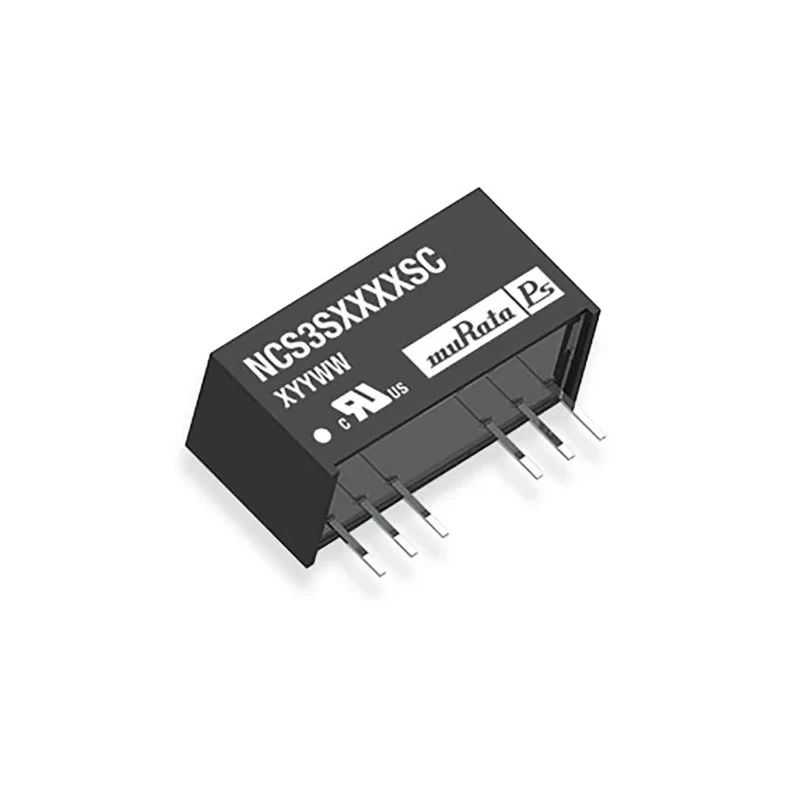

Murata Power Solutions NCS3 Series DC/DC Converter 6V DC 200mA Output 36V DC Input 2W Through Hole
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NCS3 DC/DC Converter, 6V dc |
| Brand | Murata Power Solutions |
| Efficiency | 82% |
| Length | 21.95mm |
| Model | NCS3 |
| Depth | 11.25mm |
| Gross Weight | 4.3g |
| Width | 9.45mm |
| Mount Type | Through Hole |
| Series | NCS3 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1081000h |
| Number of outputs | 1 |
| Ripple and Noise | 60mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | CRE, UL, RoHS |
| Minimum Input Voltage | 9V |
| Number of Pins | 4 |
| Output Voltage 1 | 6V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1.5kV dc |
| Output Current 2 | 600mA |
Key Features
- Regulated isolated DC-DC converter with single output voltage.
- High isolation voltage of 1.5 kV dc ensuring safety and noise reduction.
- Encapsulated construction provides superior thermal performance.
- Designed for a wide operating temperature range from -40°C to 85°C.
- Compact SIP package with through hole mounting for easy installation.
- Continuous short circuit protection for enhanced reliability.
- High efficiency of approximately 82% for energy saving.
- Low ripple and noise at 60mV peak-to-peak for stable power delivery.
Product Description
Murata Power Solutions NCS3 NCS3S1205SC DC/DC Converter is a 2W single output isolated power converter designed for industrial and commercial electronic applications requiring stable low-power DC output. It operates from a wide input voltage range of 9 to 36 V DC and delivers a regulated 6V DC output at 200mA current capacity. The device is built in a compact SIP package with through hole mounting.
This converter features an encapsulated design which enhances thermal management, enabling reliable operation within a temperature range of -40°C to 85°C. It also offers continuous short circuit protection, safeguarding the circuit against faults. The isolation voltage rating of 1.5 kV DC provides excellent separation between input and output, reducing interference and improving safety.
The converter exhibits low output ripple and noise of 60 mV peak-to-peak, making it suitable for sensitive electronic applications. With an efficiency of 82%, it is optimized for energy-efficient power conversion. The NCS3 series converters conform to CRE, UL, and RoHS standards, highlighting their quality and environmental compliance.
Typical industrial uses include telecommunications systems, battery-powered equipment, process control modules, and distributed power supply systems where reliable, isolated DC power conversion is required.
Regulated isolated DC-DC converter with single output voltage. High isolation voltage of 1.5 kV dc ensuring safety and noise reduction. Encapsulated construction provides superior thermal performance. Designed for a wide operating temperature range from -40°C to 85°C.
Compact SIP package with through hole mounting for easy installation. Continuous short circuit protection for enhanced reliability. High efficiency of approximately 82% for energy saving. Low ripple and noise at 60mV peak-to-peak for stable power delivery.
Applications include telecommunications, battery powered systems, process control, and distributed power systems. Compliance with CRE, UL, and RoHS standards for quality assurance. Explore our full range of DC/DC Converters and power supplies on EnvMart for diverse industrial and laboratory power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this converter is 6V DC.
The maximum input voltage for the NCS3 series is 36V DC.
It delivers a current capacity of 200mA.
The efficiency of this model is approximately 82%.
The isolation voltage rating is 1.5 kV DC, providing excellent separation between input and output.
The dimensions are 21.95mm in length, 9.45mm in width, and 11.25mm in depth.
It operates within a temperature range of -40°C to 85°C.
This model features a compact SIP package with through hole mounting for easy installation.
The output ripple and noise is specified at 60mV peak-to-peak.
It conforms to CRE, UL, and RoHS standards, ensuring quality and environmental compliance.
Typical applications include telecommunications systems, battery-powered equipment, and process control modules.
It features continuous short circuit protection for enhanced reliability.
