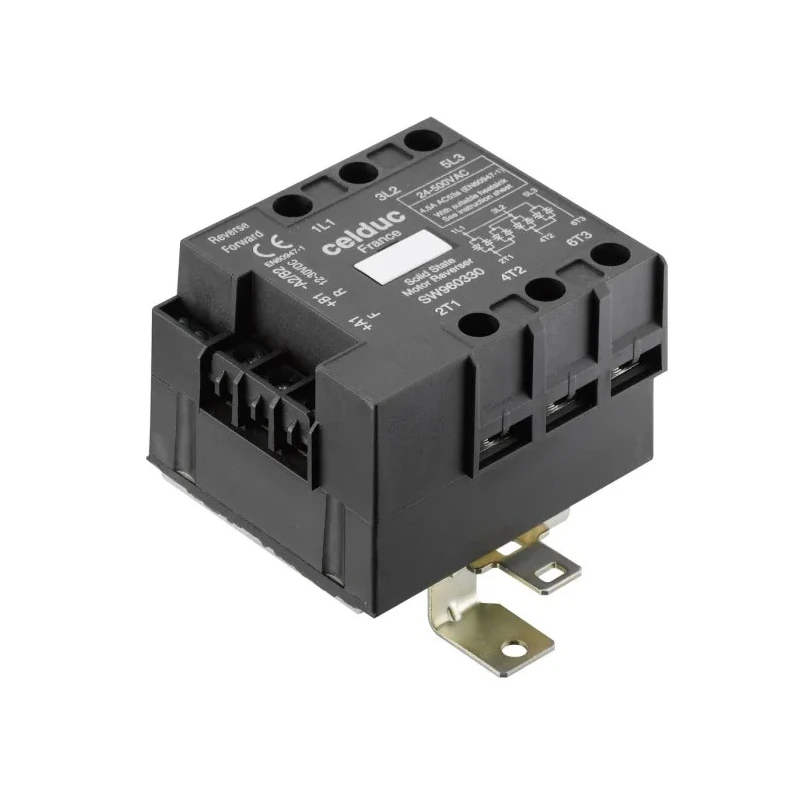

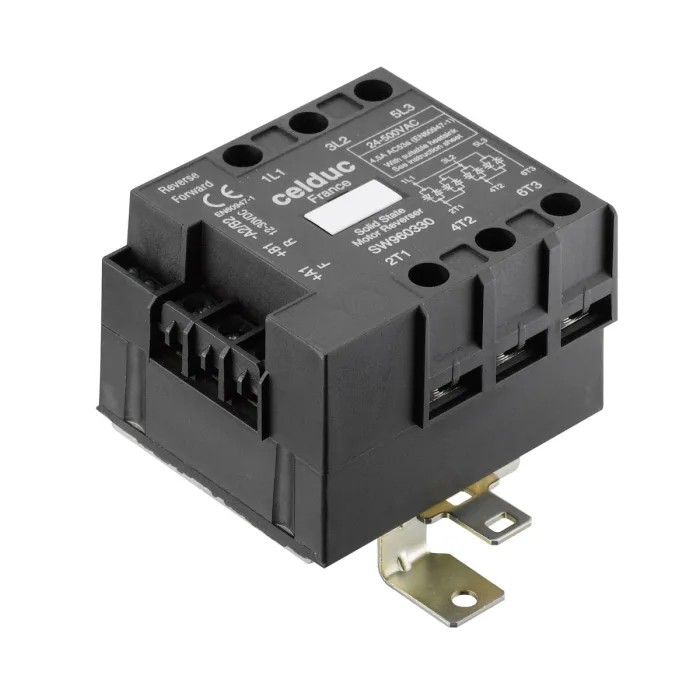

Celduc SG9-SV9-SW9 Series Solid State Relay 8.5 Arms Load 500 V AC Load DIN Rail Mount

Celduc SG9-SV9-SW9 Series Solid State Relay SW961230 is engineered for industrial automation and control applications requiring robust and reliable switching. This relay supports a maximum load current of 8.5 Arms and operates with load voltages up to 500 V AC, making it well-suited for controlling heavy machinery and electrical motors.

Its DIN rail mounting capability allows easy integration into standard electrical enclosures and control panels, while the screw terminal connection ensures secure wiring. The relay uses a single pole single throw (SPST) contact configuration with zero cross switching function to minimize electrical noise and stress, improving the longevity of connected equipment.

Designed for harsh environments, it operates efficiently between -40°C and 100°C and provides IP20 ingress protection against solid objects larger than 12 mm. The relay employs a thyristor for output, offering fast and reliable switching performance compliant with CE and EAC standards.

This series provides input/output line isolation with optocouplers, enhancing immunity against electrical noise and harsh industrial conditions including dV/dT and humidity. Suitable for three-phase motor rotation direction control, conveyor belts, packaging machines, and crane girders, this product is versatile for various industrial use cases.

Supports a maximum load current of 8.5 Arms for reliable performance. Designed for mounting on DIN rails ensuring easy installation in control panels. Handles load voltages up to 500 V AC suitable for industrial applications.

Operates within a wide temperature range from -40°C to 100°C. Features zero cross switching to protect connected equipment. Single Pole Single Throw (SPST) contact configuration for precise switching. Constructed with a screw terminal type for secure electrical connections.

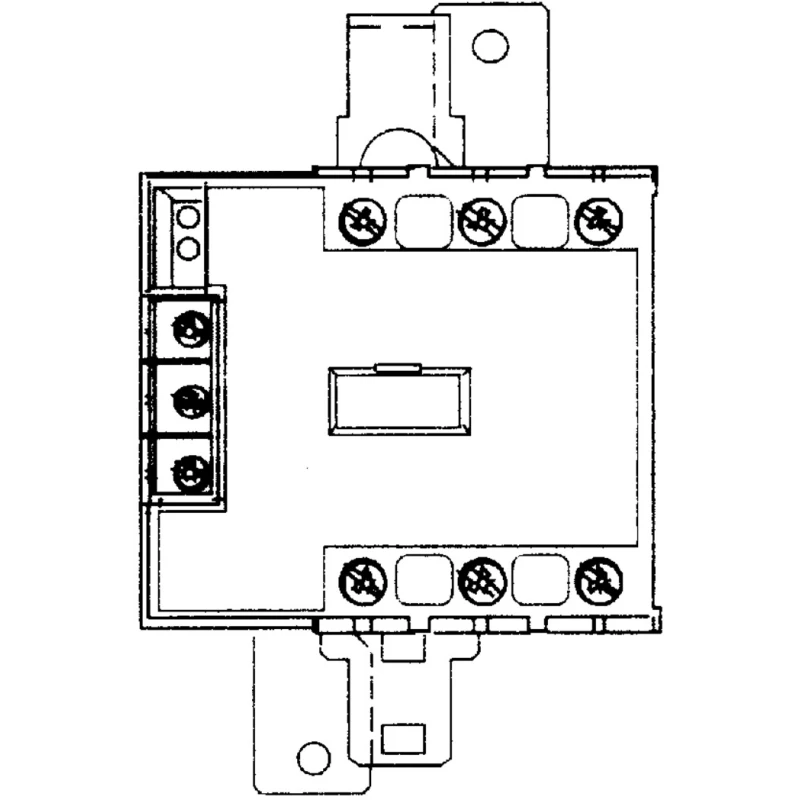

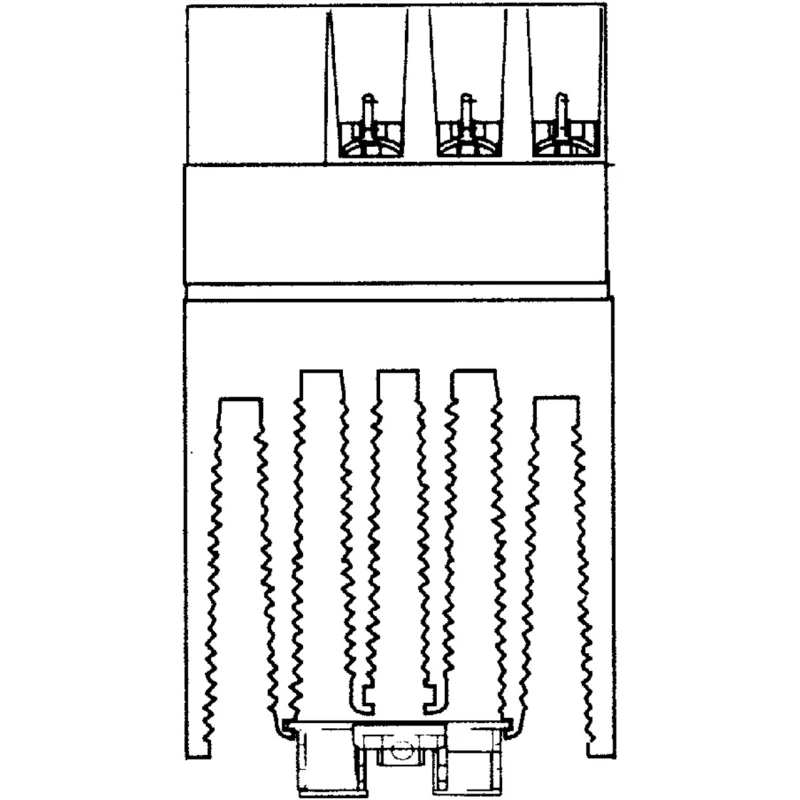

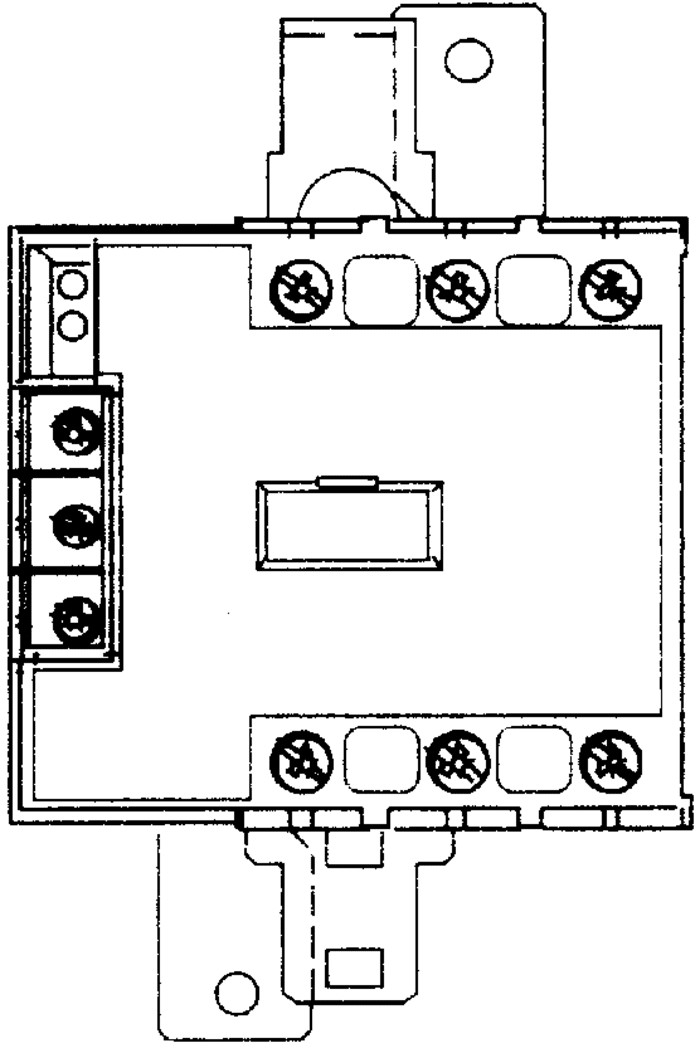

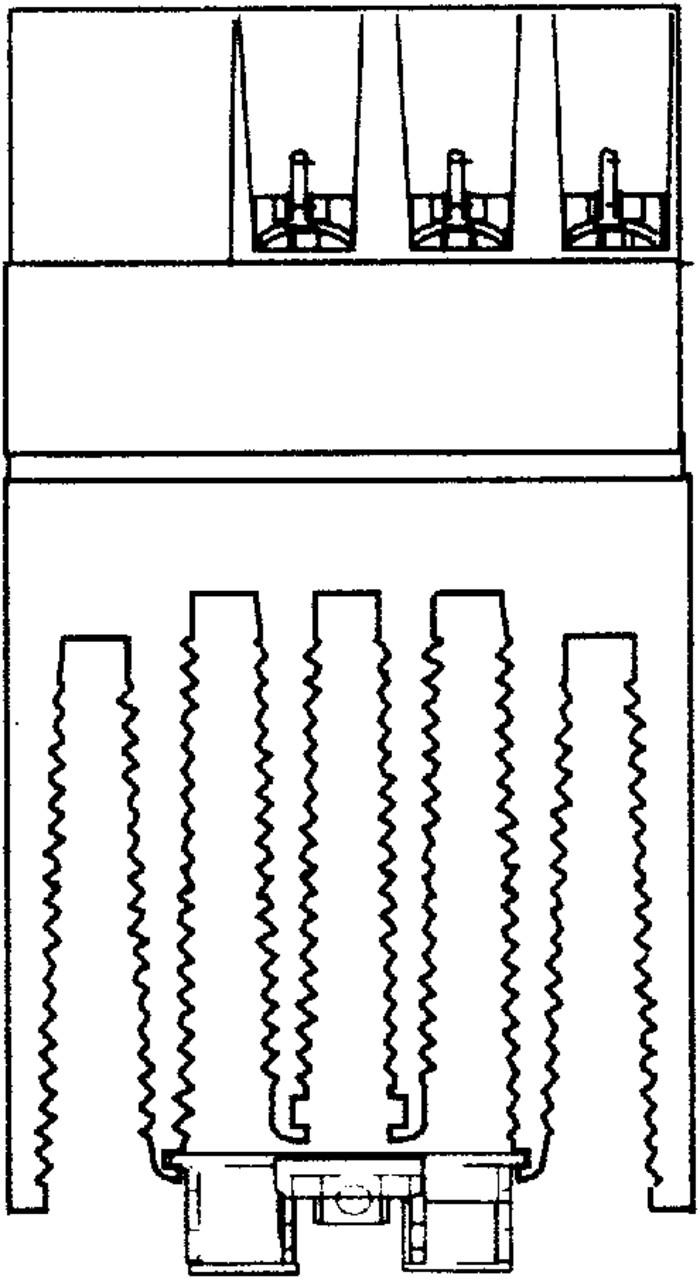

IP20 rated providing protection against solid objects larger than 12 mm. Employs a thyristor output type enabling efficient power control. Complies with CE and EAC standards ensuring safety and quality compliance. Compact design with dimensions 155mm length, 110mm height, and 35mm width.

This product is ideal for industrial, automation, manufacturing, and electrical control system applications. Explore more Solid State Relays and electrical components on EnvMart for your automation needs.
