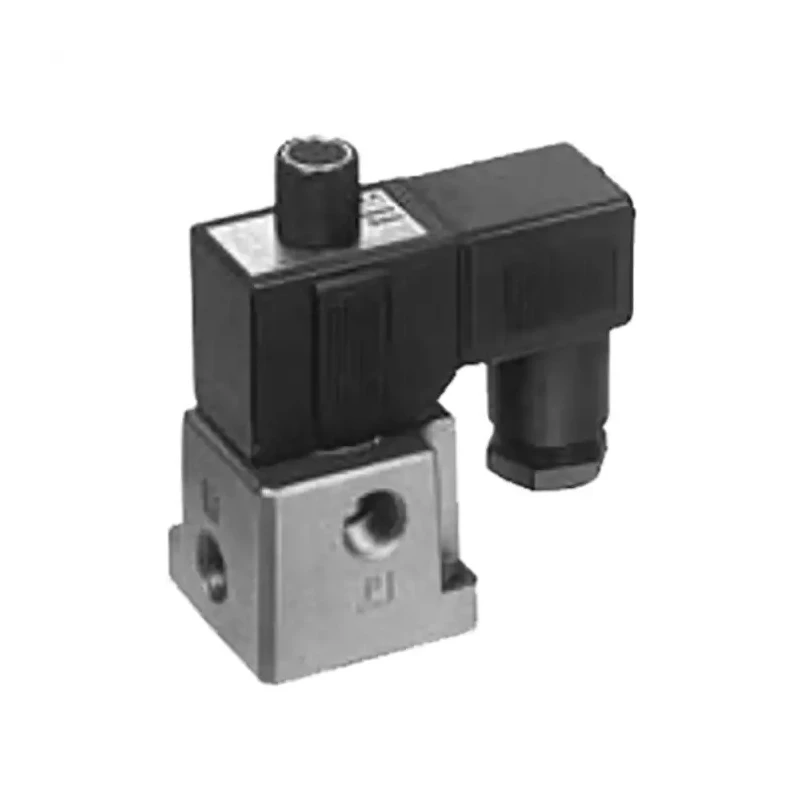

SMC 3 Port Direct Operated Poppet Solenoid Valve VT317-3DZ-02-Q, NC, 110V AC, Die Cast Aluminium Body VT317-3DZ-02-Q

Free Delivery in India | Lowest Global Shipping Charges

SMC 3 Port Direct Operated Poppet Solenoid Valve VT317-3DZ-02-Q, NC, 110V AC, Die Cast Aluminium Body VT317-3DZ-02-Q



Category Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.9 Mpa
Model	VT317-3DZ-02-Q
Series	VT3
Number Of Ports	3
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Supply Voltage	110V ac
Standards/Approvals	JIS B8374-1981
Default Valve Position	NC
Maximum Opening Time	30ms

Key Features

The valve series VT317 incorporates direct operated poppet type solenoid with spring return action.
It supports maximum operating pressure of 0.9 Mpa suitable for various pneumatic fluid power uses.
Features include push button manual override and surge voltage protection for operational reliability.
Coil orientation can be adjusted at 90-degree increments to fit installation constraints.
The valve ports are 1/4 inch with tapered threads conforming to JIS B8374-1981 standards.
Operating temperature ranges from 0°C up to a maximum of 50°C.
Manufactured in Japan ensuring high quality and precise engineering standards.

Product Description

SMC VT317-3DZ-02-Q is a 3 port, normally closed solenoid valve featuring a die cast aluminium body, operating at 110V AC voltage. It belongs to the VT317 Series of direct operated poppet valves providing reliable pneumatic control solutions.

This valve is designed specifically for pneumatic air applications requiring up to 0.9 Mpa operating pressure with temperature compatibility ranging between 0°C and 50°C. It features a spring return mechanism for reliable closing, push button manual override for ease of maintenance and surge voltage protection to enhance coil life.

The valve ports are 1/4 inch with tapered threads, conforming to the JIS B8374-1981 industrial standard. Installation flexibility is offered with the coil orientation adjustable in 90-degree increments to suit multiple setups.

Its robust die cast aluminium body ensures durability and lightweight construction suitable for industrial, manufacturing, pneumatic system automation, and fluid power tool applications where precise valve operation is critical.

The direct operated poppet design allows for selective porting with up to 6 valve functions. Standard DIN 43650 electrical connectors facilitate easy integration into existing systems. The normally closed position provides default valve closure ensuring safety in pneumatic circuits.

This valve supports surge voltage protection to prevent coil damage during operation. Manual override via push button adds convenient control for maintenance. Coils can be oriented at 90-degree increments for modular installation.

Produced in Japan ensuring compliance with rigorous manufacturing quality and standards.

This solenoid valve is ideal for use in industrial automation, pneumatic fluid control, manufacturing systems, HVAC applications, and other equipment requiring dependable air flow management.
