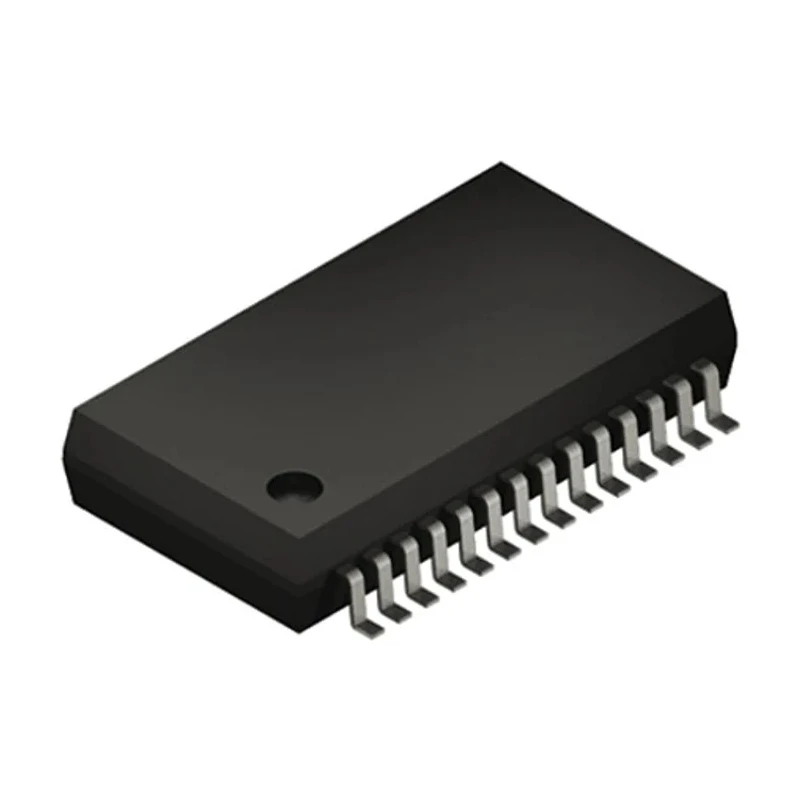

Microchip Analogue Front End AFE 4-Channel 24 bit 125 ksps SPI 28-Pin SSOP MCP3912A1-E/SS

Free Delivery in India | Lowest Global Shipping Charges

Microchip Analogue Front End AFE 4-Channel 24 bit 125 ksps SPI 28-Pin SSOP MCP3912A1-E/SS

Name: Microchip Analogue Front End AFE 4-Channel 24 bit 125 ksps SPI 28-Pin SSOP MCP3912A1-E/SS
Brand: Microchip
SKU: 382404
Price: 6.25 USD
Availability: InStock



Category Analogue Front End Brand Microchip Condition New

Specifications

Country of Origin	India
Resolution	24 bit
Brand	Microchip
Height	1.85mm
Length	10.5mm
Model	MCP3912A1-E/SS
Mount Type	Surface
Sampling rate	125ksps
Series	MCP3912
Maximum Operating Temperature	125°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Number Of Channels	4
Interface Type	SPI
Standards/Approvals	RoHS
Pin Count	28
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	2.7V
Number of ADCs	4

Key Features

Features 4 analog-to-digital converters (ADCs) for multi-channel measurements.
Offers 24-bit resolution ensuring high accuracy data conversion.
Operates at a sampling rate of 125 kilo samples per second for rapid signal acquisition.
Uses SPI interface for efficient digital communication with microcontrollers.
Encased in a compact 28-pin SSOP package suitable for surface mounting applications.
Compatible with a minimum supply voltage of 2.7 volts and maximum up to 3.6 volts.
Works reliably in operating temperatures ranging from -40°C to 125°C.
Complies with RoHS standards ensuring environmental safety.

Product Description

Microchip MCP3912A1-E/SS is a high precision Analogue Front End (AFE) designed for energy and power measurement applications. Featuring 4 high-resolution 24-bit ADC channels, this device captures analog signals with great accuracy. It supports a sampling rate of 125 ksps ensuring rapid and precise data acquisition.

This model operates through a Serial Peripheral Interface (SPI) facilitating seamless communication with digital systems such as microcontrollers or digital signal processors. The AFE is housed in a 28-pin SSOP surface mount package, enabling compact PCB designs and ease of integration.

Power supply requirements are minimal with an operating voltage range between 2.7 V and 3.6 V, making it suitable for varied embedded applications. The device endures harsh environmental conditions, supporting operation from -40°C to +125°C, suitable for industrial and commercial electronics.

Built with compliance to RoHS standards, this analogue front end aligns with environmental regulations for safe electronic assemblies. It forms part of the MCP3912 series, widely recognized for energy measurement ICs.

Features 4 ADCs for effective multi-channel sensing. Provides 24-bit resolution for accurate analogue-to-digital conversion. Supports 125 ksps sampling rate for fast and reliable data capture. Uses SPI digital interface to easily connect with host controllers.

Housed in a 28-pin SSOP package for reliable surface mount installation. Operates with supply voltages ranging from 2.7 to 3.6 volts. Operates reliably across -40°C to 125°C temperature range. RoHS compliant ensuring environmentally friendly design.

Optimized for energy and power measurement in industrial and commercial systems. Compact and robust IC suitable for various analogue front end applications.

This product is suited for industrial electronics, embedded system development, and power monitoring instrumentation. Explore more Analogue Front End ICs and semiconductor solutions on EnvMart for your design and manufacturing needs.
