Banner Block Ultrasonic Proximity Sensor M18 x 1 Threaded 500mm Detection 25mA PNP Output 3V-30V dc QS18UPA

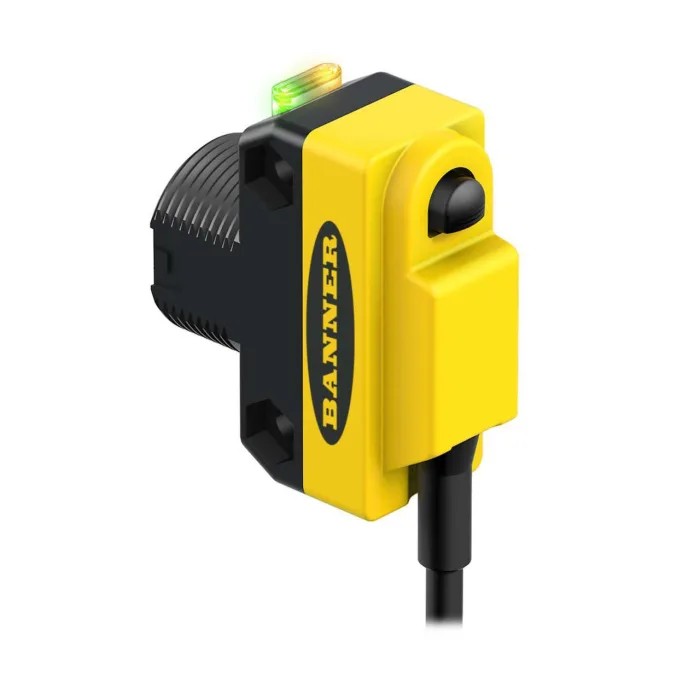

Banner QS18UPA Block Ultrasonic Proximity Sensor QS18U model offers high-precision proximity detection with a maximum detection distance of 500 mm. Its compact block-style ABS housing with threaded M18 x 1 mount enables easy integration in tight industrial environments.

This sensor operates on a supply voltage range of 3V to 30V DC, delivering a PNP output type with a maximum switching current of 25mA. The device supports a maximum switching frequency of 300 kHz with a rapid response time of 15 milliseconds, making it suitable for fast automation processes. It utilizes a push button interface for simple programming and installation without potentiometer adjustments.

The sensor also features an IP67 ingress protection rating, ensuring dust-tight and water-resistant operation within harsh industrial settings. It is designed to withstand operating temperatures from -20°C to 60°C with temperature compensation, providing reliable performance in a variety of temperature conditions.

Body dimensions are 33.5 mm length, 15 mm width, and 35 mm depth. The robust housing material is ABS plastic, balancing durability and lightweight properties. Industry approvals include NEMA 6P, IEC/IP68, UL Type 1, IEC 947-5-2, and Military Standard 202F, indicating compliance with stringent performance and reliability standards.

Typical applications include industrial automation, manufacturing lines, conveyor systems, and control gear where precise non-contact proximity sensing is critical. Its compact size and flexible mounting options make it suitable for use in crowded electrical cabinets and machinery.

The sensor features a threaded M18 x 1 body and a block style housing. Output is PNP type with a max switching current of 25mA. Operates at 3 V to 30 V DC supply voltage within an IP67 rated ABS housing. Has a maximum switching frequency of 300 kHz and a fast response time of 15 ms.

Operating temperature range is from -20°C to 60°C with temperature compensation. Body dimensions are 33.5 mm length, 15 mm width, and 35 mm depth. Easy installation with a push button interface and threaded mount. Designed for industrial automation, manufacturing, and control applications.

Complies with NEMA 6P, IEC/IP68, UL Type 1, IEC 947-5-2, and Mil. Std. 202F standards. Explore the full Banner sensor range on EnvMart for advanced automation and sensing solutions.
