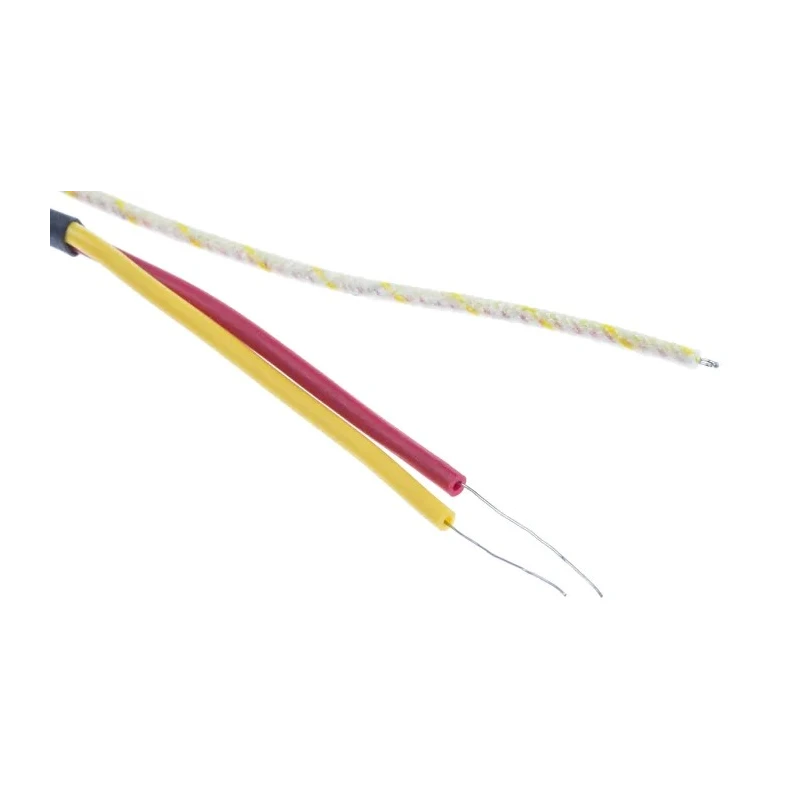

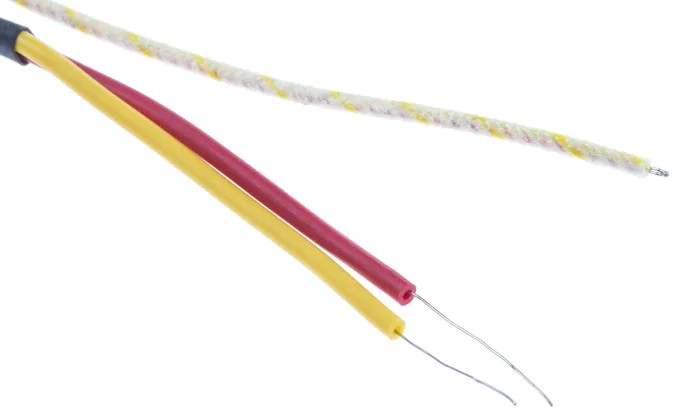

RS PRO Type K Exposed Junction Thermocouple 5 m Length Fibreglass Probe, Bare Wire Tail 847-9700
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Temperature range | -60º C to +350º C (short periods up to 400º C) |
| Model | 847-9700 |
| Probe Material | Fibreglass |
| Cable Length | 5m |
| Thermocouple Type | K |
| Probe length | 5m |
| Series | RS PRO |
| Terminal type | Bare Wire Tail |
| Standards/Approvals | ANSI, RoHS Compliant |
| Maximum Temperature Sensed | +350°C |
| Minimum Temperature Sensed | 60°C |
| RS PRO Type K Exposed Junction Thermocouple 10 m Length, → +350 °C MaxBrand | RS PRO |
Key Features
- Type K thermocouple with exposed welded tip for fast response.
- Probe and cable length of 5 meters with fibreglass insulation.
- Bare wire tail terminal allows flexible connection options.
- Temperature range suitable for testing and development applications.
- Compliant with ANSI standards and RoHS certified.
- Ideal for industrial temperature sensing outside fluid environments.
- Robust glassfibre insulated flat pair cable with 1/0.3mm conductors.
- Operates reliably up to 350 °C, short periods up to 400 °C.
Product Description
RS PRO 847-9700 Type K Exposed Junction Thermocouple features a 5 meter long fibreglass insulated probe with an exposed welded tip for rapid temperature sensing. The bare wire tail terminal type provides versatility in connectivity to measurement instrumentation and control systems.
This thermocouple operates effectively in the temperature range from 60 °C minimum up to a maximum of +350 °C under continuous use, with short-term resistance up to 400 °C. The probe cable consists of a flat pair fibreglass insulated cable with 1/0.3 mm conductors, designed for good temperature resistance but is not suitable for immersion in fluids.
Standards compliance includes ANSI MC96.1 and RoHS directives, making it suitable for environmentally conscious industrial and laboratory applications. This thermocouple is widely applicable in test and development environments demanding fast and accurate temperature measurements.
Type K thermocouple with exposed welded junction for fastest response. 5 meter probe and cable length with durable fibreglass insulation. Bare wire tail terminals for easy wiring to measurement devices. Temperature range from -60 °C to +350 °C with short periods up to 400 °C.
Conforms to ANSI standards and RoHS compliance. Not suitable for fluid immersion, ideal for air and surface measurements. 1/0.3 mm conductor size ensures signal integrity. Manufactured in the United Kingdom under RS PRO series quality assurance.
RS PRO products offer reliable sensing components for industrial automation, test labs, HVAC systems, manufacturing process control, and other precision temperature measurement needs.
Explore RS PRO Thermocouples and sensors at EnvMart to find the right solution for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This Type K thermocouple operates effectively in the temperature range from -60 °C to +350 °C, with short-term resistance up to 400 °C.
The probe and cable length of this model is 5 meters.
The probe is insulated with fibreglass, providing good temperature resistance.
It features a bare wire tail terminal type, allowing for flexible connection options.
Yes, it is compliant with ANSI MC96.1 standards and RoHS directives.
It is suitable for industrial temperature sensing, particularly in air and surface measurements, and is ideal for test and development environments.
The cable consists of 1/0.3 mm conductors, designed to ensure signal integrity.
No, this thermocouple is not suitable for immersion in fluids; it is designed for air and surface measurements only.
It is manufactured in the United Kingdom under RS PRO series quality assurance.
The maximum temperature it can sense continuously is +350 °C.
The minimum temperature that this thermocouple can sense is -60 °C.
This model is a Type K thermocouple, known for its fast response due to the exposed welded junction.
