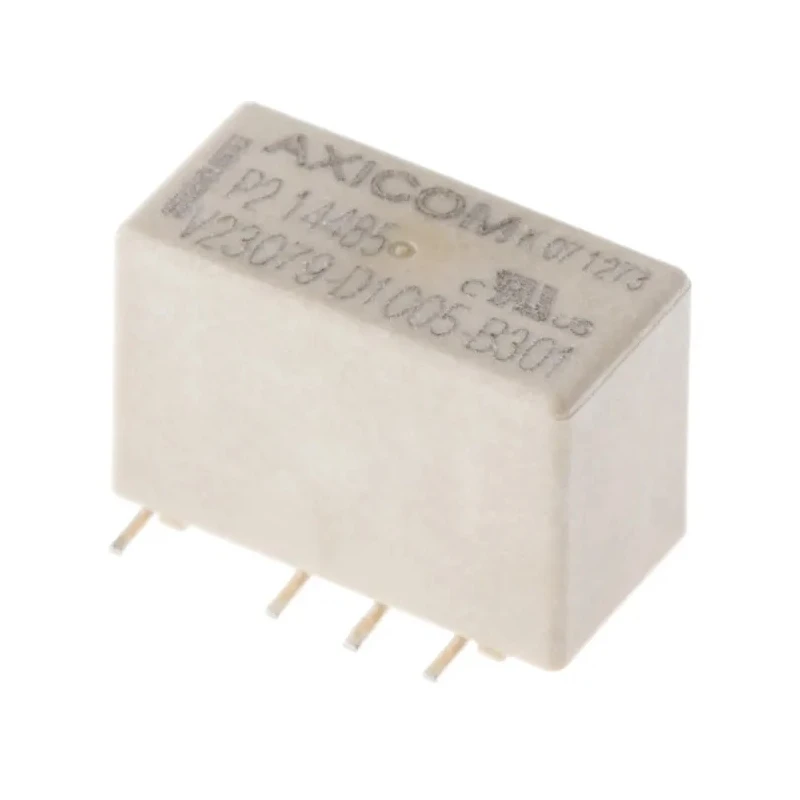

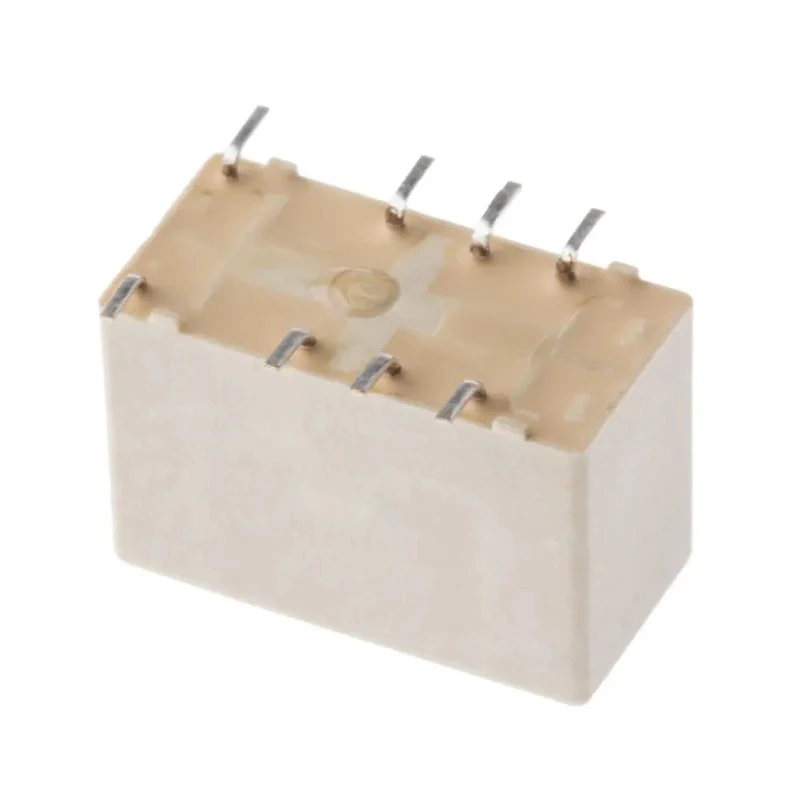

TE Connectivity Surface Signal Relay 24V Coil, 2A Switching Current, DPDT Contact Configuration 5-1393788-8

TE Connectivity 5-1393788-8 Surface Signal Relay is a miniature, high sensitivity relay from the P2 V23079 Series designed for precise telecom and signal conditioning applications. It operates at a coil voltage of 24V and is built with a DPDT (Double Pole Double Throw) contact configuration, ideal for switching applications that require reliability and compact size.

This relay offers a switching current of 2A and supports switching AC voltages up to 250V AC and DC voltages up to 220V DC. The coil resistance is 4100Ω with a coil power consumption of only 140mW, allowing low power operation suitable for energy-efficient designs. The contact materials are gold plated, providing high reliability and reduced contact resistance for precise signal transmission.

Its compact dimensions of 14.5mm length, 7.2mm width, and 10.4mm height make it suitable for surface mounting where space is limited. The relay is engineered to withstand harsh environments with a minimum operating temperature of -40°C and a maximum of 85°C. The insulation resistance exceeds 10⁹ Ω at 500V DC, and the device meets rigorous surge capability standards Telcordia TR-NWT-001089 (2/10 μs) and IEC 60950 (10/700 μs), ensuring robust performance under transient conditions.

Additionally, the relay is immersion cleanable (RTIII), has an IP67 rating, and carries a V-0 flammability classification, making it durable and safe for various industrial and commercial applications.

This product is compliant with REACH and RoHS regulations, reflecting a commitment to environmental safety and hazardous substance restrictions. Made in the Czech Republic, the relay is suitable for applications in communications equipment such as PABX and VOIP systems, consumer electronics including set-top boxes and HiFi equipment, office apparatus, control systems, medical equipment, and automotive electronics.

TE Connectivity's 5-1393788-8 Surface Signal Relay offers a reliable and compact switching solution optimized for industrial, telecommunications, consumer electronics, and automotive sectors.

Compact surface mount relay designed for space-saving installations. Operates with a coil resistance of 4100Ω and coil power of 140mW. Bifurcated gold plated contacts ensure reliable signal transmission. Rated for switching currents up to 2A and switching voltages up to 250V AC or 220V DC.

Wide operating temperature range from -40°C to 85°C for harsh environments. Complies with REACH and RoHS standards for hazardous substances. Robust insulation resistance of greater than 10⁹ Ω at 500V DC. Meets surge capability standards Telcordia TR-NWT-001089 and IEC 60950.
