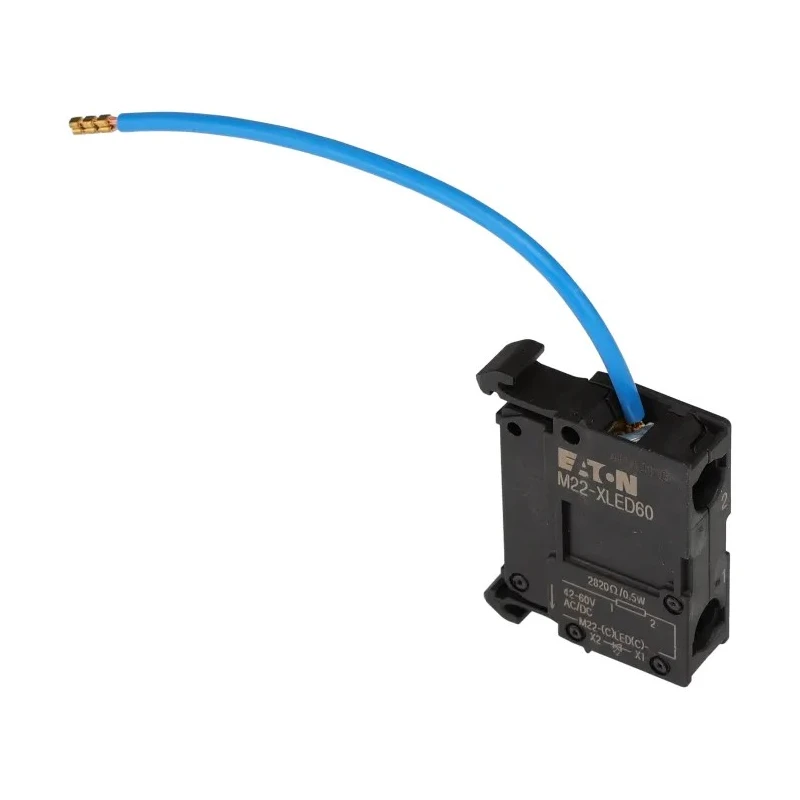

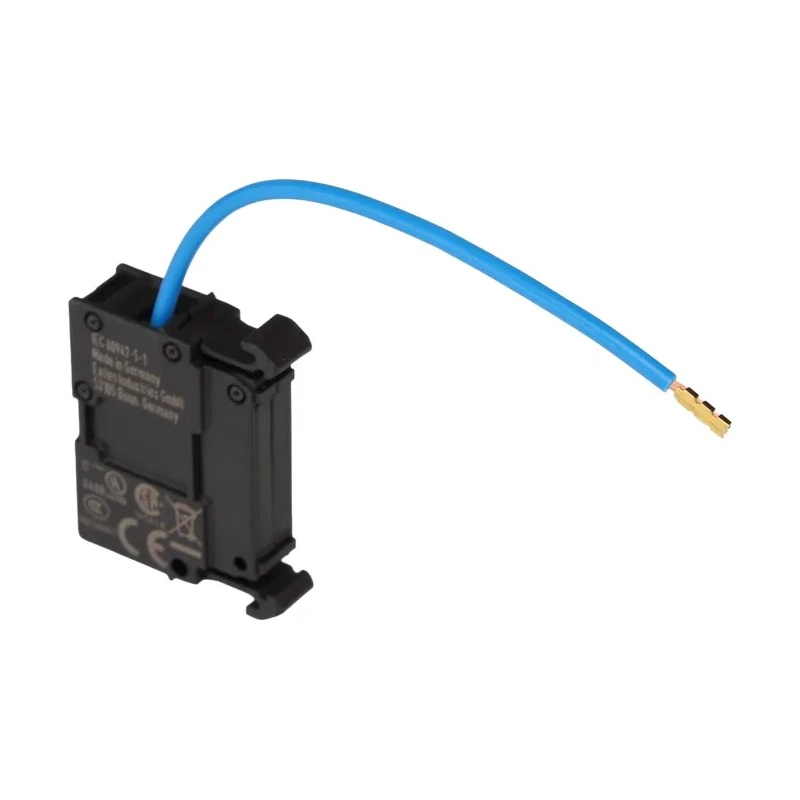

Eaton RMQ Titan M22 Series Resistor Element Light Block 42V AC/DC Screw Terminal 30mm Height 10mm Width 231078 M22-XLED60

The Eaton 231078 M22-XLED60 is a Resistor Element Light Block designed specifically for the RMQ Titan M22 series of push button components. This resistor element supports both AC and DC voltages ranging from 42V to 60V, making it suitable for diverse electrical and automation applications. It provides an essential function in circuits that include LED elements rated between 12V and 30V, serving as a durable accessory that ensures proper operation and protection of LED components.

This unit features screw terminal connections for straightforward, secure wiring and installation, enhancing reliability in demanding industrial environments. It maintains performance across ambient temperatures from -25°C up to 70°C, making it ideal for use in a variety of operational conditions often encountered in manufacturing, automation, and electrical control systems.

With its compact size of 30mm height, 10mm width, and 37mm length, the resistor element integrates easily into pushbutton assemblies and light blocks. It is manufactured to comply with internationally recognized standards such as IEC 60947-5 and CSA certifications, reaffirming its suitability and safety in industrial automation contexts.

This resistor element is not equipped with LED technology itself but complements LED-equipped pushbutton components by managing voltage and protecting circuit integrity. It is especially useful in control circuits, enhancing functionality and reliability in installations requiring pushbutton and illuminated control compatibility.

Supports voltage range of 42 to 60V AC/DC for versatile industrial use. Designed to operate with 12 to 30V LED components in control panels. Screw terminal connection for secure and easy wiring. Wide operating temperature range: -25°C to 70°C.

Compact dimensions for easy integration: 30mm height, 10mm width, 37mm length. Meets multiple international standards and certifications. Compatible with various pushbutton actuators and illuminated controls. Serves as an accessory resistor element for LED pushbutton blocks.

Ideal for electrical and industrial automation applications.

This Eaton resistor element is a critical part of industrial electrical systems, especially where LED indicators and pushbutton switches require reliable resistor components to ensure operation safety and performance longevity. It is well-suited for use in manufacturing plants, automation lines, and other industrial control panels.
