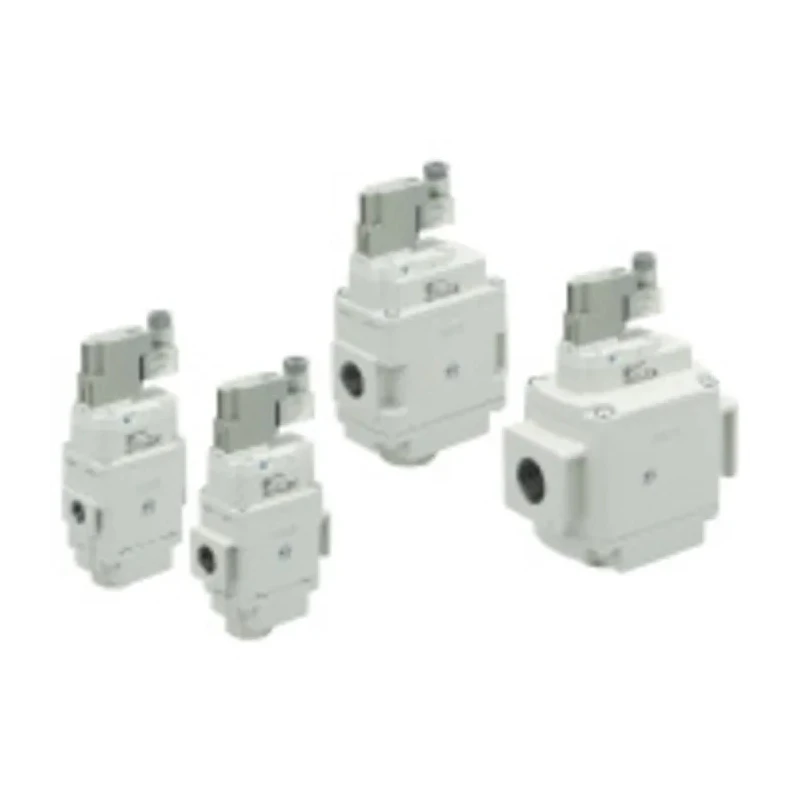

SMC Pneumatic Solenoid Valve Start-Up Valve G Series 24V dc 3/8 in Port Size AV3000-F03-5DZB-A

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve Start-Up Valve G Series 24V dc 3/8 in Port Size AV3000-F03-5DZB-A



Category Pneumatic Solenoid Valves Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	1 Mpa
Height	76mm
Length	149.5mm
Model	AV3000-F03-5DZB-A
Width	40mm
Mount Type	Stand Alone
Series	AV
Number Of Ports	2
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	3
Port Size	3/8 in
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	0°C
Actuation Type	Start-Up Valve
Maximum Flow Rate	3269L/min
Standards/Approvals	CE
Connection Thread Standard	G
Minimum Pilot Pressure	0.2MPa
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	0.35W

Key Features

Operates at 24V DC with a single solenoid consuming only 0.35W.
Has a 3-position, 2-port configuration with threaded female G3/8 ports.
Maximum operating pressure is 1 MPa, with maximum flow rate of 3269 L/min.
Features nitrile rubber seals resistant to common compressed-air contaminants.
Constructed with a die cast aluminium body ensuring durability and lightweight design.
Operates reliably in temperature range from 0°C to 50°C.
Includes a DIN connector electrical interface with integrated surge suppression.
Manual override allows mechanical actuation without power.

Product Description

SMC AV3000-F03-5DZB-A is a pneumatic solenoid valve specifically engineered for controlled start-up air supply management in industrial control systems. It is designed to provide precise initiation of airflow with very low electrical power consumption, making it highly efficient for automated and mechanical applications.

This valve features a 3-position and 2-port design with threaded female G3/8 connections that facilitate straightforward panel and tubing installation. The die cast aluminium body ensures a robust yet lightweight assembly, while nitrile rubber seals offer excellent resistance against common compressed air contaminants, enhancing longevity and reliability.

The valve operates at 24V DC voltage and consumes only 0.35 watts, lowering energy demand in pneumatic systems. It is capable of operating at pressures up to 1 MPa and flows up to 3269 L/min, supporting rapid actuation and effective pneumatic control. The operating temperature range of 0°C to 50°C suits industrial environments with moderate conditions.

Equipped with a DIN type electrical connector with integrated light and surge voltage suppression, the AV3000-F03-5DZB-A valve is optimized for ease of monitoring and reliable switching. For safety and operational flexibility, a push-locking slotted manual override allows mechanical actuation if electrical power is not available.

This valve is well suited for use in automated assembly and handling lines, pneumatic machine start-up sequences, and air supply regulation in instrumentation racks where space and low power consumption are important. Compliance with CE standards and manufacturing in Japan underline its quality and reliability.

Operates at 24V DC with minimal electrical consumption for energy efficiency. High flow capacity of 3269 L/min allows rapid pneumatic response. Robust die cast aluminium body provides both strength and reduced weight. Nitrile rubber seals ensure resistance and durability against air contaminants.

Threaded female G3/8 ports enhance ease of installation and connectivity. Temperature and pressure ratings support reliable operation in diverse industrial settings. DIN electrical connector with surge suppression for secure and monitored operation.

Manual override allows operation without electrical power to increase safety. Designed for pneumatic start-up control in industrial automation and instrumentation.

This SMC pneumatic start-up valve offers a compact solution tailored for use in various industrial fluid power and pneumatic applications. Explore more in the Pneumatic Solenoid Valves category on EnvMart for complementary pneumatic components and solenoid valve options.
