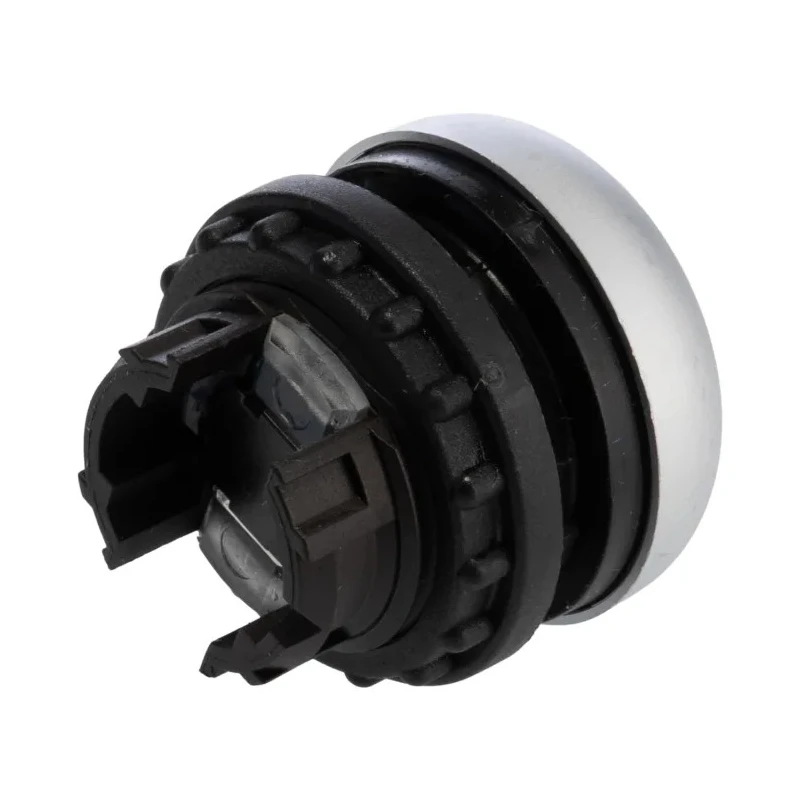

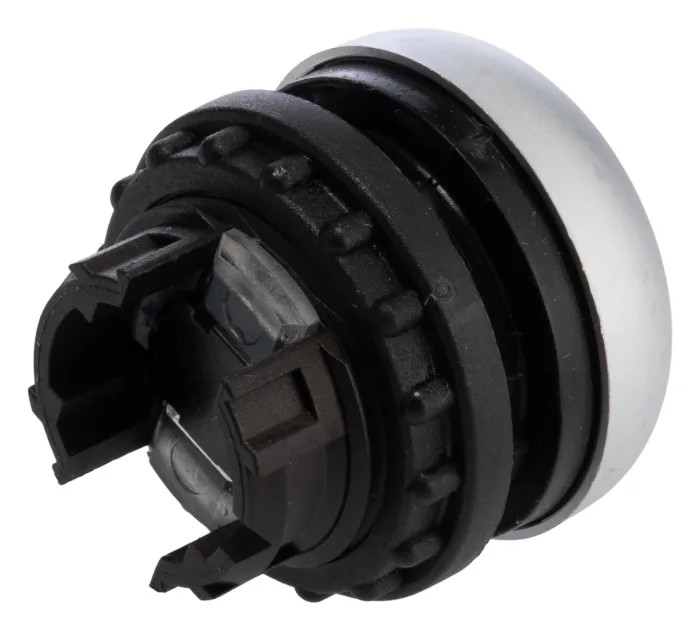

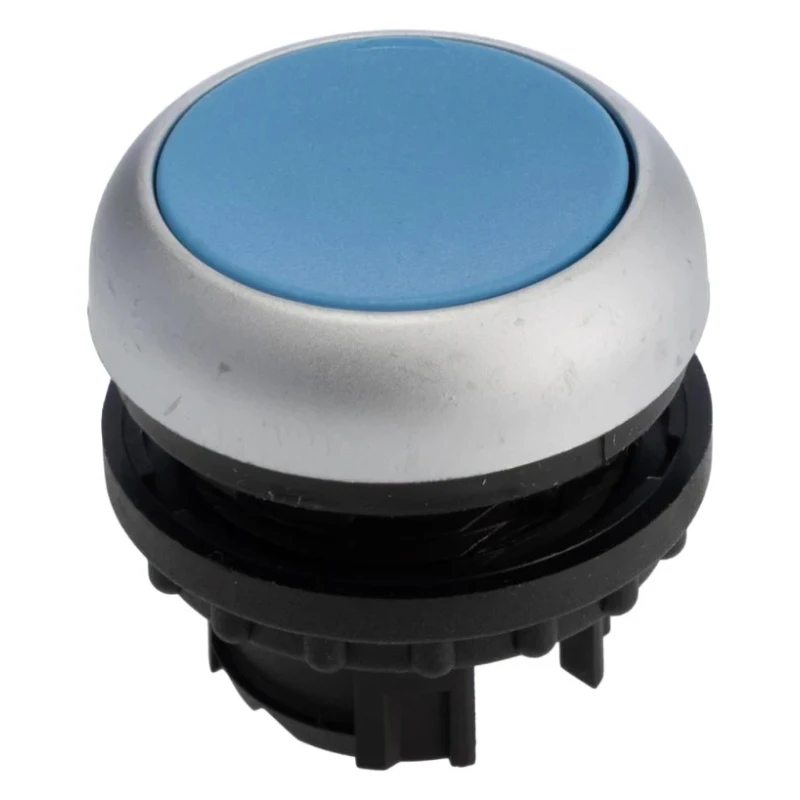

Eaton RMQ Titan M22 Series Blue Maintained Push Button Head 22 mm Cutout IP67 216623 M22-DR-B

The Eaton 216623 M22-DR-B RMQ Titan M22 Series Blue Maintained Push Button Head is a high-quality control device designed for demanding industrial environments. With a cutout diameter of 22 mm, this push button head is constructed from durable plastic material that provides excellent resistance to corrosive chemicals and physical impacts. The round blue push button with a diameter of 29.7 mm is easy to operate and suitable for applications requiring maintained actuation, delivering steady and dependable control without the need for constant pressure.

Offering an exceptional IP67 ingress protection rating, the push button head is dust-tight and capable of withstanding temporary immersion in water up to 1 meter, making it suitable for use in harsh and wet environments. Its mechanical lifespan of one million operations ensures long-term performance even in high-usage scenarios, with the ability to sustain up to 1800 operations per hour.

Temperature tolerance ranges from -25°C to +70°C, allowing for stable performance across a wide range of industrial and commercial settings. The push button complies with an array of internationally recognized standards including CSA-C22.2 No. 14-05, CE marking, IEC 60068 series, IEC/EN 60529, IEC/EN 60947-5, and UL 508, providing assurance of quality, safety, and reliability.

This product is ideal for integration into control panels, medical devices, HVAC systems, and other automation solutions requiring high operational reliability and robust user interface components. The push button head is unmarked, maintaining a clean aesthetic suitable for diverse applications. Note that the body/fixing collar is not included with this unit.

This push button head features a robust plastic construction for durability. The blue round push button has a diameter of 29.7 mm for easy actuation. Maintained operation mode provides precise and stable control. It is rated IP67 for complete dust-tight protection and water immersion resistance.

Designed to withstand mechanical operations up to 1 million cycles. Suitable for use in control panels, medical equipment, and HVAC systems. The device operates reliably in temperatures from -25°C to +70°C. Complies with multiple standards including CSA, CE, IEC, and UL certifications.
