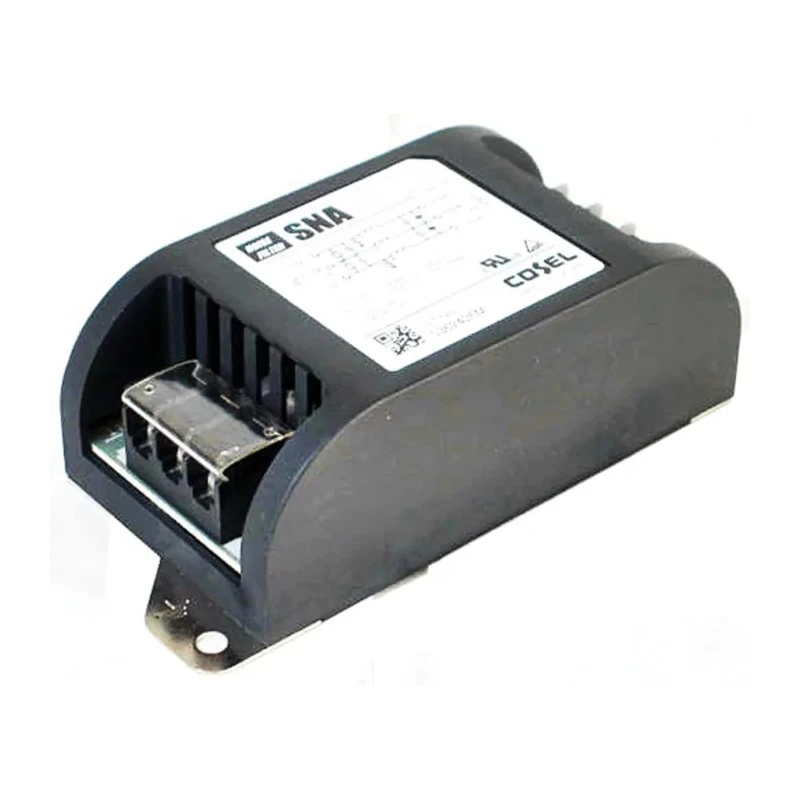

Cosel DIN Rail RFI Filter 6A 50V DC Screw Termination 1 Phase SNA-06-223-DT

Free Delivery in India | Lowest Global Shipping Charges

Cosel DIN Rail RFI Filter 6A 50V DC Screw Termination 1 Phase SNA-06-223-DT

Name: Cosel DIN Rail RFI Filter 6A 50V DC Screw Termination 1 Phase SNA-06-223-DT
Brand: Cosel
SKU: 381367
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Cosel Condition New

Specifications

Country of Origin	Japan
Brand	Cosel
Height	112mm
Length	52mm
Model	SNA-06-223-DT
Depth	44mm
Mount Type	DIN Rail
Series	SNA
Maximum Operating Temperature	71°C
Number Of Stages	1
Resistance	50mΩ
Capacitance	22nF
Minimum Operating Temperature	-40°C
Maximum Current	6A
Number of Phases	1
Leakage Current	2.5mA
Maximum Voltage	50V dc
Standards/Approvals	EN60950-1
Termination Style	Screw

Key Features

Supports maximum current of 6 amperes and maximum voltage of 50 volts DC.
Equipped with screw termination for secure electrical connections.
Designed for DIN Rail mounting to facilitate easy installation in industrial systems.
Single-phase, single-stage RFI filter optimized for analog circuits.
Capacitance value of 22 nanoFarads ensures effective noise filtering.
Operating temperature range from -40°C to 71°C for reliability in varied environments.
Low resistance of 50 milliohms minimizes power loss and heating.
Leakage current rated at 2.5 milliamperes for efficient operation.

Product Description

Cosel SNA-06-223-DT is a DIN Rail mounted RFI filter designed to attenuate ripple noise in switch mode power supplies operating up to 6A current and 50V DC voltage. This filter is especially suitable for sensitive analogue circuits such as operational amplifier power supplies.

Featuring screw termination style, it ensures firm and reliable electrical connections in industrial and commercial applications. Its single-phase, single-stage design effectively reduces interference and enhances the stability of power systems.

The device has a capacitance of 22nF and supports an operating temperature range from -40°C to 71°C, making it suitable for harsh environmental conditions. Its low resistance of 50mΩ helps to minimize power loss, and the leakage current is kept to a nominal 2.5mA.

With compact dimensions of 52mm length, 112mm height, and 44mm depth, it is optimized for space-constrained DIN rail installations. The filter is compliant with EN60950-1 safety standards, reinforcing its reliability and quality assurance.

Supports maximum current of 6 amperes and voltage of 50 volts DC. Screw terminal connections ensure secure fitting and durability. DIN Rail mount type facilitates standardized installation. Single-phase, single-stage filter optimized for analog circuits.

22nF capacitance provides efficient noise suppression. Wide temperature operating range from -40°C to 71°C. Low 50mΩ resistance reduces energy loss during operation. Leakage current limited to 2.5mA enhances efficiency. Compact dimensions fit well in constrained spaces.

Compliance with EN60950-1 standards guarantees safety and performance.

This Cosel RFI filter is ideal for application in industrial, laboratory, and commercial switch mode power supply systems requiring electromagnetic interference reduction and enhanced power quality. Its durability and compact DIN rail form factor make it a preferred choice for engineers seeking reliable and efficient noise filtering solutions.
