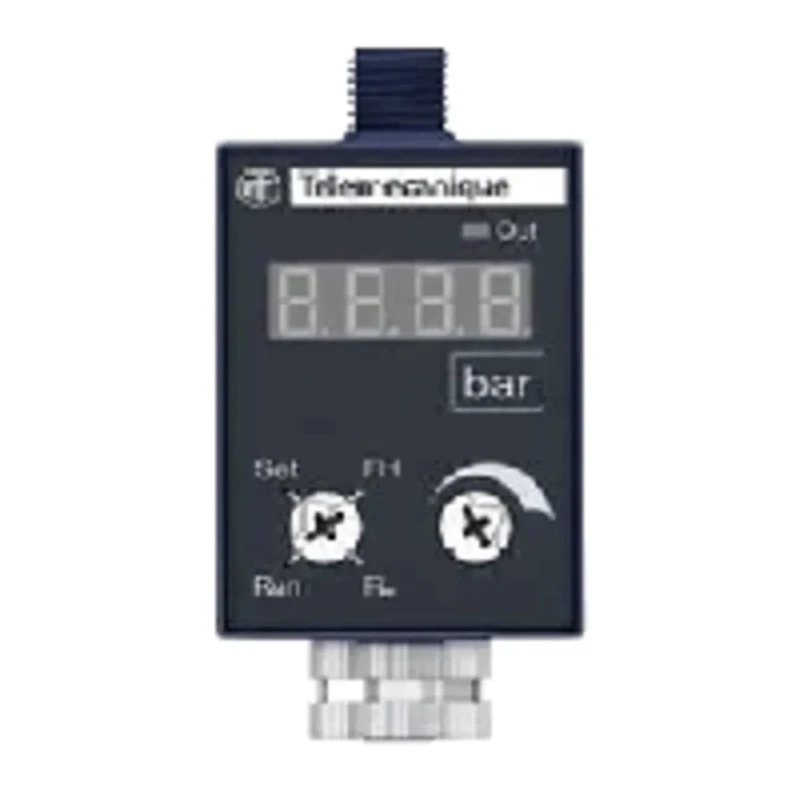

Telemecanique Sensors ZMLPA1P2SH Pressure Sensor PNP NO/NC Analogue 4 to 20 mA Output -14.5 to 6000 bar ZMLPA1P2SH
Specifications
| Country of Origin | France |
|---|---|
| Accuracy | ±1 % |
| Output | M12 male, 4 pin |
| Brand | Telemecanique Sensors |
| Response time | 5ms |
| Model | ZMLPA1P2SH |
| Certifications | cULus |
| IP Rating | IP69K, IP67, IP65 |
| Housing Material | Polyester, Polybutylene Terephthalate |
| Analog Output | 4...20 mA |
| Output type | PNP NO/NC, Analogue, 4 to 20 mA |
| Series | ZMLPppp |
| Maximum Operating Temperature | 70°C |
| Digital Output | PNP or NPN |
| Minimum Operating Temperature | -25°C |
| Terminal type | M12 Connector |
| Interface Type | 4-Pin Connector |
| Standards/Approvals | US, cULus, CE |
| Maximum Pressure Measurement | 6000bar |
| Minimum Pressure Measurement | -14.5bar |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 17V |
| Media Measured | Fluid |
| Displayed value range | -14,5 to 6000 with 27 selectable value ranges |
| Electrical connection input | M12 female, 4 pin |
| Telemecanique Pressure Sensor, -14.5bar Min, 6000bar Max, PNP OutputBrand | Telemecanique |
Key Features
- Measures maximum pressure up to 6000 bar and minimum pressure down to -14.5 bar.
- Provides accurate pressure readings with ±1% accuracy.
- Equipped with PNP NO/NC digital output and 4 to 20 mA analogue output for versatile signal integration.
- Features robust housing made of polyester and polybutylene terephthalate materials.
- Operates with a supply voltage range from 17 V to 24 V DC.
- Response time is fast at 5 milliseconds, suitable for dynamic pressure monitoring.
- Includes an M12 4-pin connector for both electrical input and output connections.
- Rated for operating temperatures between -25°C and 70°C and protected with IP65, IP67, and IP69K ingress protections.
Product Description
Telemecanique Sensors ZMLPA1P2SH is a high precision pressure sensor designed for industrial applications requiring accurate, reliable pressure and vacuum monitoring and control. This model supports a wide pressure measurement range from -14.5 bar vacuum to a maximum of 6000 bar, accommodating various fluids and hydraulic systems.
The sensor outputs both digital signals (PNP normally open or normally closed) and analogue current signals (4 to 20 mA), enabling flexible interfacing with control systems, PLCs, and data acquisition devices. The compact and robust design features a housing constructed of durable polyester and polybutylene terephthalate materials, ensuring strong resistance to harsh industrial environments.
The device operates with power supply voltage between 17 and 24 V DC, and it has a rapid response time of 5 ms, suitable for time-sensitive industrial automations. The M12 4-pin connectors for electrical input and output simplify wiring and enhance reliability in connections.
The Pressure Sensor meets rigorous industry standards with certifications from US, cULus, and CE. It is rated for IP65, IP67, and IP69K ingress protection, guaranteeing resistance against dust and high-pressure water jets, thus suited for demanding conditions in industrial automation, manufacturing, hydraulic equipment, HVAC systems, and water treatment plants.
Maximum pressure measurement range of 6000 bar. Minimum pressure measurement range of -14.5 bar. High accuracy of ±1% for precise control and monitoring. PNP digital outputs configurable as normally open or normally closed.
4 to 20 mA analogue output standard in industrial sensors. Durable housing materials resistant to corrosion and mechanical wear. Wide operating temperature range from -25°C to 70°C. Robust ingress protection IP65, IP67, and IP69K standards.
This model is ideal for integration in industrial environments requiring compact, reliable, and accurate pressure sensing solutions. Its advanced features support fluid pressure measurement, vacuum monitoring, and process control equipment.
Explore more sensors and automation components in the Electronics & Electricals category on EnvMart for comprehensive system design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure measurement range is 6000 bar.
It can measure a minimum pressure of -14.5 bar.
The accuracy of this sensor is ±1%.
It provides PNP normally open/normally closed digital outputs and a 4 to 20 mA analogue output.
The response time is 5 milliseconds, making it suitable for dynamic pressure monitoring.
It operates within a temperature range of -25°C to 70°C.
It includes an M12 4-pin connector for both electrical input and output connections.
The housing is made of polyester and polybutylene terephthalate materials.
It is rated for IP65, IP67, and IP69K ingress protection.
It meets certifications from US, cULus, and CE.
The supply voltage range is from 17 V to 24 V DC.
This model is designed to measure fluid media.
