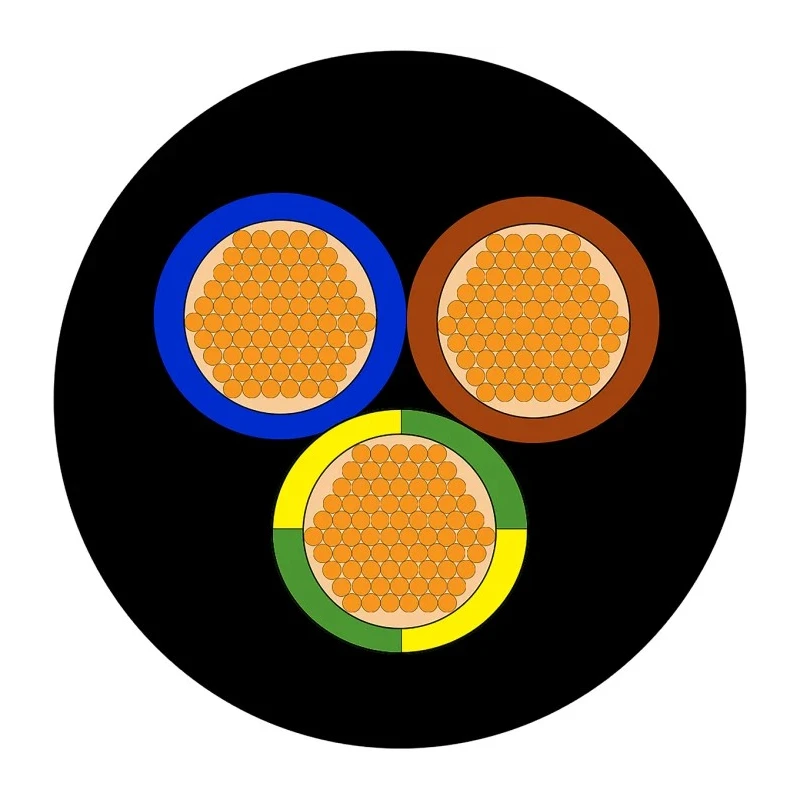

RS PRO 3 Core Power Cable 1.5mm² 90 °C 100 m Cross Linked Copper Stranded H07ZZ-F 750V 836-0690
Specifications
| Country of Origin | Turkey |
|---|---|
| Voltage | 750V |
| Brand | RS PRO |
| Model | 836-0690 |
| Cable Length | 100m |
| Outside diameter | 11.9mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 3 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -5°C |
| Jacket Material | Cross Linked |
| Standards/Approvals | Euroclass Eca |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH) |
| Conductor Type | Stranded |
| Number of Strands | 27 |
| Core Strands | 27 x 0.25mm |
| Size of Strands | 0.25mm |
| Cable CSA | 1.5mm² |
Key Features
- Low smoke zero halogen (LSZH) insulation for minimal fire hazard.
- Suitable for indoor and outdoor installations.
- Stranded copper conductor of 1.5mm² cross-sectional area enhances flexibility.
- Complies with Euroclass Eca and multiple international safety standards.
- Outer diameter of approximately 11.9mm for easy routing and installation.
- Flexible stranded conductor with 27 strands of 0.25mm diameter each.
- Cable length is 100 meters on the reel.
- Manufactured in Turkey ensuring quality and reliability.
Product Description
RS PRO 836-0690 3 Core Power Cable 1.5mm² with a cross-linked compound sheath and stranded copper conductors is engineered for industrial and commercial power applications requiring robust fire safety standards. Rated for 750V and maximum operating temperature of 90°C, this low smoke zero halogen (LSZH) cable minimizes fire risk, smoke, and toxic emissions, protecting life and equipment.
The cable supports both indoor and outdoor use, commonly deployed for supplying mobile power units, UPS installations, stage lighting, and audio-visual equipment. It adheres to rigorous standards including EN 50525-3-21, CENELEC HD22-13, CEI 20-19 Part 13, BS EN/IEC 60332-3, and BS EN 60228, with a Euroclass Eca fire rating.
The conductor consists of 27 strands sized 0.25mm each, providing excellent flexibility and conductivity over the entire 100-meter length. The cable sheath diameter measures 11.9 mm, facilitating neat installations where space and routing are critical.
As a RoHS compliant product manufactured in Turkey, the RS PRO 836-0690 delivers dependable performance while meeting environmental safety directives. Its cross-linked jacket resists mechanical stress and harsh conditions to ensure longevity.
Low smoke zero halogen insulation reduces fire hazard and toxic emissions. Three cores with stranded copper conductors for flexibility and conductivity. Rated voltage 750V suitable for multiple industrial and commercial uses.
Maximum operating temperature of 90°C for safe performance in demanding conditions. Outer diameter of 11.9mm aids installation and routing. Compliant with multiple global electrical safety and emissions standards. 100-meter reel length provides convenient deployment.
Robust cross-linked sheath protects against environmental damage. Manufactured in Turkey assuring quality standards adherence.
This RS PRO Power Cable is ideal for industrial, electrical, HVAC, manufacturing, and automation applications where safety and performance are paramount. Browse the Electronics & Electricals category on EnvMart for compatible wiring and power distribution products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this power cable is 90°C.
This model has a voltage rating of 750V.
It features low smoke zero halogen (LSZH) insulation, which minimizes fire hazards and toxic emissions.
The cable length is 100 meters on the reel.
The outer diameter of the cable is approximately 11.9mm, facilitating easy routing and installation.
This cable has three cores.
The conductor material is copper, specifically stranded copper for enhanced flexibility.
Each conductor consists of 27 strands, with each strand measuring 0.25mm in diameter.
Yes, it is suitable for both indoor and outdoor installations.
It complies with several standards including Euroclass Eca, EN 50525-3-21, and BS EN/IEC 60332-3.
This power cable is manufactured in Turkey.
It is commonly used for supplying mobile power units, UPS installations, stage lighting, and audio-visual equipment.
