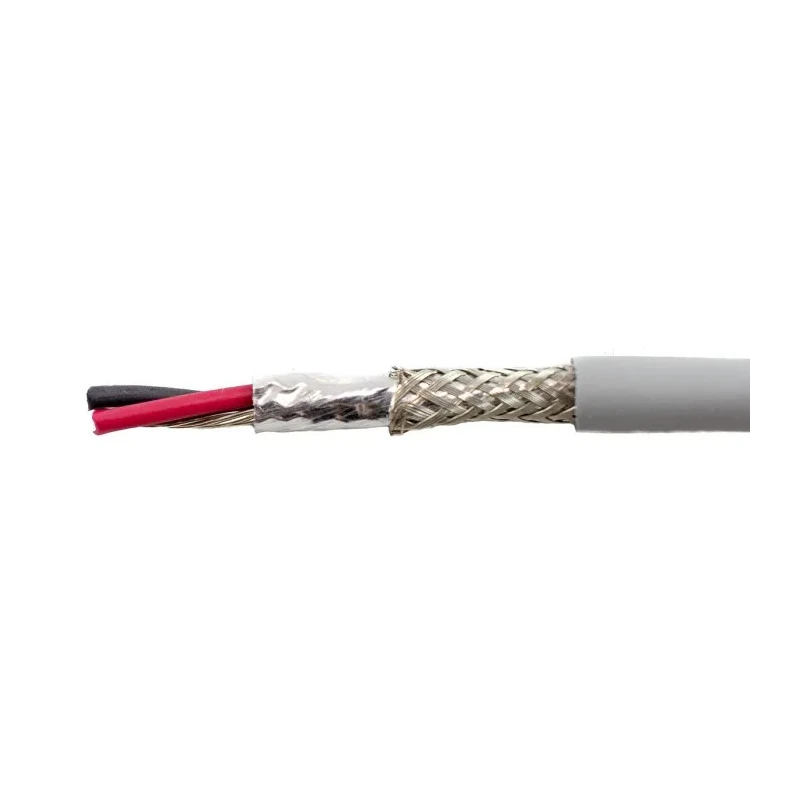

Alpha Wire Ecogen Ecocable Mini Control Cable 2 Cores 0.61mm² 20 AWG Screened 300V 30 m 78342 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 78342 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecocable Mini |
| Outside diameter | 4.39mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.007 (0.18 mm) |
| Nominal Diameter | 0.173 inch (4.39 mm) |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 19 |
| Core Strands | 19 x 0.203mm |
| Size of Strands | 0.203mm |
| Cable CSA | 0.61mm² |
| Conductors | 2, Black, Red |
| Jacket Thickness | 0.015 inch (0.38 mm) |
| Stranding | 19/32 |
Key Features
- The cable uses tinned copper conductors for reliable electrical performance.
- The outer jacket and insulation are made from modified polyphenylene ether for durability and reduced environmental impact.
- Screened with Supra-Shield foil and braid for superior EMI protection.
- Operational temperature range from -40°C up to 80°C suitable for harsh environments.
- Halogen free design ensures low smoke emission during fire.
- This product is 100% recyclable, supporting sustainable installation practices.
- Compliant with CE, CSA, and UL standards for industrial and automation use.
- Nominal diameter of 4.39 mm and 19 strands per conductor for flexibility.
Product Description
Alpha Wire 78342 SL005 Ecogen Ecocable Mini Control Cable is a high-performance screened cable designed for industrial and automation applications. Featuring 2 cores of 20 AWG (0.61mm²) tinned copper strands, this cable operates at 300 Volts and is built with a durable modified polyphenylene ether (mPPE) jacket in grey color, contributing to its lightweight and eco-friendly profile.
The cable length is 30 meters, with a nominal diameter of 4.39 mm and a jacket thickness of approximately 0.38 mm. Its insulation thickness is around 0.18 mm, designed for reliable electrical insulation and mechanical protection.
Alpha Wire Ecogen Ecocable features a Supra-Shield consisting of foil and braid shielding that offers highly effective electromagnetic interference (EMI) mitigation. This makes it ideal for communication and control signal integrity in demanding environments.
The cable meets multiple international standards including CE, UL AWM 21460, UL VW-1, CSA I A/B FT1, RoHS compliance, and REA, ensuring robust safety and performance. Operational temperature ranges from -40°C to +80°C allows application in diverse climates and conditions with zero halogen emissions for enhanced fire safety.
This control cable is optimized for applications in telecommunications, automation systems, electronic circuits, and radio transmitters. Its light construction and halogen-free design reduce environmental impact and improve ease of handling during installation.
The cable includes tinned copper conductors for enhanced conductivity and corrosion resistance. The mPPE jacket material ensures high dielectric properties while being thinner and lighter than conventional PVC cables. Screening with Supra-Shield foil plus braid improves immunity against noise in industrial settings.
The product is halogen-free, limiting smoke and toxic gases in case of fire. 100% recyclable materials promote sustainability in electrical installations. Supports NFPA 79 standards providing safeguards for industrial machinery and operator safety.
Flexible construction with 19 strands x 0.203 mm size conductor wires allows easy routing.
Alpha Wire's Ecogen Ecocable Mini is an industrial-grade control cable for demanding electrical and automation applications, providing reliability, safety, and environmental sustainability. Browse more Industrial and Control Cables from Alpha Wire at EnvMart for your specific project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable operates at a voltage rating of 300V.
The maximum operating temperature is 80°C, allowing it to function in high-temperature environments.
This control cable has a length of 30 meters.
The conductors are made from tinned copper, while the outer jacket is made from modified polyphenylene ether (mPPE).
It features Supra-Shield foil and braid shielding, providing effective electromagnetic interference (EMI) protection.
The nominal diameter of this cable is 4.39 mm.
Yes, this control cable is halogen-free, which reduces smoke emissions during a fire.
It complies with CE, CSA, and UL standards, ensuring it meets safety and performance requirements.
This cable has 2 cores, which are typically colored black and red.
The insulation thickness is approximately 0.18 mm.
It is suitable for telecommunications, automation systems, electronic circuits, and radio transmitters.
The conductors have a stranding configuration of 19 strands of 0.203 mm each.
