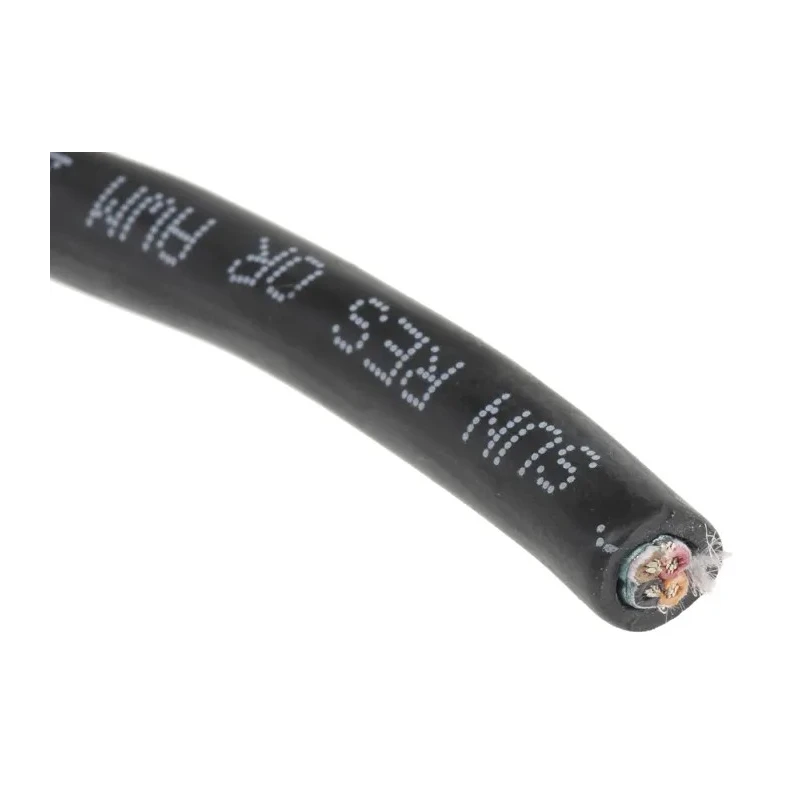

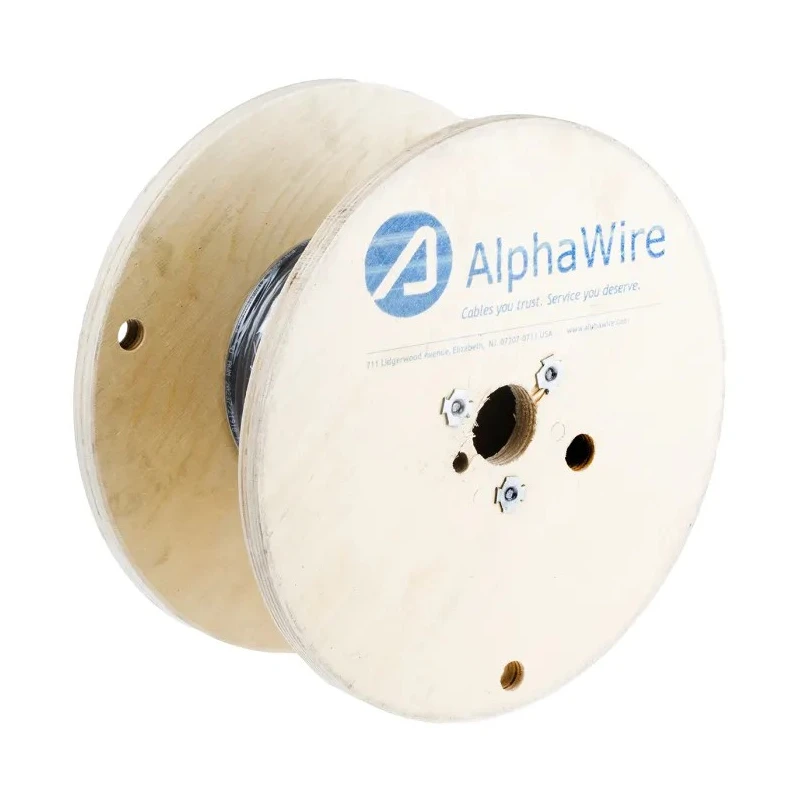

Alpha Wire Control Cable 4 Cores 0.56mm² 20 AWG Screened Thermoplastic Elastomer Jacket 300V 30m 45464 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 45464 BK005 |
| Cable Length | 30m |
| Series | Xtra-Guard 4 Performance Cable |
| Outside diameter | 6.81mm |
| Maximum Operating Temperature | 125°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.016 (0.41 mm) |
| Nominal Diameter | 0.268 inch (6.81 mm) |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Thermoplastic Elastomer |
| Standards/Approvals | CE, CSA, UL |
| Jacket Colour | Black |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 7 |
| Core Strands | 7 x 0.32mm |
| Size of Strands | 0.32mm |
| Cable CSA | 0.56mm² |
| Conductors | 4, Black, Red, White, Green |
| Jacket Thickness | 0.045 inch (1.14 mm) |
| Stranding | 7/28 |
| FIT Heatshrink tubing recommendations | FIT-400 and FIT-600 |
Key Features
- Constructed with tin copper wire conductors for optimal conductivity.
- Jacket made of durable thermoplastic elastomer in black for enhanced flexibility and durability.
- Screened design provides protection against electromagnetic interference.
- Operating temperature range from -50°C to 125°C suitable for extreme environments.
- Complies with CE, CSA, and UL standards for quality assurance.
- Cable diameter is 6.81 mm with 7 strands of 0.32 mm each strand.
- Recommended FIT heat shrink tubing models are FIT-400 and FIT-600.
- Excellent resistance to oil, water, chemicals, abrasion, and ultraviolet light.
Product Description
Alpha Wire 45464 BK005 control cable features 4 cores with 0.56mm² 20 AWG tin copper wire conductors and a robust thermoplastic elastomer (TPE) jacket. Rated at 300V, this screened cable offers advanced high and low temperature performance and exceptional flexibility, being three times more flexible than ordinary PVC at extreme temperatures ranging from -50°C to 125°C.

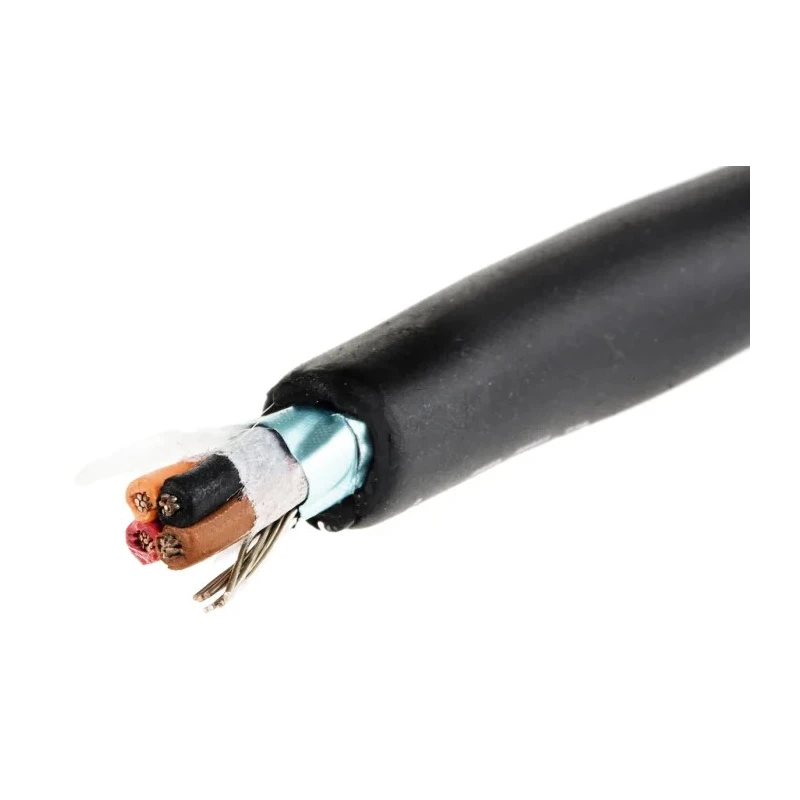

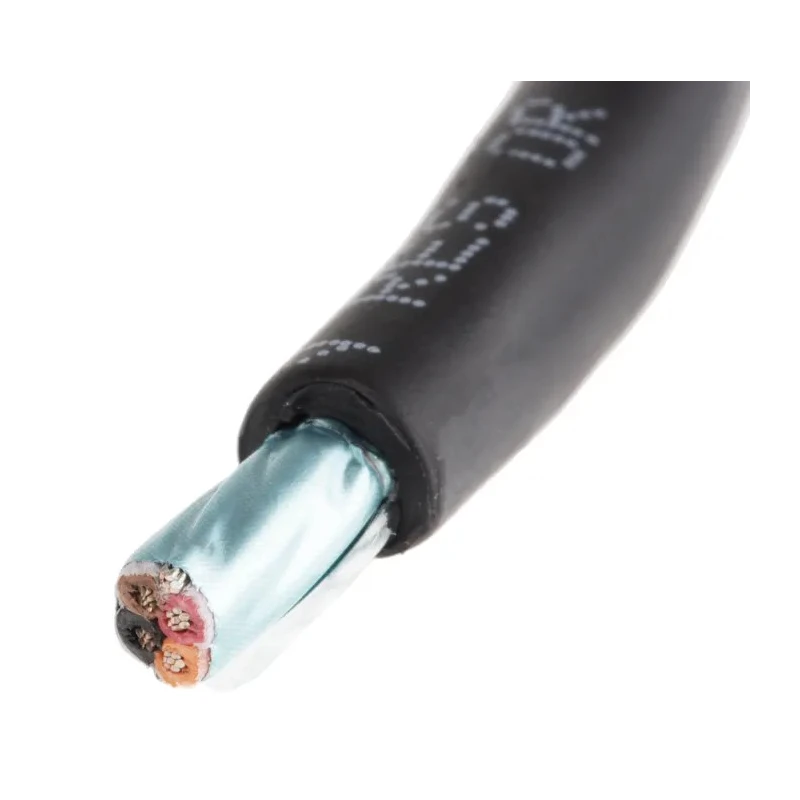

The cable jacket, colored black for easy identification, has a nominal diameter of 6.81 mm with a jacket thickness of 1.14 mm and insulation thickness of 0.41 mm. The stranding consists of 7 strands of 0.32 mm conductor strands, enhancing mechanical strength and flexibility. The screened foil shield effectively protects against electromagnetic interference.
Compliant with CE, CSA, and UL standards, and approved by the Pennsylvania Bureau for deep mining, this cable provides reliability for demanding environments including industrial automation, mining, petrochemical, renewable energy, paper manufacturing, and military applications.
Additional features include excellent resistance to oil, water, chemicals, and abrasion, along with ultraviolet light stability for outdoor use. The cable is not designed for continuous or high flex applications.
Recommended heat shrink tubing for installation are models FIT-400 and FIT-600. The cable facilitates safe and high-performance electrical control connections in a wide range of industrial and commercial systems.
Constructed with tin copper wire conductors for optimal conductivity. Jacket made of durable thermoplastic elastomer in black for enhanced flexibility and durability. Screened design provides protection against electromagnetic interference.
Operating temperature range from -50°C to 125°C suitable for extreme environments. Complies with CE, CSA, and UL standards for quality assurance. Cable diameter is 6.81 mm with 7 strands of 0.32 mm each strand. Recommended FIT heat shrink tubing models are FIT-400 and FIT-600.
Excellent resistance to oil, water, chemicals, abrasion, and ultraviolet light. Ideal for control applications in industrial, mining, paper, food and beverage, petrochemical, and military sectors.
This control cable is an excellent choice for various industrial automation, electrical equipment, and heavy-duty applications. Explore more products in our Control Cable category to find compatible accessories and alternatives.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this control cable is 125°C.
This model is rated for 300V.
It features 4 cores.
The conductors are made of tin copper wire, and the jacket is constructed from thermoplastic elastomer.
The nominal diameter of this cable is 6.81 mm.
The recommended heat shrink tubing models for installation are FIT-400 and FIT-600.
Yes, it has ultraviolet light stability, making it suitable for outdoor applications.
The minimum operating temperature is -50°C.
It complies with CE, CSA, and UL standards.
The conductors consist of 7 strands, each measuring 0.32 mm.
This cable is suitable for industrial automation, mining, petrochemical, renewable energy, and military applications.
The insulation thickness is 0.41 mm.
