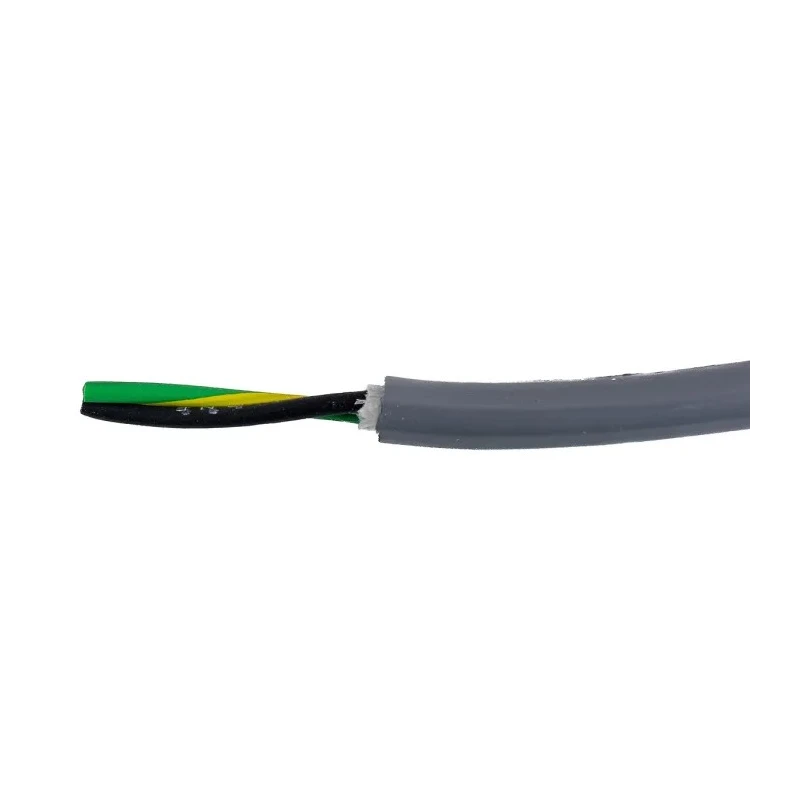

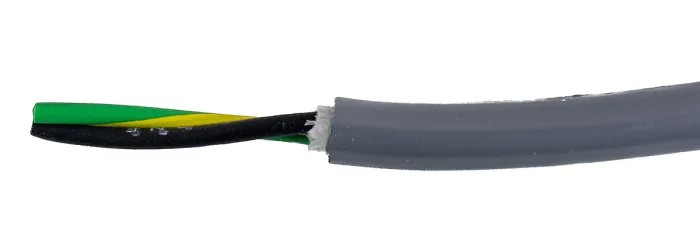

Alpha Wire Ecogen Ecoflex PUR Control Cable, 2 Cores, 0.5mm² 20 AWG, Unshielded, Grey Modified Polyphenylene 80020 SL005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Alpha Wire |
| Model | 80020 SL005 |
| Cable Length | 30m |
| Series | Ecogen Ecoflex PUR |
| Outside diameter | 4.52mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -50°C |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | UL, CSA, CE |
| Jacket Colour | Grey |
| Fire Behaviour | Halogen Free |
| American Wire Gauge | 20AWG |
| Screened/Unscreened | Unscreened |
| Number of Strands | 26 |
| Core Strands | 26 x 0.16mm |
| Size of Strands | 0.16mm |
| Cable CSA | 0.5mm² |
Key Features
- This cable is abrasion, UV, and oil resistant due to its polyurethane jacket and mPPE insulation.
- It operates reliably under extreme temperatures ranging from -50°C to 90°C.
- The cable features finely stranded tinned copper conductors enhancing flexibility and conductivity.
- The unshielded construction is ideal for applications in low noise environments.
- The cable jacket material is halogen free, environmentally friendly, and 100% recyclable.

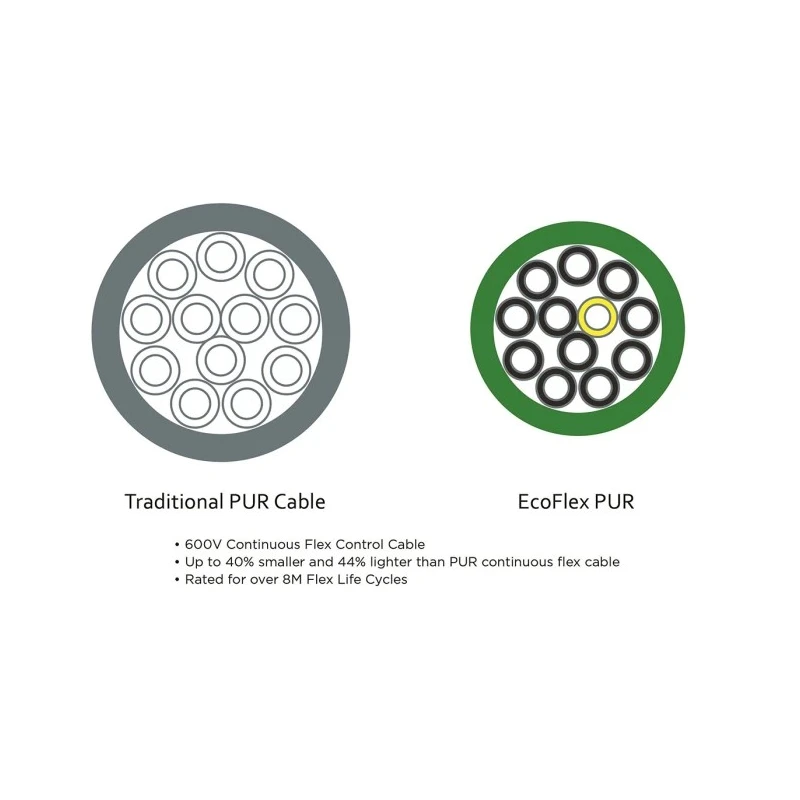

- It is smaller and lighter than equivalent PVC cables, improving installation and handling.
- Suitable for various industrial applications including machinery, robotics, automotive, and outdoor environments.
- The cable complies with UL, CSA, and CE standards.
Product Description
Alpha Wire 80020 SL005 Ecogen Ecoflex PUR Control Cable is a high-performance, unshielded control cable with 2 cores, each having a cross-sectional area of 0.5mm² (20 AWG). It features a tough grey modified polyphenylene ether (mPPE) jacket combined with a polyurethane outer sheath, delivering excellent abrasion resistance, UV protection, and oil resistance. The cable is finely stranded with tinned copper wires, ensuring flexibility and reliable electrical conductivity.
This cable is designed to withstand harsh industrial environments, operating efficiently at temperatures from -50°C up to 90°C. Its halogen-free jacket material makes it environmentally friendly and safe for installation in sensitive areas. Compared to conventional PVC cables, it is lighter and thinner, facilitating easier handling and installation without compromising durability.
The unshielded design is optimal for usage in low noise electrical environments, commonly found in machine tools, industrial machinery, outdoor machinery, robotics, automotive applications, medical equipment, and assembly production lines. This cable adheres to major safety and quality standards including UL, CSA, and CE certifications.
The Alpha Wire Ecoflex PUR cable's diameter is 4.52 mm, combining 26 fine strands of 0.16 mm diameter conductor strands per core. This construction ensures mechanical strength and flexibility, making it ideal for dynamic and static applications.
This cable is abrasion, UV, and oil resistant due to its polyurethane jacket and mPPE insulation. Features finely stranded tinned copper conductors for enhanced flexibility and conductivity. Rated for a voltage of 600 V with a temperature range of -50°C to 90°C.
Unshielded design suitable for low noise industrial environments. Halogen free and environmentally friendly jacket material, 100% recyclable. Smaller and lighter compared to conventional PVC control cables. Complies with UL, CSA, and CE standards for safety and quality.
Typical use cases include machine tools, outdoor applications, mining, medical, robotics, industrial and construction machinery, automotive industry, and assembly production lines.
Explore the range of Electrical Wires & Cables at EnvMart for more specialized industrial Control Cable solutions from top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for a voltage of 600V.
It operates efficiently at temperatures ranging from -50°C to 90°C.
The cable features a modified polyphenylene ether (mPPE) jacket and is constructed with finely stranded tinned copper conductors.
The outside diameter of the cable is 4.52 mm.
This control cable has 2 cores.
Each core has a cross-sectional area of 0.5mm² (20 AWG).
Yes, it is suitable for outdoor environments due to its abrasion, UV, and oil resistance.
It complies with UL, CSA, and CE standards.
The cable jacket is halogen-free, making it safer for installation in sensitive areas.
Flexibility is enhanced by the use of finely stranded tinned copper conductors.
It is suitable for various industrial applications including machinery, robotics, automotive, and medical equipment.
The cable length is 30 meters.
