Microchip MCP2221 USB to I2C UART Protocol Converter Breakout Module 12 MHz ADM00559

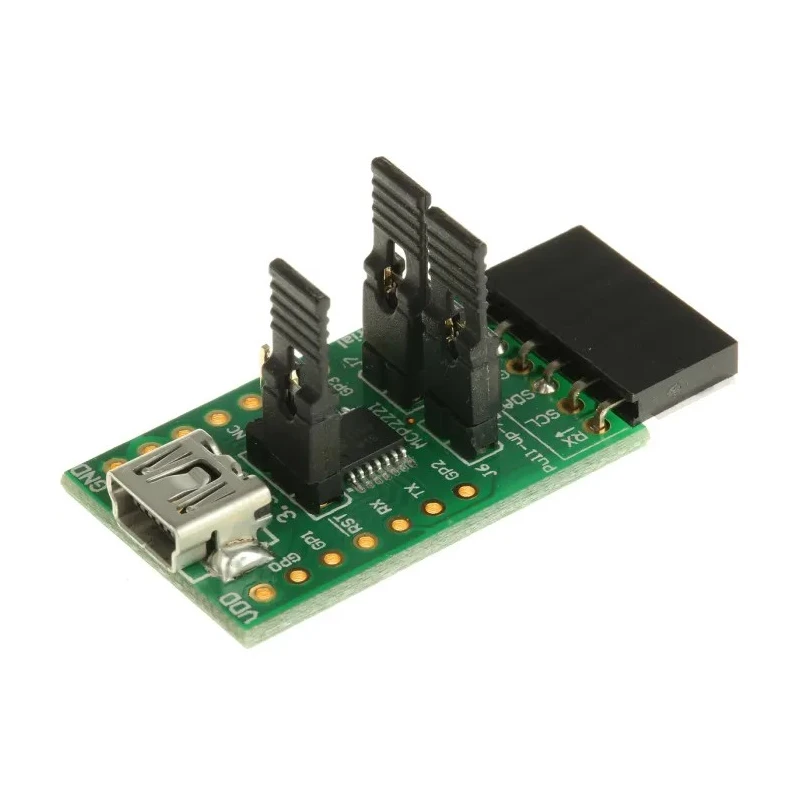

Microchip ADM00559 MCP2221 USB to I2C/UART Protocol Converter Breakout Module operates at a maximum frequency of 12 MHz and is designed to facilitate seamless communication between USB-enabled devices and I2C or UART interfaces. Employing CMOS technology provides efficient power usage, making it suitable for a wide range of industrial, laboratory, communication, and development applications.

This small form factor breakout board features two 7-pin DIP-style headers with 600mil spacing for easy hardware integration. Its four GP pins are highly configurable, supporting GPIO functionality, dedicated function pins, or alternate functional operation, providing flexibility for customized applications.

The breakout module incorporates jumper-selectable onboard pull-up resistors for I2C/SMBus and allows the VDD to be set to either 3.3V or 5V, enabling compatibility with diverse hardware systems. A mini USB connector facilitates convenient and robust connectivity while supplying up to 500mA to peripheral components.

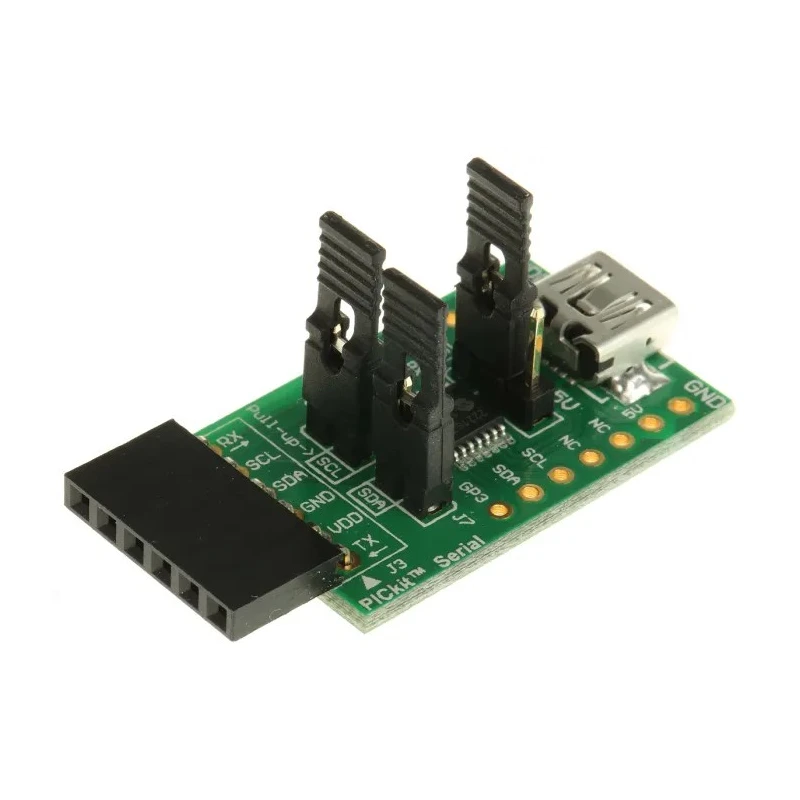

Additionally, the PCB features a PICkit serial analyser compatible header for enhanced debugging and protocol analysis, improving development efficiency. The product is USB 2.0 compliant, ensuring broad compatibility with modern systems.

Microchip provides a free DLL software package for Windows that allows in-depth device control, I/O management, and customized configuration. This software enhances the module's usability for development and testing operations.

Supports USB 2.0 standard for reliable connectivity. Features CMOS technology ensuring low power consumption. Compact breakout board with dual 7-pin headers and 600mil spacing. Includes jumper-selectable 3.3V or 5V VDD and onboard pull-up resistors for I2C/SMBus.

Equipped with PICkit serial analyser compatible header for advanced debugging. Mini USB interface simplifies device connection. Supplies up to 500mA for peripheral systems. Four GP pins configurable as GPIO, dedicated function, or alternate function pins.

Free Microchip DLL software available for custom device control and configuration.
