STMicroelectronics STEVAL X-NUCLEO-PLM01A1 Communication and Wireless Development Module for SM6T15CA STEVAL-XPLM01CPL

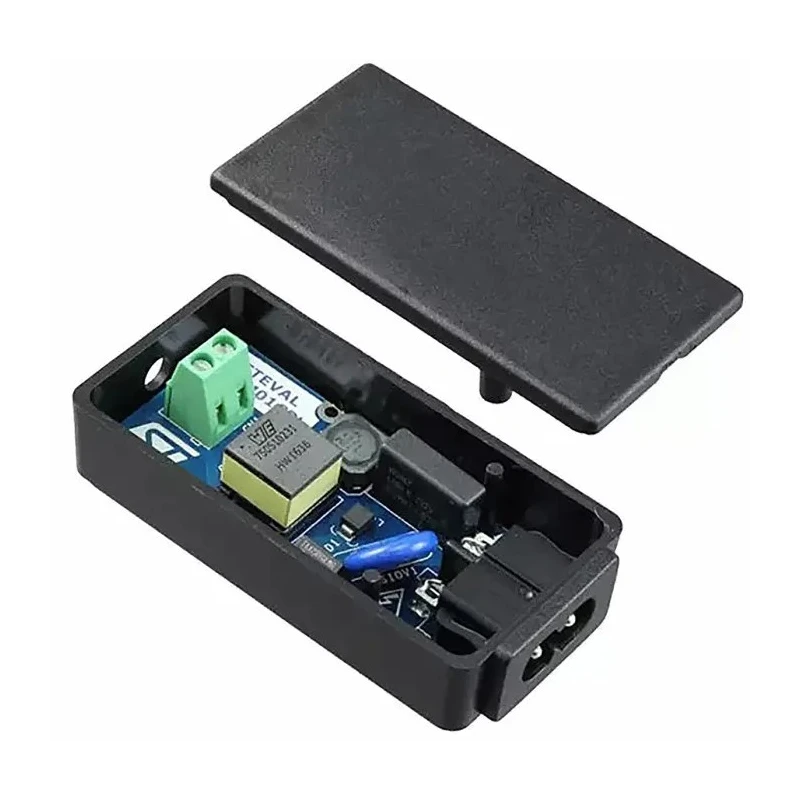

The STMicroelectronics STEVAL-XPLM01CPL is a specialized communication and wireless development module designed to facilitate power line communication (PLC) testing on AC power networks. It is engineered for laboratory use and industrial applications requiring precise PLC signal handling and measurement.

This module provides a simple two-wire connectivity interface compatible with any PLC transmitter or receiver, along with a standard 2-pin AC power cord connector featuring an 8-shaped female end. It enables seamless integration with lab instruments such as isolated probes for oscilloscopes and spectrum analyzers, or signal injection from arbitrary function generators.

The STEVAL-XPLM01CPL includes a complete AC coupling circuit, which makes it suitable for use with a wide range of PLC solutions, ensuring accurate signal transmission and reception. To extend its AC coupling functionalities, it can be paired with the X-NUCLEO-PLM01A1 module.

Tuned specifically for the CENELEC B to D frequency bands, the module offers isolation and protection features that guarantee safe operation during testing in potentially hazardous electrical environments. This compliance with standards and focus on safety is critical for development, testing, and diagnostic processes in communication and wireless systems.

This module is RoHS compliant, underscoring its environmental compliance and suitability for modern electronic development and testing setups. Includes two-wire connectivity for any PLC transmitter or receiver. Standard 2-pin AC plug with 8-shaped female connector.

Suitable for use with oscilloscopes, spectrum analyzers, and function generators. Complete AC coupling circuit for PLC solutions. Compatible with X-NUCLEO-PLM01A1 for full AC coupling capabilities. Tuned for CENELEC B to D bands.

Includes isolation and protections for safe use. RoHS compliant for environmental safety.

This Communication Module supports various industrial, laboratory, and development tool applications, particularly in power line communication testing and wireless communication system development. It is an essential component for engineers and technicians working in communication technology sectors requiring robust and safe signal testing on AC power networks.
