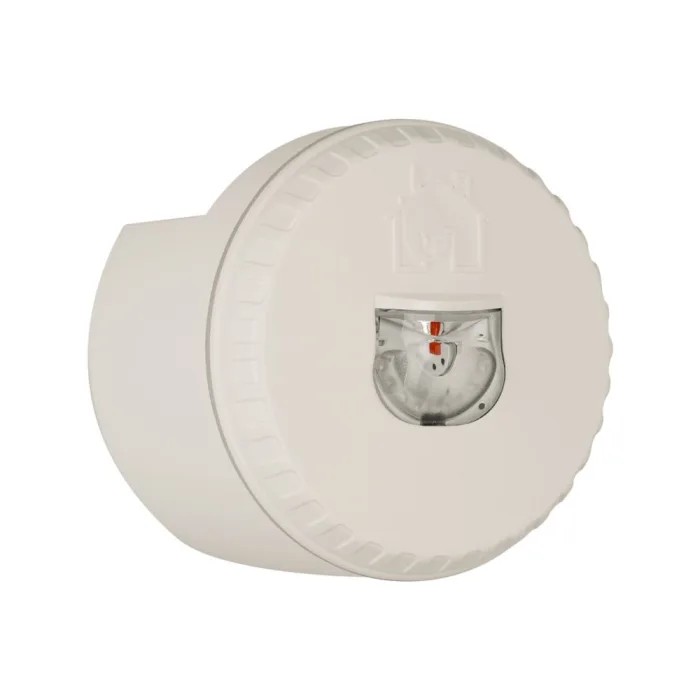

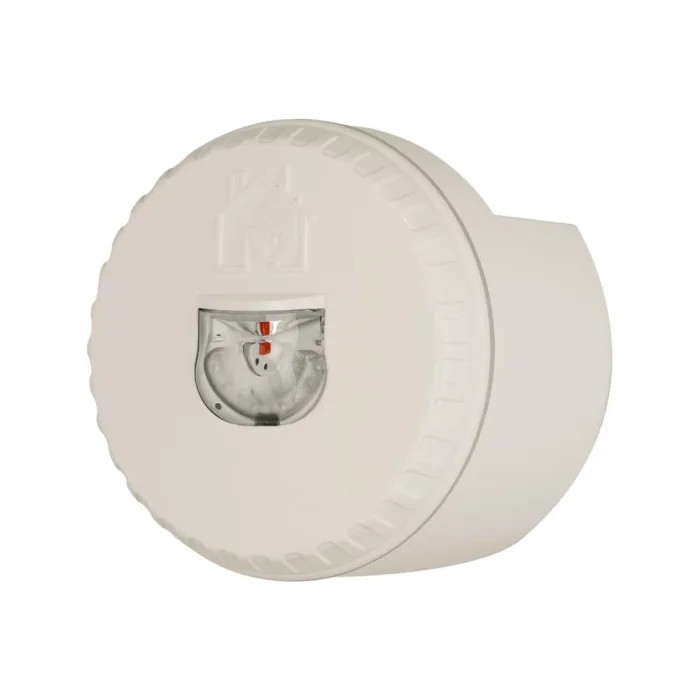

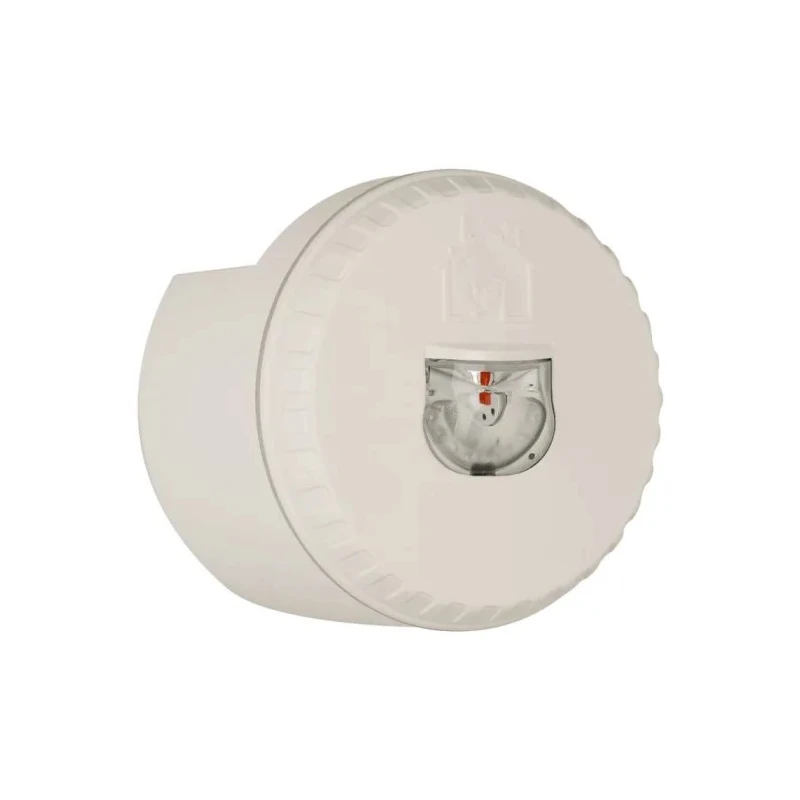

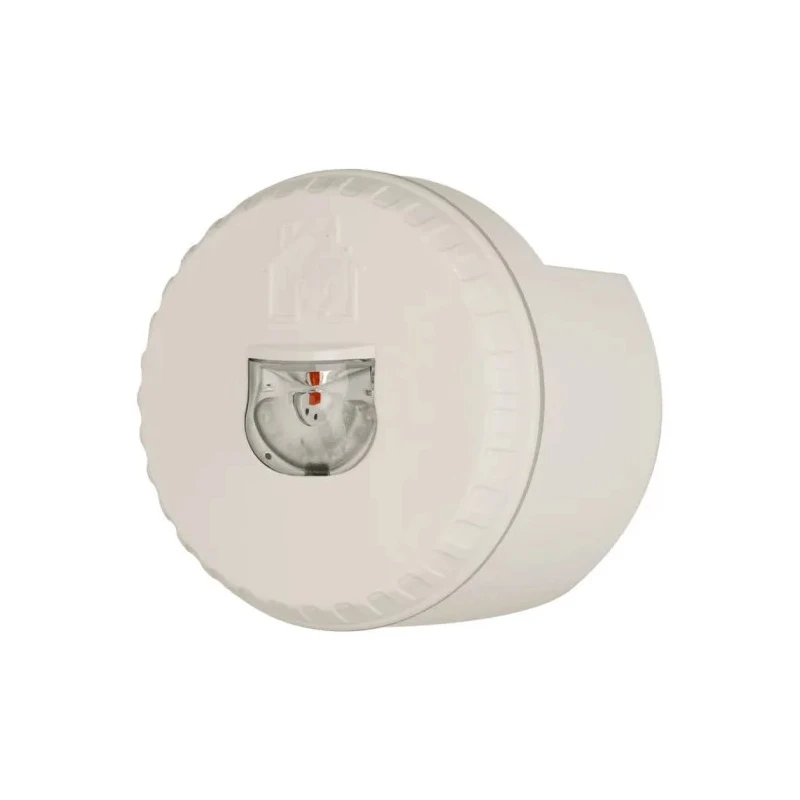

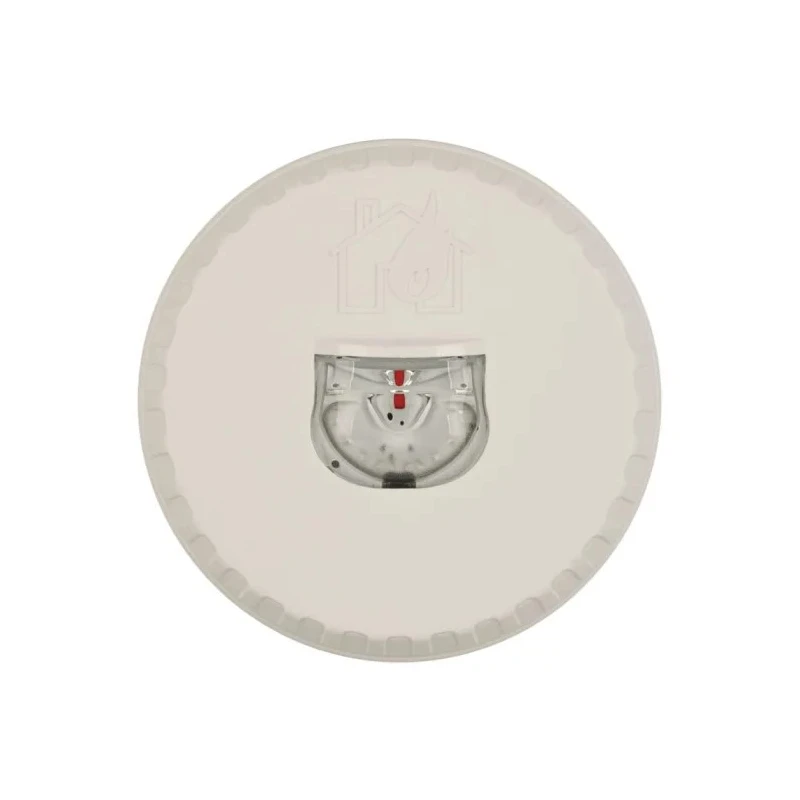

Eaton Solista LX Wall Series Red Beacon VAD 60V DC Flashing LED Bulb IP33C IP65 812017FULL-0259X

Eaton 812017FULL-0259X Solista LX Wall Series Red Beacon VAD is a durable and reliable flashing LED beacon designed for clear and visible safety signaling in diverse industrial, residential, and commercial environments. Featuring a red lens and white ABS housing, this wall-mounted device delivers a bright, flashing light effect that attracts immediate attention in emergency situations. It is engineered to operate efficiently on a DC voltage supply ranging from 9 to 60 V DC, with low current consumption of 25mA, ensuring energy efficiency and cost-effectiveness.

The beacon meets stringent EN 54-23 standards, making it a trusted choice for fire alarm and safety signaling systems. It carries IP33C and IP65 ratings, providing robust protection against dust infiltration and water ingress, allowing indoor and outdoor installations without concern over environmental factors. Operating within a wide temperature range from -25°C to +70°C, this Eaton beacon is suitable for use in harsh climatic conditions, ensuring reliable performance year-round.

With a compact form factor, featuring a 66mm height and 90mm base diameter, the Solista LX Wall Series beacon is easy to install on walls, providing broad coverage where safety signals are critical. The flashing light effect supports adjustable flashing rates down to 0.5Hz, which helps in managing power consumption effectively. The lamp is included with the device, providing a ready-to-use signaling solution.

Features a flashing red lens for clear emergency signaling. Energy-efficient LED technology with low current consumption of 25mA. White ABS housing designed for wall mounting installation. Operates on 9 to 60 V DC supply voltage for flexible application.

High ingress protection with IP33C and IP65 ratings for indoor/outdoor use. Compliance with EN 54-23 safety standards. Wide temperature operating range from -25°C to +70°C. Compact dimensions: 66mm height, 90mm base diameter.

Adjustable flashing rate down to 0.5Hz to optimize energy usage.

This Eaton Solista LX Wall Series Red Beacon VAD is ideal for signaling and alerting applications across industrial automation, commercial buildings, and residential safety systems. Its robust design and certification make it a dependable component in safety and alarm installations. Explore more in our Automation Signalling Beacon category and find compatible products and accessories for your system requirements.
